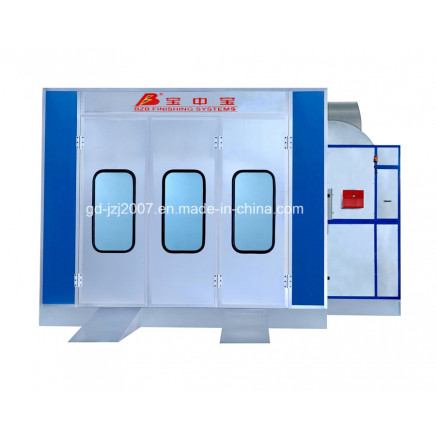

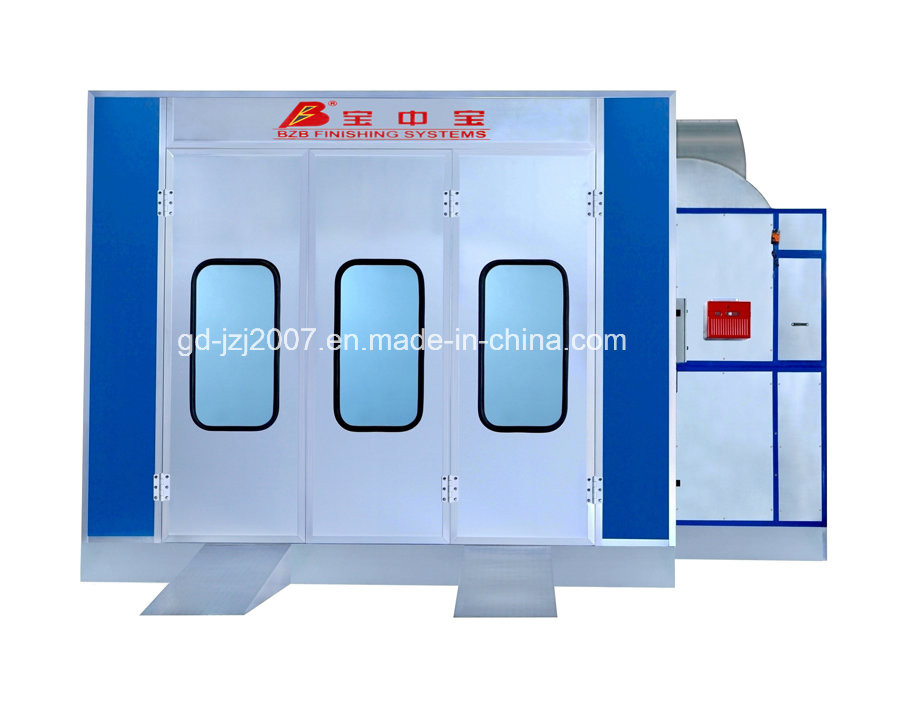

High Quality Good Price Car Spray Booth

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 set

Trade Terms:FOB

Payment Terms:T/T

Trademark:BZB

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:BZB-8100A

Certification:CE

Condition:New

Color:as Require

Voltage:as Require

Export Markets:Global

Additional Info.

Trademark:BZB

Packing:Polyfoam and Carton

Standard:CE ISO9001: 2000

Origin:Guangzhou, China

HS Code:84198990

Production Capacity:500sets/Year

Product Description

Please feel free to tell us your detailed requirements of the booths, then we can design and manufacture it for you. We can totally undertake the design and manufacturing of any booth according to your specific requirements.
The below is our auto spray booth BZB-8100 model, it is very competive price and nice design. For more detailed information, please free to send us inquiries.

BZB-8100A MODEL
External size(mm)		7000×5350×3430
Internal size(mm)		6900×4000×2800
Front door		3000(W)×2700(H)
Total power		7.5kw
Cabin System	1.Wallboard	EPS (epispastics polystyrene)Colorful Steel Skin Boards,50mm Thick, Compound Construction, Anti-flame and Heat-Insulation,Handiwork Door,Galvanized Steel Roof Panel
	2.Basement:	Two Grid& Three Embossed Plate, Galvanized Steel Sheet Construction,Two Ramps made of embossed plate,each 600mm wide.
Air Circulation System	Inlet Fan	Capacity: 22000m 3 /h
		Power: 5.5kw/set
		Quantity: 1set
	Air Volume: 22000m 3 /h; Air Speed: 0.30m/h
Air Purification system	Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 ?m. Ceiling Filter Capture Granules Bigger than 5?m. The floor filter is fiberglass filter.The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. TSP?1.4mg/m3
Heating System	1.Burner	Italy Riello Brand, G20 Diesel Burner, 180000Kcal/h.
	2.Heat Energy Converters	Stainless Steel, Argon Arc Welding. The Heat Exchange Rare 85%
	Max Temp:80 centi degree,Heating Time:4-6min(20-60centi degree), Fuel Consumption:4-6kg/vehicle,10N Damp Motor
Lighting System	Ceiling Light: 32 pcs 36w Philips Lamp;800Lux
Electronic Controlling System	Micro Computer Programe Controlling, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm
Environmental system	optional environmental cabin
