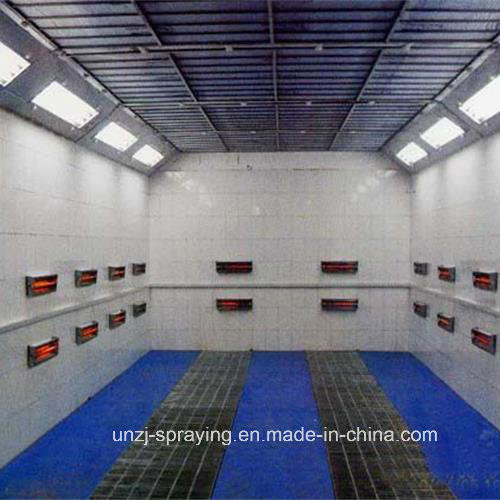

High Quality Desks Baking Room for Sale

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 6500.0-10000.0/ Piece

Price:$6500.0 - $10000.0 / Piece

Trade Terms: FOB

Payment Terms: T/T

Price Valid Time:From Jun 06, 2015 To Aug 08, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:UNZJ

Type:Powder Coating Booth

Certification:CE

Substrate:Steel and Aluminum

Brand:Unzj

Coating:Powder Coating

Airflow Direction:Full Down Draft

Heating Mode:Diesel

Paint Mist Treatment:Dry-type

Condition:New

Color:Blue,Orange ,Ivory-White

Full Load Indoors Air Speed(M/S):0.3

The Highest Working Temperature:80

Heat Exchange Rate:98%

Export Markets:Global

Additional Info.

Trademark:UNZJ

Packing:Export Container /Pallet /Disassembly with Carton

Standard:CE

Origin:Shandong Qingdao

HS Code:8417809090

Production Capacity:60sets/Month

Product Description

Baking Room configuration table voltage380 triphase50HZ
Name	Unit	Standard	Demand
outside dimensions	mm	7050x5250x3300mm
inside dimensions	mm	6900x3900x2600mm
Note:There are differences between the outside dimensions and inside dimensions,The internal size shall prevail.
front door size	1piece	3000x2700mm	Three fold, with glass observation window, with explosion-proof door lock. All round aluminum alloy covered edge.
side door size	2piece	800x2000mm	With glass observation window, with explosion-proof doorknob. Aluminum alloy covered edge.
EPSinsulation board	110	thickness75mm	EPS flame retardant insulation board, plate single-layer thickness of 0.4 mm, foam density of 10 kg/m3.
Static pressure layer at the top of the scaffold			electrogalvanizing
Static pressure layer filter cotton net			spraying plastics,white
bottom bracket	1set	10#u-bar	Channel steel stents, six columns and longitudinal support, four column horizontal support, height is 300 mm
baseplate(galvanize)	30	steel grating4mm	adopt standard of 30�4mm,30�3mm,lane load-bearing is 4T
pressure fan(centrifugal)	2sets	4KW(380V/50Hz,triphase)	blast capacity:blowing-in 25000M3/H,centrifugal fan.
induced draft fan(centrifugal)	1set	5.5KW(380V/50Hz,triphase)	blast capacity:blowing-in 15000M3/H,centrifugal fan.
burner	1set	RIELLO G10	RIELLO 40Gseries,with heating systerm.
heating power exchanger	1set		1.0mmmake of stainless steel, diameter of chimney 150mm.
heat tank	1set		1.0make of color plate(white)
toplight	8groups	Each group of four light tubes, each 40 w	Embedded with transparent glass (easy disassembly type);Foshan integration tubes
Waist light	8groups	Each group of one light tubes, each 40 w	Embedded with transparent glass (easy disassembly type);Foshan integration tubes
power-driven ventilation door	1set
electric cabinet	1set	380V/50Hz,triphase electric	Internal delixi electric components, the electric leakage protection device
Filter Cotton	1set	Three-dimensional spray adhesive top cotton G600,bottom cotton, cotton tuyere
boarding platform	A pair	1800(lenght)x1000(width)mm	3mm checkered plate,White high temperature coating
Note:The English instruction, as well as the equipment installation CD

Cabinet SysWall panel50mm thick EPS (epispastics polystyrene ) with 0.376mm colorful steel coating; External and interior surface were coated with transparent anti-static coating. All panels are equipped with electrical connectors.
Roof4pcs stainless steel bracket frame, high-quality filter cloth.
Galvanized plate roof
BasementGalvanized steel sheet construction, three rows grid plate & two flower pattern plate, outside ramp
Ventilation SystemAir inlet sysOne 7.5kw direct drive blower. The air gate uses "ARTAC " pneumatic air vale control unit.
Air discharge sysone 2.2kw centrifugal blower, 2m straight duct, 1m elbow duct
Heating SysBurnerItaly-made Riello Burner G10
Heat convertorStainless steel, argon arc welding, the heat exchange rate 98%
Light sysCeiling light: 32pcs 36w philips lamp: 800Lux
Automatic ControllerSpray&baking switch, light switch, time and temperature controller, power /buner/blower/motor indicator

1: The whole spray booth is assembled type structure.The body use lash plug-in type thermal insulation coating wall plate, sealing, heat preservation performance is good.The room body side has work door , staff in and out of convenient; aluminium alloy door, door central equipped with observation window, can observe the room.Choose low noise and high air volume air conditioning fan and secure painting effect is perfect;High quality stainless steel heat exchanger, in high thermal efficiency, long service life.

2: The fan filter after the air with strainer ,then put it into and send the top of room body, after filter cotton again into the barn, the air cleaner can reach more than 98%, and sent into the air with certain pressure, can form a constant flow around the perimeter of the car to remove excess paint.

3: The throttle to the position of the lacquer that bake modulation, hot air circulation, raised to reserve the drying temperature curing barn temperature (55-80 �C).After the completion of the drying, control system can automatically make the burner to stop working.
