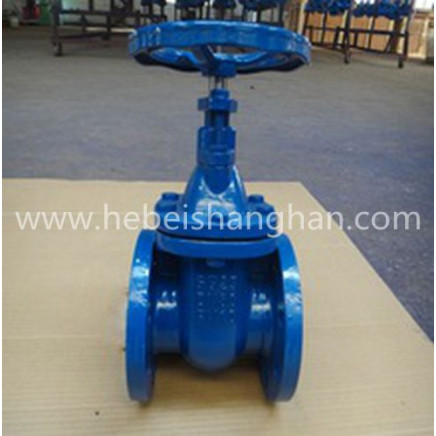

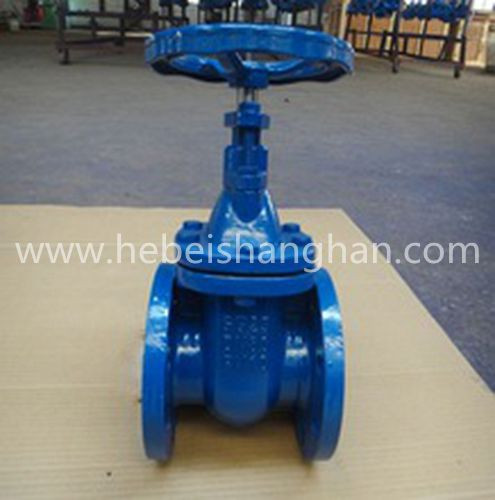

High Quality Cast Iron Rising Stem Gate Valve

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
10.0	US $ 1.0-100000.0/ Piece

Price:$1.0 - $100000.0 / Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, D/P, Western Union

Price Valid Time:From Aug 10, 2015 To Nov 10, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:HBSH020

Type:Direct-acting

Material:Cast Iron

Connection Form:Flange

Pressure:Low Pressure

Actuator:Pneumatic

Seal Surface:Wedge Gate Valve

Usage:Flow Control

Application:Industrial Usage, Water Industrial Usage

Temperature of Media:Low Temperature

Export Markets:Global

Additional Info.

Trademark:HBSH

Packing:Wooden Case \ Plywood Case or as Your Requirement

Standard:API, GB, GOST, ISO

Origin:Hebei, China(Mainland)

HS Code:8481804090

Production Capacity:5000sets/Month

Product Description

Specifications
Cast iron rising stem gate valve ANSI-125
1.CE certificated
2.Manufacturer
3.ANSI-125/150,DIN3302,JIS 10K

1.The Reasons to Choose SEGA Valve
2. Regional Sales: We provide specialized sales service refers to different kind of region all over the world. Each sales team member is good at the local language and well experienced to the responsible market. For example: Russian, German, Spanish, Japanese, etc.
3. Low MOQ: Our factory owns the casting company by itself. We are always ready for providing the sample and producing some small orders, in order to meet the business market well.
4. OEM Accepted: We can make the products with the client's demand standard or the custom requirement.
2.Standards and Technical Specifications
Design Standards: ANSI-125/150(Class150);DIN PN10/PN16;JIS-10K/16K,BS5163.
log splitter parts ANSI-125/150 Components

1	Body	Cast iron or Ductile iron
2	Seatring	Cast bronze or stainless steel
3	Disc	Cast iron or Ductile iron
4	Bonnet	Cast iron or Ductile iron
5	Packing	Not asbestos
6	Gland	Ductile iron
7	Stem	Stainless steel
8	Handwheel	Cast iron or Ductile iron

Dimensions

DN	40	50	65	80	100	125	150	200	250	300	350	400	450	500
	1.5"	2"	2.5"	3"	4"	5"	6"	8"	10"	12"	14"	16"	18"	20"
L	165	178	190	203	229	254	267	292	330	356	381	406	432	457
H	254	267	279	305	406	457	559	711	889	1117	1560	1780	1950	2110
D	127	152	178	191	229
