Description

Details

Basic Info.

Model NO.:BZB-AF Spray Booth

Certification:CE

Condition:New

Color:as Require

Voltage:as Require

Export Markets:Africa

Additional Info.

Trademark:BZB

Packing:Polyfoam and Carton

Standard:CE ISO9001: 2000

Origin:Guangzhou, China

HS Code:84198990

Production Capacity:500per/Year

Product Description

BZB-AF Spray booth 6.9m*4m*2.65m

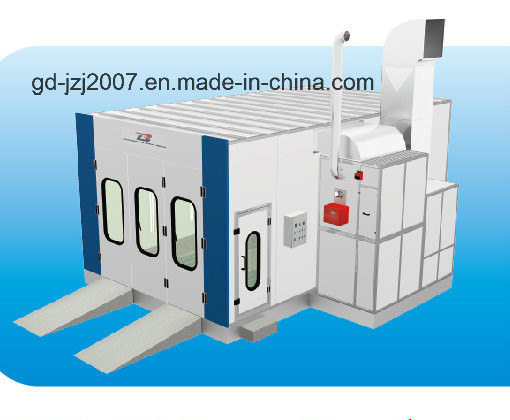

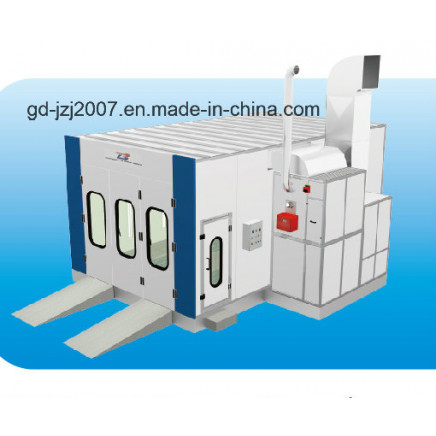

High Quality Car Spray Paint Baking Booth

Outside dimension:7000×5560×3430mm(L×W×H);
Inside dimension: 6900×4000×2650mm(L×W×H);
Front door dimension: 3000×2600mm(W×H);
Working door dimension: 800×2000mm(W×H);
Cabin system:
1) Wall panel: 50mm thick flame-resistant and heat-preserving EPS board; 0.426 thick colored steel.
Roof panel: galvanized sheet;
2) Basement: steel structure base; two line grilles, three line diamond plates; height is 280mm; 600mm width two ramps;
Air circulation system:

Inhaling Ventilator	Model: YDW-4.5AL	Exhaust Ventilator	Model: YDW-4.5L
	Blower Capacity: 22000m³/h		Blower Capacity: 14000m³/h
	Pressure: 800Pa		Pressure: 800Pa
	Rolling Speed: 900rpm		Rolling Speed: 900rpm
	Power: 3kw		Power: 4kw
	Quantity: 2sets		Quantity: 1sets

One set automatic damper, 10N actuator
Generator: back upper intake air,back up extract air,quadrate steel frame,coated steel;
Air purification system: Pre-filter, high efficiency filter (ceiling filter), floor filter;
Heat system: stainless steel SUS304 heat exchanger, RIELLO G20 diesel burner one stage, heating capacity is 180000Kcal/h, electric damper from spraying to baking cycle; oil consumption 4~6L/set; the heating time is 5~7 minutes; Max heating temperature:80degree;
Lighting system:?1000Lux
Ceiling Lights: 8Groupsx4Pcs=32Pcs x36W ; Side lights: 4Groupsx4Pcs=16pcs x 36W
Glass: all glass is clear tempered glass.
Control box: Micro-computer programmed controlling, Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, temperature controller, emergency stop, breakdown alarm;
Total power: 15KW

Drawing:
High Quality Car Spray Paint Baking Booth

Spare parts:

a) Steel metal front door( with tempered glass view indows)
High Quality Car Spray Paint Baking Booth

b)     New style aluminum hinge

c)     New door plug

d)     Belimo brand actuator

e)      Heating exchanger ( SUS304 galvanized steel)

f)      Centrifuge fans
