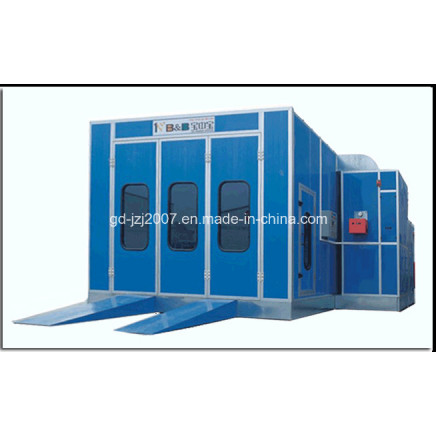

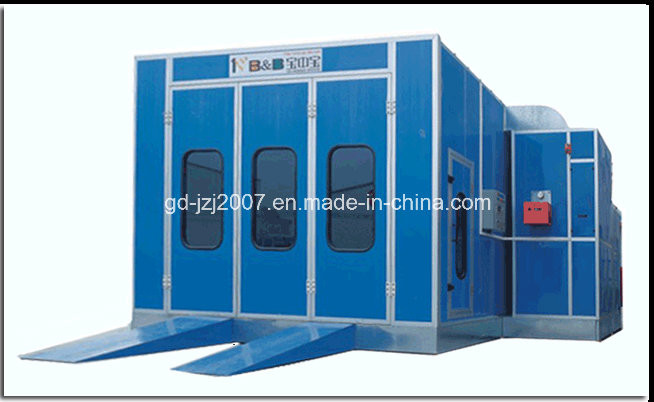

High Quality Car Paint Chamber

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 set

Trade Terms:FOB

Payment Terms:T/T

Trademark:BZB

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:BZB-8400

Type:Powder Coating Booth

Certification:CE

Substrate:Steel

Brand:Bzb

Coating:Painting

Airflow Direction:Fully Undershot-type

Heating Mode:Diesel

Paint Mist Treatment:Dry-type

Condition:New

Color:as Require

Voltage:as Require

Export Markets:Global

Additional Info.

Trademark:BZB

Packing:Polyfoam and Carton

Standard:CE ISO9001: 2000

Origin:Guangzhou, China

HS Code:84198990

Production Capacity:500sets/Year

Product Description

CE approved car paint chamber:
Features:
1. For car paint/baking.
2. With large air circulation.
3. Toughened glass windows on the wall of the cabin.

Below please kindly find the specification of BZB-8400 car paint chamber; This is a very popular model among our customers oversea.
Specification:

Inner Size: 6.9x4× 2.65m
1. 50mm EPS heat-insulated wall panel and galvanized steel plate for roof panel
2. Air-inlet fan: 2x4kw Blowing capability: 24000m3/h
4. Air exhaust fan: 1*5.5KW, blowing capacity: 15000m3/h.
5. Micro computer control system
6. Lighting: 32piecesx36W ceiling lights, 16piecesx36W side lights.
7. Burner: Riello G20, 180000kcal/h.

BZB 8400 for water-based paint
External Size (mm)	7000x5560x3430
Internal Size (mm)				6900x4000x2800
Front Door				3000(W)×2700(H)
Total Power	21kw
Cabin System	1.Wallboard	EPS (epispastics polystyrene)Colorful Steel Skin Boards,50mm Thick, Tongue & Groove Style,Compound Construction.Anti-flame and Heat-Insulation Galvabized Roof Panel


	2.Basement	Galvanized Steel Sheet and Square Steel Pipe assembling, Two Rows Grid & Three Embossed Plate

	3.Ramp	Three Embossed Steel Plates,each 900mm wide
Air Intake and Exhaust System

	Inhaling Ventilator		Model: YDW 4.5L1	Exhaust Ventilator	Model: YDW 5.6S
			Blower capacity: 12000m 3 /h		Blower capacity:15000m 3 /h
			Pressure: 815Pa		Pressure: 810Pa
			Rolling speed: 900rpm		Rolling speed: 900rpm
			Power: 4kw		Power: 5.5kw
			Quantity: 2 sets		Quantity: 1set

	Air Volume: 24000m 3 /h; Air Speed: 0.35m/s
Air Purification System	Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 ?m. Ceiling Filter imported from Holland can Capture Granules Bigger than 4?m. The floor filter is Multi-Layer Fiberglasss Filter imported from Italy.The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. Air Pressure Balance Gauge, TSP?1.4mg/m 3







Heating System	1.Burner	Italy Riello Brand,G20 Diesel Burner, 180000Kcal/h, 10N Damp Motorner, 180000Kcal/h, 10N Damp Motor


	2.Heat Energy Converters	Stainless Steel, Argon Arc Welding, The Heat Exchange Rate 85%


	Max Temp:80centi degree, Heating Time: 4-6min(20-60 centi dgree), Fuel Consumption: 4-5kg/vehicle

Light System	Ceiling Light: 24 pcs 36w Philips Lamp; Bottom Light: 16 pcs 36w Philips Lamp, 900 Lux


Electronic controlling system	Micro-Computer Programme Controlling, Spray & Baking Switch, Light Switch,Emergency Stop, Breakdown Alarm

Environmental conservation System	active carbon filter,the outlet of exhaust gas comforms to GB16297-1996 National Standard.
