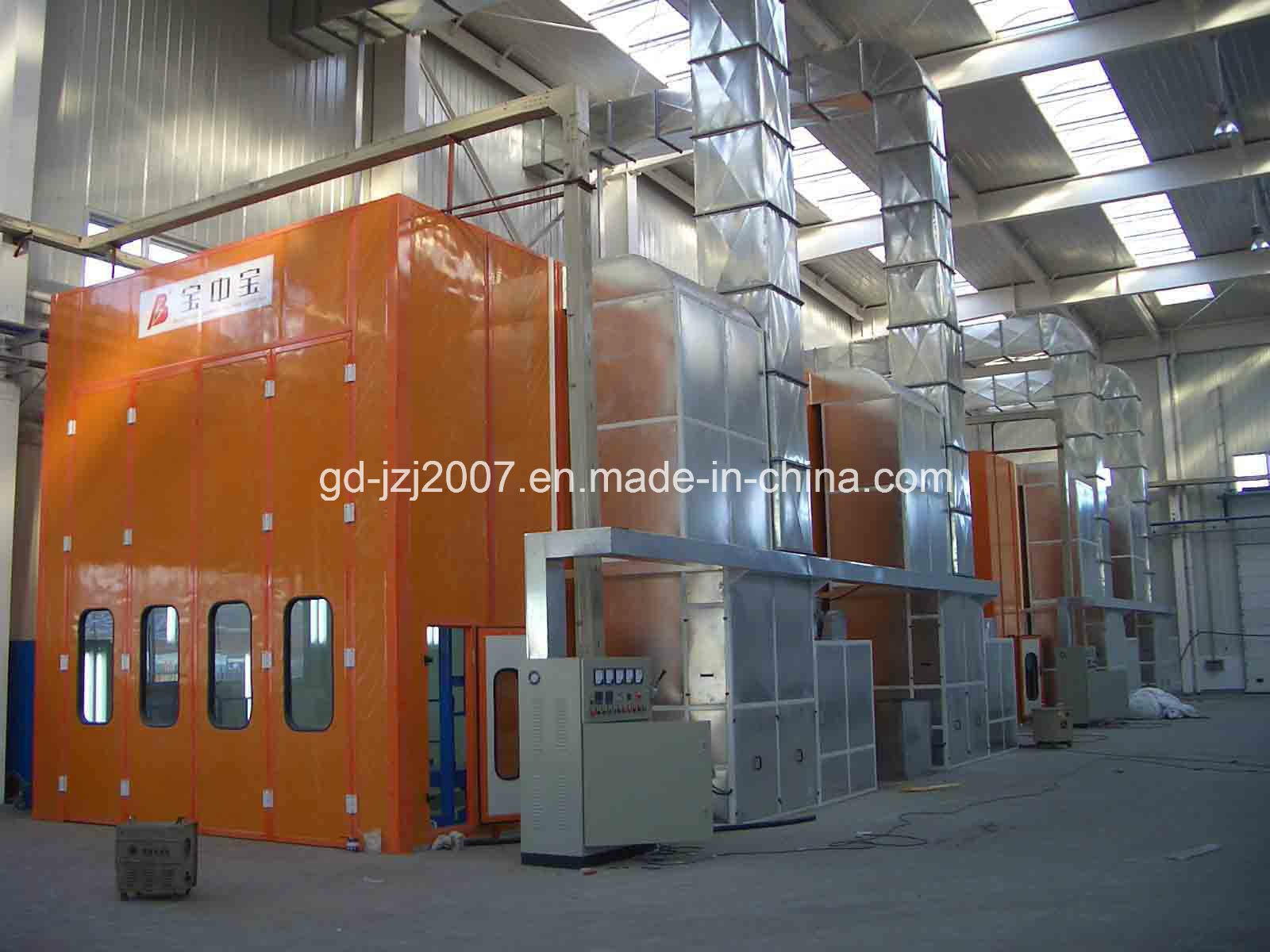

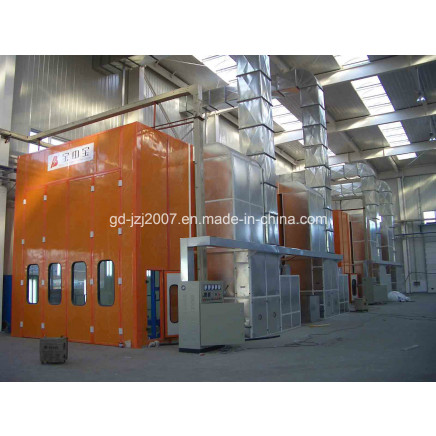

High Quality Bus Coating Booth

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 set

Trade Terms:FOB

Payment Terms:T/T

Trademark:BZB

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:Customized

Type:Powder Coating Booth

Certification:CE

Substrate:Steel

Brand:Bzb

Coating:Painting

Airflow Direction:Fully Undershot-type

Heating Mode:Diesel

Paint Mist Treatment:Dry-type

Condition:New

Function:Anti-Rust

Color:as Require

Voltage:as Require

Export Markets:Global

Additional Info.

Trademark:BZB

Packing:Polyfoam and Carton

Standard:CE ISO9001: 2000

Origin:Guangzhou, China

HS Code:84198990

Production Capacity:500sets/Year

Product Description

Professional bus spray booth manufacturer in China: Heat-insulted wall panel, smooth ventilation system, long life span.

Please feel free to tell us your detailed requirements of the booths, then we can design and manufacture it for you. We can totally undertake the design and manufacturing of any booth according to your specific requirements.

BZB Bus paint booth Quotation
Specification
1) Outside dimension: 15156*6956*5800(L*W*H);

2) Inside dimension: 15000*5000*5000mm(L*W*H);

3) Basement: Two rows of pits in the ground for exhaust air, dimension of each pits: 13850*760mm(L*W), above with galvanized grilles made by twisted steel and flat bar

4) Main door: Folding door, 4-fold(4 leaf), 4000*4500mm(W*H)

5)Escape door: 2 units, 800*2000mm(L*H)

6) Room Body: Side panel: 75 mm, and insulation is EPS panel, 0.5mm double skinned sheet; Roof panel: 50mm thick EPS heat preservation panel, 0.476mm color skinned sheet; Profiled bar beams in the roof to strength the room body.

7) Lighting: Ceiling Lights: 18Groups*4PCS=72PCS *36W, Philip brand, with electronic ballasts; Side Lights: 22Groupsx2PCS=44PCS x36W; Philip brand, with electronic ballasts, vertically set, up and down interleaving installation;

8) Glass: All glass is toughened glass;

9) Generator: Side upper intake air, back upper extract air; Quadrate steel frame, outside is coated steel, inside is galvanized steel, filled with heat preservation material in the middle.

10) Intake and exhaust air system: Intake fan: 4*5.5kw double-intake centrifugal fan for intake air, model: YDW5.6S, 5.5KW, air capacity: 17530m3/h for each fan
2. Extract fan: 2*11KW double-intake certrifugal fan for exhaust air, model: 4-8.2-6.3E, air capacity: 34000m3/h; Equiped manual dampers for exhaust air.

11) Heating system: 2 units RIELLO RG5S Oil burner(two stage), heating capacity is 260000Kcal/h/per unit, stainless steel heating exchanger, 2 PCS electric damper from spraying to baking cycle, 20N actuator;

12) Filtering system: Pre-filter, high efficiency filter (ceiling filter), exhaust fiberglass filter( floor filter), active carbon filter;

13) Control box: Spraying, risen-temperature spraying, baking temperature, power supply switch, time setting, lighting switch, hour meter, pressure gauge, emergency stop, failure alarm, temperature control meter.
