High Quality Auto Engine Part Mitsubishi 6g75 Engine Valve

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

High Quality Auto Engine Part Mitsubishi 6g75 Engine Valve

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 1.0-2000.0/ Piece

Price:$1.0 - $2000.0 / Piece

Trade Terms: FOB, CFR, CIF, DDP, EXW

Payment Terms: L/C, T/T, Western Union

Price Valid Time:From Jul 25, 2015 To Oct 25, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:SHEV01

Type:Straight-through

Material:Carbon Steel

Connection Form:Inside Thread

Pressure:Low Pressure

Actuator:Spurgear

Seal Surface:2Cr13

Standard:DIN

Application:Industrial Usage, Water Industrial Usage

Export Markets:Global

Additional Info.

Trademark:SHANGHAN or by your Brand

Packing:Braid Bag, Container, Wooden Case

Standard:DIN/API

Origin:Hebei, China

HS Code:8481804090

Production Capacity:3000 PCS Per Month

Product Description

High quality auto engine part Mitsubishi 6g75 engine valve
Specification
Factory Quality Certficated ISO9001:14001
Free sample
Delivery on time
OEM/Your logo avaliable

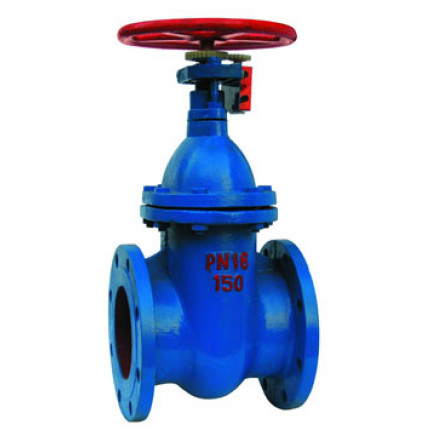

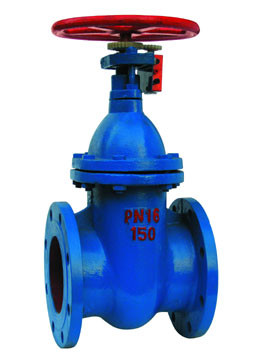

Angle Valve
Standard or Nonstandard:	Standard	Structure:	Gate valves	Pressure:	Low
Power:	Manual	Material:	Casting	Temperature of medium	Medium
Media:	Base	Port size:	DN50-DN600	Place of origin:	Hebei,China
Model number:	Z41H-16C	Brand Name:	SHANGHAN	Nominal pressure(Mpa)	1.6
Testing pressure strength(water)(Mpa)	2.4	Testing pressure enclose(water)(Mpa)	1.76	Suitable medium	Water,oil,vapor
Suitable temperature	?425°C	Color:	Grey,silver,white etc
Suitable market	Russia Ukraine Belarus Uzbekistan Tajikistan
Packing:	Woven bags wooden cases containers
Delivery time	Based on quantity,usually 7-20 days
MOQ:1PCS	1PCS

Product Function and Specification of Angle Valve
Type	Nominal pressure(Mpa)	Test pressure(Mpa)		Suitable temperature(°C)	Suitable medium
		Strength(water)	Enclose(water)
Z41H-16C	1.6	2.4	1.76	?425	Water,oil,vapor

Product Outline & Connecting Messurement of Angle Valve
Type	Nominal diameter DN(mm)	Measurement(mm)									Reference weight(KG)
Type	Nominal diameter DN(mm)	L	D	D1	D2	b-f	Z×d	H	H1	D0	Reference weight(KG)
Z41H-16C	50	180	160	125	100	16-3	4×18	285	340	180	12.7
	80	210	195	160	133	18-3	4×18	337	419	215	20.5
	100	230	215	180	158	20-3	8×18	383	486	245	27
	150	280	280	240	212	24-3	8×22	522	665	275	52
	200	330	335	295	268	26-3	12×22	647	836	300	80
	250	450	405	355	320	28-2	12×26	815	1090	450	119
	300	500	460	410	370	28-2	12×26	886	1138	450	156
	450	600	580	525	480	32-2	12×30	1241	1604	500

Advantage of Angle Valve

1,Professional in Standard Carbon Steel Gate Valves

2,Free sample

3,Factory quality certificate ISO9001 & 14001

4,We are factory for the Russian standard flanged pn16 stem gate valve,casting,machining,painting,delivery process are completed.

5,OEM service is accepted,Customer's logo or label accepted

6,Delivery on time once we accept your order

7,CNC lathe in the workshop with 8 machining assembly line

8,Resin and coated sand casting technology owned by ourselves

9,We have the IF electric furnace support the casting parts for the russian standard stem gate valve.

10,Heat treatment equipment to ensure the valve quality, must will no any deformation on valve body.

11,Twice strict water pressure test and air pressure test before the valve been put in storage and before delivery

12,Middle and high class products to support the customers' different requirement. (light and pound grade)

13,Packing & transporation changed according to your request

14,Produce the products according to your drawings that will be most satisfy you

15,We buy material and make the cast parts by ourselves,control the stem gate valve price and producing progress
