High Quality 35 Cbm Bulk Cement Tanker Trailer Truck Trailer

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

High Quality 35 Cbm Bulk Cement Tanker Trailer Truck Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 32000/ Piece

Price:US $32000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Mar 07, 2015 To Jun 07, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CTY9978

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:Tongyada

Packing:Nude, Waxed Before Shipment

Standard:ISO, CCC, SGS

Origin:China Shandong

Production Capacity:2000 Units Per Year

Product Description

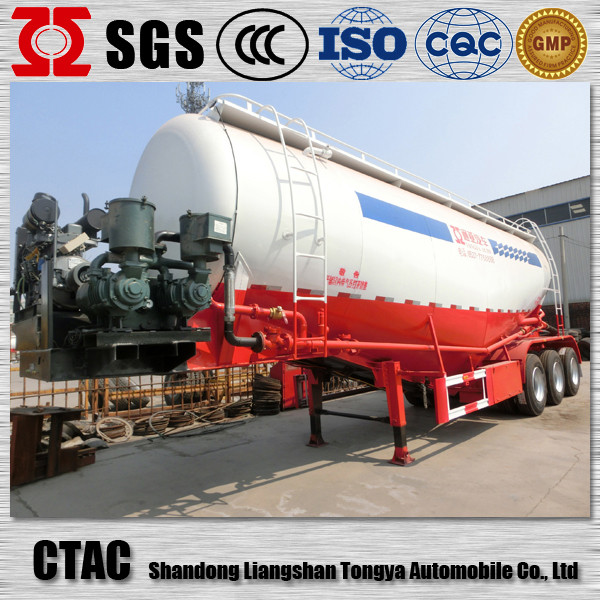

Factory direct tri axle bulk cement tanker semi trailer

1.Reliable manufacturer for 25 years
Over the last 25 years, we have manufactured various types of bulk cement tanker semi trailers. We are experienced enough to meet your diverse demands. Presently we are supplying over 20 nations, including Russia,Kenya, Philippines, and Bolivia.
2.V-shaped tank that allows complete discharge
V-shaped tank that allows complete discharge of the cement, with only less than 1% being left in the tank. Its reliable, fully closed design keeps moisture away from reaching the contents inside the tank.

Specifications

Tank Body (ShapeOne v-shaped silo, double silo, or triple silo design

Dimension10500mm×2490mm×3990mm( outside dimension,The exact size depends on the final design.)

Tare Weight (Semi Trailer)About 7.5T-10T

Total Volume (m3)30m³ -68 m³

Tanker Body5mm or 6mm/ Material Q235 carbon steel

End Plate 5mm or 6mm /Q235 carbon steel

Diesel Engine WEICHAI, Tianhe 4100/4102 or other brands

Air Compressor BOHAI 10m³/12 m³or other brands

Manhole Cover Carbon steel or Aluminum 500mm(Diameter)

Discharging Valve Diameter is 3 or 4 inch (Material: Aluminum)

Discharging Pipe 3 or 4 inch rubber hose, 1pcs, 6m/each

Cat Walk With (Common model or special design)

Axle 2 or 3 axles, 12T/13T/16T, BPW/FUWA/HUAJING brand

Landing Gear JOST (D200T) or CHINA BRAND 28T

King Pin JOST 2.00 or 3.5 inch bolt-in king pin

Suspension Mechanical suspension/Germany or America type /Air Suspension

Leaf Spring 90(W)mm×13(Thickness)mm×10 Layers or 100mm×12mm×12 layers

Pneumatic Braking System WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber (TKL brand); 45L air tank

Rim 9.00-22.5/8.00-20/8.5-20 Chinese Brand

Tire 12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional

Tool box 1m × 0.5m × 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs.)

ABS Optional

Painting Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.

Shipping Terms By bulk cargo carrier, RORO
