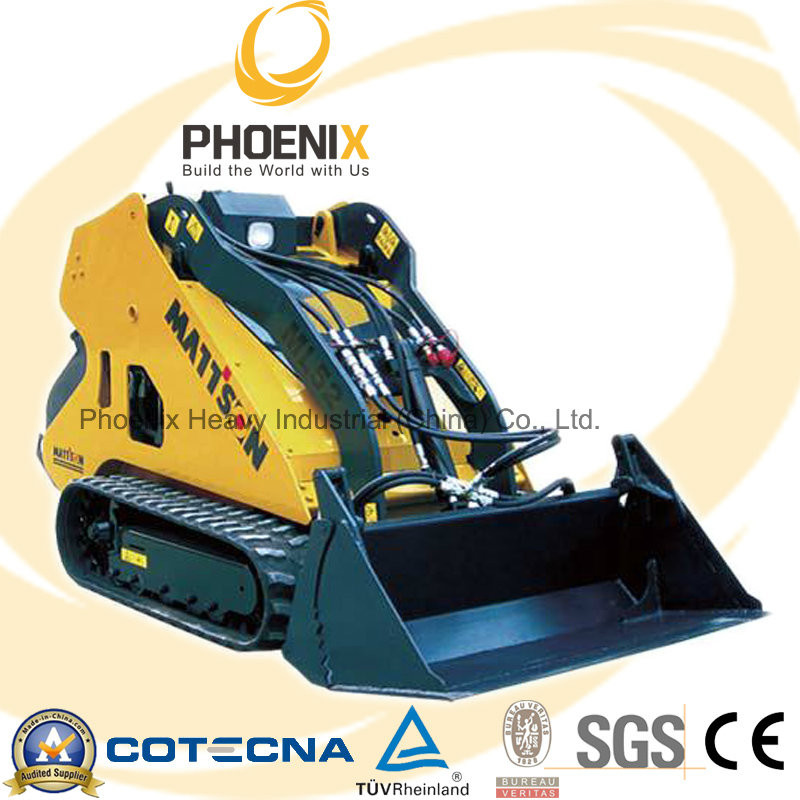

High Quality 26HP Crawler Mini Skid Steer Loader with CE

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$10000.0 - $13000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 13000/ Piece
10.0	US $ 10000/ Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, Money Gram, Western Union

Price Valid Time:From May 19, 2015 To Aug 19, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ML526

Type:Skid Steer Loader

Usage:Universal Type

Scraper Type:Tractor-Scraper

Transmission:Hydraulic Transmission

Walking Mode:Crawler

Load and Unload Method:Front Discharge

Engine Power:26HP

Certification:CE, ISO9001: 2000

Condition:New

Color:Yellow

Engine:Perkins Engine

Rated Operating Capacity:333kg

Export Markets:Global

Additional Info.

Trademark:PHOENIX

Packing:Nude Packing

Standard:CE

Origin:China Mainland

HS Code:84295100

Production Capacity:1000 Units/Month

Product Description

26HP Mini Crawler Loader With Perkins Engine
Main Specifications:

Engine: Changchai, Kubota, Perkins engine are optional.
Engine Power: 26HP with 3 cylinder diesel engine
Rated Operating Capacity: 333Kg
Operating Weight(out bucket): 1069Kg
Big capacity plastic fuel tank
Heavy-duty 2-stage air cleaner
Light footprint: 5.1psi(35KPa) ground pressure
45 lpm auxillary hydraulic flow

Model		ML526
Moving type		crawel type
Max. Length (without bucket)		1954 mm
Max. width		1040 mm
Max. height		1524 mm
Speed		0-15km/h
Rated operating capacity		330kg
Tipping capacity		953kg
Operating weight (with bucket)		1069KG
Engine	Type model	Perkins engine
	Fuel/cooling	Diesel/Liquid
	Rated speed	3000 r/min
	Power	26hp
	Oil tank capacity	34.07L*2
Hydraulic system	Hydraulic oil flow	45 L/min
	Traveling pressure	210bar
	Working pressure	175bar
	Byfraulic tank capcity	53L
	fittings	Quick coupler
Electrical system	Battery capacity	55Ah
	System valtage	12v
Optional attchments		4 in 1 bucket
		Auger drive
		Two set quick connector
