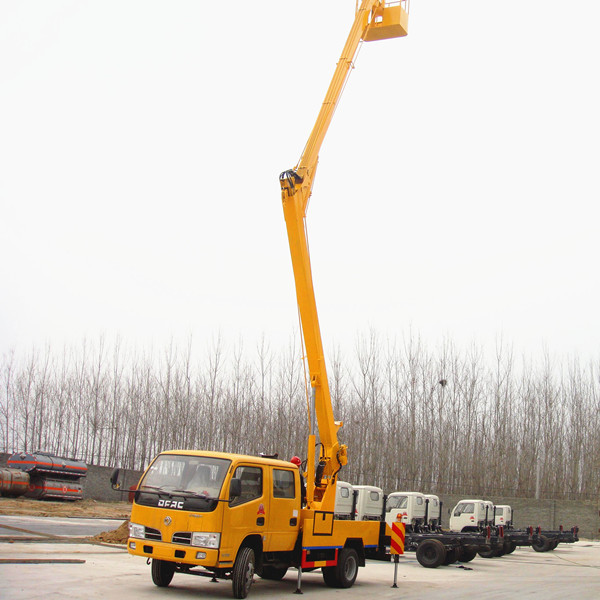

High Quality 12m Aerial Working Platform Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 19500/ Piece

Price:US $19500.0 / Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Apr 01, 2015 To Jul 01, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Certification:ISO9000

Emission Standard:Euro 3

Hoesrpower:150-250hp

Engine Type:4 Stroke

Payload:5t

Fuel:Diesel

Transmission Type:Manual

Drive Wheel:4x2

Condition:New

Color:Optional

Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:CHENGLI

Packing:Nude with Wax

Standard:Large

Origin:China

Production Capacity:5000PCS/Year

Product Description

High Quality 12m Aerial Working Platform Truck

Engine model: CY4102-C3F
Displacement: 3856
Power: 70KW@3200rpm

Cabin: Double row
Cab allowed persons: 5
Maximum working height: 12m
Wheelbase: 3300mm
Gross vehicle weight: 5945kg
Curb weight: 5620kg

Specification of 12m Aerial Working Truck
Main technical parameter
Product name		Aerial orking Truck
Gross vehicle weight (kg)		5945
Curb weight (kg)		5620
Cab allowed persons		5
Cabin		Double-row
Maximum working height		12m
Axle number		2
Wheelbase		3300mm
Chassis technical parameter
Chassis model		EQ1060NJ20D3
Chassis Name		Truck Chassis
Chassis Brand		DONGFENG
Manufacturer		DONGFENG AUTOMOBILE CO., LTD.
Overall Dimension (mm)		5845× 1760× 2130
Tyre No.		6 with 1 spare tyre
App. / Dep. Angle(º )		27/23
Tyre Spec.		7.00-16
Leaf Spring No.		8/9+5
Front Track (mm)		1506
Fuel Type		Diesel
Rear Track (mm)		1466
Drive Type		4x 2
Brake System		Air brake
Steering Wheel		LHD
Gear Box		5 speed forward and 1 reverse
Engine Technical Parameter
Engine Model		CY4102-C3F
Emission Standard		Euro III
Displacement (ml)		3856
Power (KW)		70KW@3200rpm
Cylinder No.		4 in line
Engine Type		inter-cooling charged, water-cooling
Superstructure Technical Parameter
Working cage	Max height from ground(m)	10.3
	Max working radius(m)	5.24
	Bucket Type	Insulated
	Related Load (kg)	200
Working boom	No. of Boom	2
	Boom rack rotation angle(º )	360
	Max. raising angle of upper boom(º )	60
	Max. raising angle of lower boom(º )	60
Outrigger	No. of Outrigger	4
	Vertical span(mm)	3000
	Horizontal span(mm)	2680
	Adjustment	Single control
Lifting	Rated lifting weight(kg)	800
	Rated lifting height(mm)	6.0
Operation	Control Mode	Control valve
	Operation Position	On& off the truck
