High Pressure Hammer Union for Oil, Mud, Water Drilling System

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

High Pressure Hammer Union for Oil, Mud, Water Drilling System

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$20.0 - $60.0 / Set

Min. Order (Sets)	Unit Price
10.0	US $ 60/ Set
20.0	US $ 20/ Set

Trade Terms: FOB, CFR, CIF, DAP, CPT, EXW

Payment Terms: L/C, T/T, Western Union

Price Valid Time:From Feb 13, 2015 To May 13, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:HBSH 634

Material:Carbon Steel

Connection:Female

Color:as Request

Materia:Casting/Forged/Stainless Steel/Alloy

Certification:API

Pressure Rate:1,000~20,000psi

Production Process:Welding / Casting

Composition:Male Female Union , Seals, Wing Nuts

Export Markets:Global

Additional Info.

Trademark:HBSH

Packing:Iron Box or Iron Cage

Standard:Jic /JIS/GB /ANSI /API

Origin:Hebei, China(Mainland)

HS Code:840130900

Production Capacity:50, 000psc/Year

Product Description

Specifications

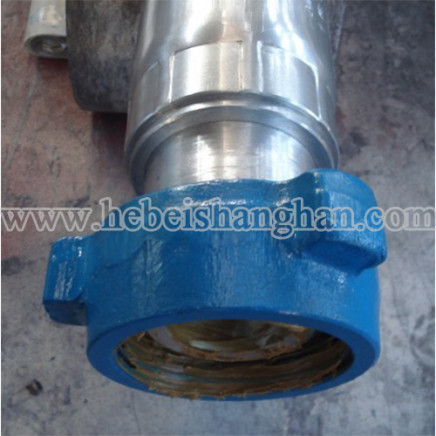

High pressure union, adopted advanced technology, is forged with high-strengh alloy steel.

The Hammer Union type mainly consists of Figure 100, Figure 200, Figure 206, Figure 400, Figure 600, Figure 602, Figure 1002, Figure 1003, Figure 1502 and Figure 2002.

We offer a wide range of standard and sour gas hammer unions. Each union is carefully inspected to assure long, dependable service in the most extreme conditions.
Color coded for quick identification
Unique identification for sour gas unions
Some include elastomer seal depending on size, pressure rating and style
All materials used meet ASTM/AISI standards
All Unions provide pressure-tight & positive sealing for low-pressure services(1000 to 2000PSI)
the spherical surface male sub and angular surface female sub form a metal-to-metal seal, the ball and tangent provides a perfect seal
Range from 1" to 12" with cold working pressures from 1000PSI to 20000PSI

Normal pipe size

Total length

Pick bore

Nut radius

Materials

Weight

Nut

Part

lbs

kgs

1 1/2

38.1

5 13/32

137.0

1/4

6.4

3 21/32

93.0

12.0

5.4

50.8

177.8

15/64

6.0

3 3/4

95.3

21.0

9.5

76.2

7 5/8

193.7

3/8

9.5

4 1/2

114.3

31.0

14.1

For Figure 1502, 1500PSI NSCWP, test pressure at 22500PSI with blue nut and red parts.
High-pressure union, importing international advanced technology, is forged with high-strength alloy steel, strict heat treatment process can ensure that the nipple have uniform metallurgical structure and pressing ability and the material meets ASTM and AISI Standard and the technology indexes conform to API Spec 6A, the product adopts some end connections of pipeline thread, tubing thread, butt-weld and compress-seal. The type mainly consists of: 100#, 200#, 206#, 207#, 211#, 400#, 600#, 602#, 1002#, 1003#, 1502# and 2002#.
Fast Installation
Wherever they are,wing nuts and right ACME will ensure quick installation or dismantling without special tools.
Highly Interchangeable
All unions are made in American system,and can be interchanged with products in international market.
Seal rings are fully interchangeable with equivalent products;
Marks of size and pressure in wing nuts are formed in die-forging model,same as international products.
Honorary Certificate
Our products have been ISO9001 certified and attained API 6A,6D,API 7,7K,and API 16A&16C approvals of American Petroleum Institute.All products are fully designed and manufactured in accordance with API,ANSI,GB(national standards)and SY(industry standards)standards.

Nominal Pipe Size		Total Length		Nut Radius		Material		Weight
Nominal Pipe Size		Total Length		Nut Radius		Nut	Subs	Weight
in	mm	in	mm	in	mm			Lbs	Kgs
2	50.8	3-5/8	92.1	2-15/16	74.6	SF	SF	5.25	2.4
2-1/2	63.8	4-1/4	108.0	3-5/8	92.1	SF	SF	8.0	3.6
3	76.2	4-15/16	125.4	4-1/16	103.2	SF	SF	14.0	6.4
4	101.6	5-15/16	150.8	4-25/32	121.4	SF	SF	23.0	10.4
6	152.4	6-5/8	168.3	6-7/16	163.5	SF	SF	44.5	20.2
8	203.2	7-1/4	184.2	7-11/16	195.3	SF	SF	61.0	27.7
