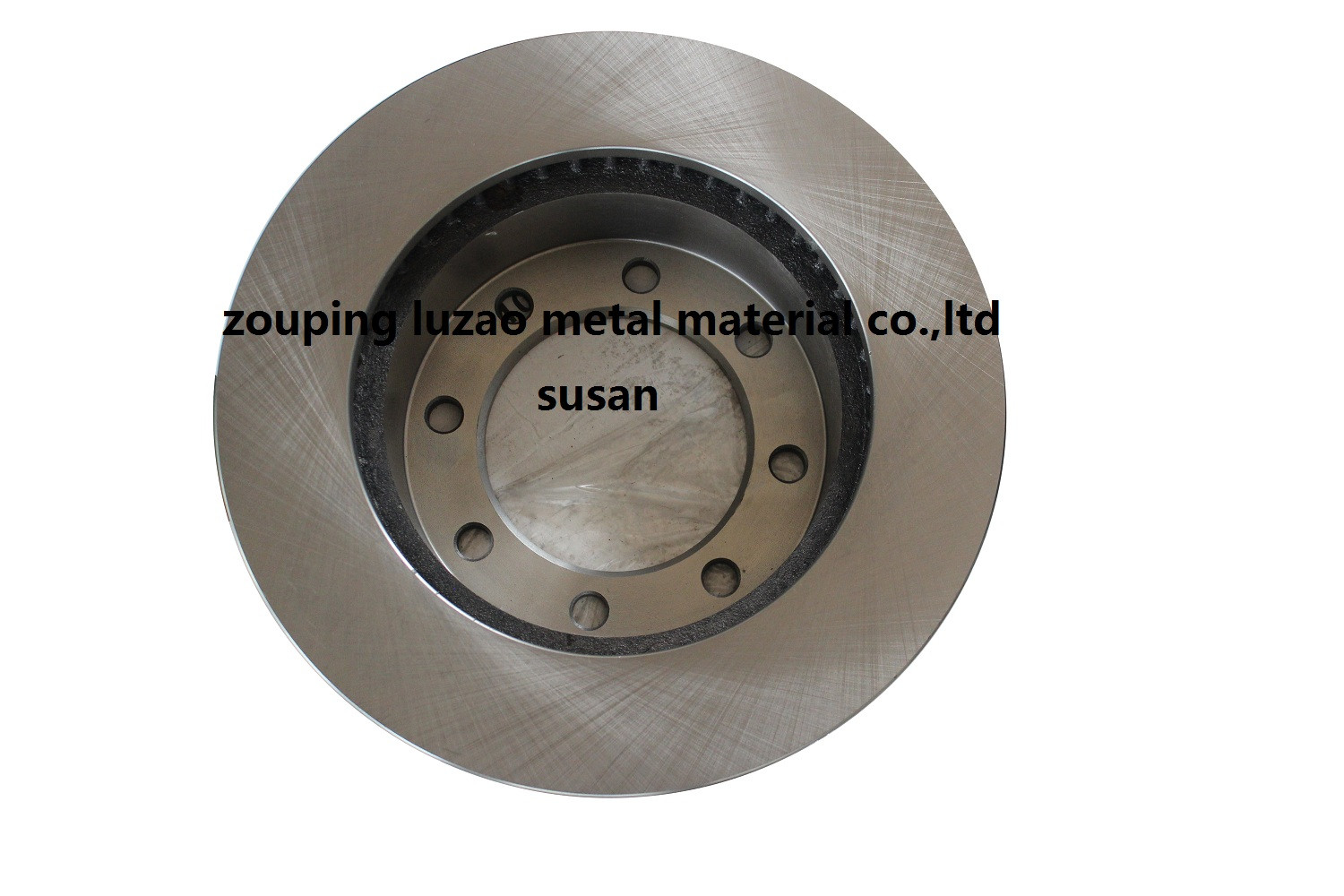

High Precision Sand Casting Brake Discs for Cars (54124/5C3Z-1125-AB)

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

High Precision Sand Casting Brake Discs for Cars (54124/5C3Z-1125-AB)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$8.34 - $40.85 / Piece

Min. Order (Pieces)	Unit Price
100.0	US $ 8.34/ Piece
200.0	US $ 40.85/ Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From May 08, 2015 To Jul 08, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:54124/ 5C3Z-1125-AB

Type:Brake Discs

Material:Iron

Position:Front

Certification:ISO/TS16949, TS16949

Classification:Disc

Drum Brakes Classification:Brake Drum

Main Market:Global

Hardness:170~210

Height:100mm

Outer Diameter:347mm

Pitch Circle Diameter:170mm

Brake Disc Thickness:38mm

Minimum Thickness:36.4mm

Number of Holes:8

Solid or Vented:V

Export Markets:Global

Additional Info.

Trademark:Luzao

Packing:Neutral or Color, as Customer?s Request

Standard:ISO/TS16949 Certificate

Origin:Zouping, Shandong

HS Code:87083099

Production Capacity:100000tons Per Month

Product Description

Brake disc Details:

Position: Front wheel

Height:100mm

Outer Diameter: 347mm

Pitch circle diameter: 170mm

Brake disc thickness: 38mm

Minimum thickness: 36.4mm

Number of holes:8

Solid or vented: V

Hardness: 170-210

Packing: Neutral or Color, as customer's request

Delivery Detail: 20-30 days after order

Certificate TS 16949/ISO

Brake disc Specifications:

1) Material: Gray iron HT250/G3000
2) Long service life & stable performance
3) 100% crucial dimension inspection and Balancing
4) 100% qualification
5) Low noise standard for casting is HT250, Standard for machining is SAE-j431.
6) Stable coefficient friction
7) All the brake disc are noiseless and anti-skidding.
8) Do OEM service
9) Warehouse stock

Quality control:

Our company have a large number of the Quality Control Engineers, and we also have
a lot of high precision testing equipment. such as: three coordinate measuring system,
spectrograph, Optical Brinell hardness tester, tensile testing machine, air-gauge, Dial bore
gauges, Inside Micrometer etc.

If you are interested in ,pls feel free to contact me, tel: 0086-543-4347957
