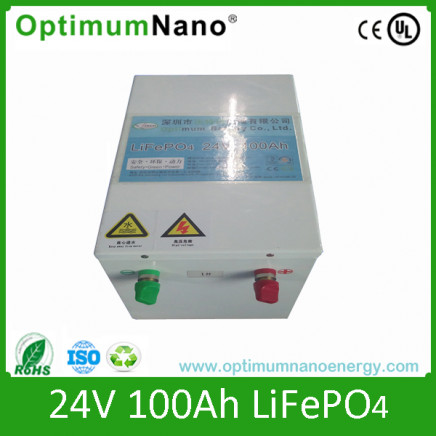

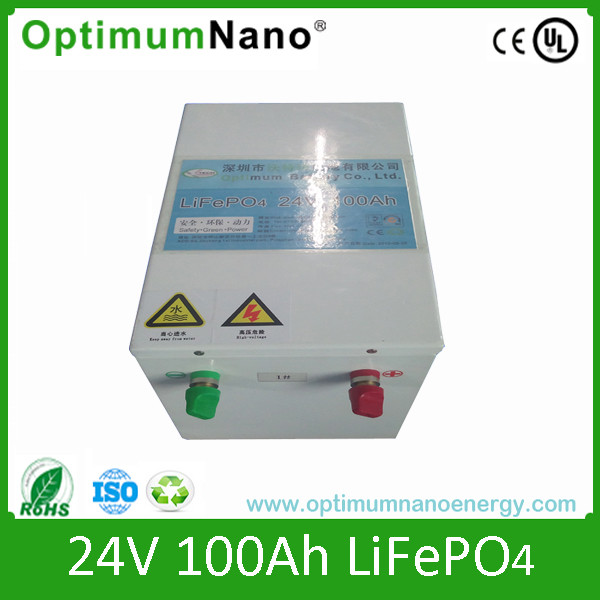

High Power 24V100ah Lithium Battery for Solar Light

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

High Power 24V100ah Lithium Battery for Solar Light

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$900.0 - $1230.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 1230/ Piece
1000.0	US $ 900/ Piece

Trade Terms: FOB, EXW

Payment Terms: L/C, T/T, Western Union

Price Valid Time:From Jul 24, 2015 To Oct 24, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT-024100

Type:Lithium-Ion Battery Pack

Connection Mode:Series and Parallel

Rechargeable:Chargeable

Discharge Rate:High Discharge Rate

Size:Small

Accessories Type:Battery

Rated Capacity:500MAH?1000MAH

Standard Voltage:24V

Usage:Remote Control Plane

Electrolyte:LiFePO4

Battery Cell Type:LiFePO4 Battery(Ifr 32650-3.2V5ah Per Cell)

Composed Type:8 Series 20 Parallel

Life Cycle:Over 2000 Cycles >80% Capacity

Self Discharge Rate:?3% Monthly

Warranty Time:2 Years

Life Cycles:2000times

Application:E-Car ,E-Bus ,Golf Car ,E-Bike,Scooter,RV,Agv ,Sol

Certificate:UL ,CE ,RoHS ,ISO9001 ,Ts16949 ,SGS ,BV , IEC62133

Charge Method:Cc/CV

Advantage:Safety,Long Life Cycles,High Energy Density

Export Markets:Global

Additional Info.

Trademark:OPTIMUMNANO

Packing:Standard Packing

Standard:CE, UL, ROHS, IEC, BV, SGS

Origin:Cn

HS Code:8507600090

Production Capacity:1000 Packs/ Week

Product Description

High Power 24V100ah Lithium Battery for Solar Light

1. High dimension ratio power: 32750-7Ah weight ratio power is 135Wh/kg, dimension ratio power is 370Wh/L; 32650-5Ah weight ratio power is 110Wh/kg, dimension of ratio power is 370Wh/L.

2. Long cycle and service term: 1C charge/discharge, 100% discharge depth, 80% capacity after 2000 charge/discharge cycles. Sevice term above 8 years on ev;

3. Good safey performance: No explosion and burning after safety testing like overcharging/discharging, short-circuit, dropping, squeezing, heating, penetrating, etc.

4. Good performance at high or low temperature: 105% capacity can be released when charge/discharge at 55 oC; 80% capacity can be released when charge/discharge at -15oC...

5. Small self-discharge current: Rest for one month with half soc, self-discharge current less than 5%;
6. High efficiency of charging: Capacity efficiency ( ampere hour efficiency) usually 100%, 100Ah for charging and 100Ah for dicharging;

7. Good performance of heavy current: The capacity stays the same with 100% capacity when the battery discharge at different rate at 0.1C-5C.

24v100ah datasheet
Voltage:	24V
Capacity:	100AH
Max.Charge voltage:	29.2V
Cut-off voltage:	20V
Standard charge and discharge current:	0.1-0.2C
Size: (LWH)	345280188,,
Weight	About 38kg
Cycle life(1C/1C 100% DOD)	2000 Cycles
Charge Temperature Range	0ºC~ 45ºC
Discharge Temperature Range	-20ºC~ 65ºC

.

Remarks:
1) MOQ: 1 pcs
The quotation is include BMS and packing, but not the charger
2) Payment: T/T 100% for sample, T/T 30% in advance, 70% before sending the goods for the order.
3) Order Lead time: 4-6 weeks for order upon receipt of 30% deposit
4) Sample lead time: Within 2-3 weeks
5) Delivery: FOB Shenzhen port
6) Warranty: 24 Months from the day when you receive the goods
