High Performance Large Capacity LPG Transfer Pump Semitrailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 35000.0-38000.0/ Piece

Price:$35000.0 - $38000.0 / Piece

Trade Terms: FOB, CFR, EXW, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Price Valid Time:From May 27, 2015 To Aug 27, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CLW

Function:Storage Pressure Vessel

Application:Liquefied Gas

Material:Carbon Steel

Pressure:1.6MPa?p<10.0MPa

Storage Medium:Flammable/Toxic

Pressure Level:Medium Pressure (1.6MPa?p<10.0MPa)

Condition:New

Description:Clw Brand LPG Tanker Trailer 3 Axles

Loading Material:LPG, Propane, Gas or Others

Design:OEM, ODM

Landing Leg:Fuwa or Jost Landing Leg

Trailer Axles:3 Nos Fuwa or BPW Axle

LPG Tanker Material:Special LPG Tank Material Q345r

Service Time:More Than 15 Years

King Pin:90# Jost King Pin

Tire:10.00-20 11.00-20

Export Markets:Global

Additional Info.

Trademark:CLW BRAND

Packing:Waxed Before on Board

Standard:ISO, CCC, CE, ASME, ASTM, EEC

Origin:Hubei Suizhou

HS Code:8705909990

Production Capacity:500unit/Month

Product Description

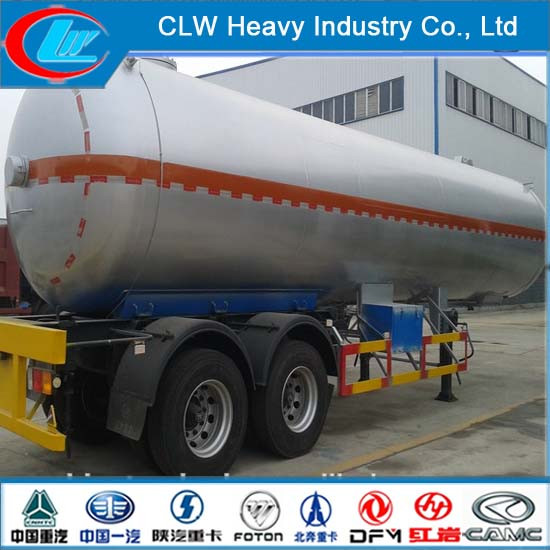

High performance large capacity LPG transfer pump semitrailer
1:materil:Q345R carbon steel made in china
2:100% X-raying test
3:standard: GB150

The lpg gas trailer is also called lpg tank trailer,lpg semi trailer, lpg trailer, lpg gas tanker semi trailer,etc. The lpg semi trailer is consisted of lpg gas tank, thermometer, pressure gage, content gage, landing leg,trailer axle, pipeline system, valves,etc.The lpg semi trailer is mainly used to transport liquid propane gas.

Our lpg tank is 100% x-ray test and export over all the world. The semi trailer axles can be fuwa axle, BPW axle,etc. The tyres can be steel wire tyre, tubeless tire, Nylon tyre. The landing leg of our semi trailer can be Jost landing legs, fuwa langing leg,etc. The kingpin diameter of our semi-trailer can be 90mm or 50mm.

We also customize the semi-trailer lift axle air suspension, trailer suspension leaf springs.
we have the biggest LPG gas tank trailer and LPG truck in the world:
1. we have the biggest LPG tank trailer in the world, the valid volume is 59.6cbm; low transport costs, more profit.
2. we have the biggest LPG truck in China, it's valid volume is 35.5cbm;
3. our LPG storage tank ranged from 10cbm to 100cbm. both on the floor ones and in the ground ones.

FAQ
1.Payment:
30% deposit after order confirmation, 70% balance should be paid before delivery. All by T/T, L/C.
2.Delivery time:
25 working days after payment is received.

Packaging & Shipping:
1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.

Our warranty:
1. One year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.

Below specification is just for your reference. More information of our LPG Tank trailer.please feel free to contact with Ms. Kitty Zhen. We will customize the truck according to your requirement.

Sales Manager: Kitty Zhen
Mob.: 0086-133 4990 9442

Parameter of the LPG semi-trailer

Item			Parameter
Tank	Description of LPG tank		59.6CBM LPG semi-trailer
	Type number		CLW9400GYQA
	Volume		59.6CBM
	GVW		40000KG
	Overall dimensions (mm)		1300025003990
	Curb weight(kg)		25000
	Approach Angle/Angle of departure		-/20 (�)
	Wheel base		7230+1310+1310(mm)
	Tire		12R22.5 12PR
	Axle Number		3
	Type of vessel		The third kind
	Design pressure		1.77MPa
	Max working pressure		1.61MPa
	Design temperature		-19~50�C
	Filling medium		Liquid petroleum gas (propane)
	Corrosion allowance		1.0mm
	volume		59.6CBM
	Thermal treatment		The entirety
	Filling factor		420-590kg/CBM
	Material of the tank		Q345R
	Hydraulic test pressure		2.22 M Pa
	Gas tight test pressure		1.77 M Pa
	Cylinder thickness		14mm
	Head thickness		14mm
	Service time		10 years
Liquid level indicator	Type		UNZ-518C14
	Version of the indicator		Magnetic type liquid level indicator
	Normal pressure		2.5M Pa
	Scope of testing		50-2300mm
	Precision		2.5
Safety valve	Model		A42F-2.5-80
	Version		Built-in
	Normal pressure		2.5 M Pa
	Normal diameter		DN80
	Opening pressure		1.68~1.76M Pa
	Re-seating pressure		>=0.8 times of the opening pressure
Loading and unloading system	Normal diameter	Feed pip	DN80
		Drain pip	DN80
		Admission port	DN80
		Sewage outfall port	DN80
		Vent nozzle port	DN80
Standard	GB150 <pressure vessel> TSG R0004-2009
Specification	Designed Pressure: 1.77Mpa Filling Ratio: 0.42-0.59 kg/L Working Temperature:-50�C Corrosion Allowance: 1mm
Standard configuration	13TBPW axle,ABS system,Single out the liquid ,Double toolkit ,thermometer,pressure gage,JOST king pin,JOST leg,Emergeny cut-off valves,Safety valve ,12 tubeless tire and one spare tire,fire extinguisher,anti-static tape,plastic mudfender.

ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.

Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.

We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.

Cheng Li LPG Pressure Vessel functional characteristics:
1. Anti-corrosion coating the surface .Using sand-blasting treatment, spraying, blowing, and other advanced technology.
2.High-quality home-made or imported Safety Accessories for users matching, fully furnished.
3.Strictly to science and the advanced construction technology to ensure that at low temperatures, the contraction rate of the highest dimensional stability.
4. rigorous quality testing: A, B Class 100% seam-ray testing, II level qualified C, D Class weld 100% magnetic particle inspection, I level qualified.

Tank shaped use the advanced welding technology, end socket arc butt welding, and the once-forming of composite steel-plastic technology. Equipped with active and passive safety devices to meet an emergency and can load and unload the material in long distance and completely close condition. Be applied to transport natural gas, liquefied petroleum gas, liquefied ammonia, carbon bisulfide, epoxy ethane, gas, butane, dimethylmethane, propylene, etc. Cross section of tank could be oval, round and round-square. heat insulation and heating device is optional.

Advantages of CLW lpg gas tank semi trailer
1. Anti-corrosion coating surface treatment are used sand-blasting, painting, sweeping and other advanced technology.
2. High-quality domestic and imported the security annex to be selected, comprehensive
3. Strictly to science and advanced construction technology, to ensure the lowest in the low temperature contraction rate, the high
4. Rigorous quality testing: A, B Class 100% weld ray detection, II level qualified. C, D Class weld 100% magnetic particle testing, I-level qualified
5. We also can produce according to customer needs for a variety of chassis converted to ammonia, liquid sulfur dioxide, propylene, propane, liquefied petroleum gas, dimethyl ether, butane, iso-butane, butene, isobutylene, butadiene , ethylene oxide, and most gas vehicle

If you are interested in our trucks, pls contact me, I will send our best quotation to you!

Contact information

Sale Manager: Kitty Zhen
Tel/Fax : 00862783796298
Cell:0086-13872880590/13349909442
Website:truckcl.en.alibaba.com

we sincerely welcome you to visit our factory and provide your precious suggestion for us!
