High Efficiency 300W Poly-Crystalline Solar Panels/ Modules

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

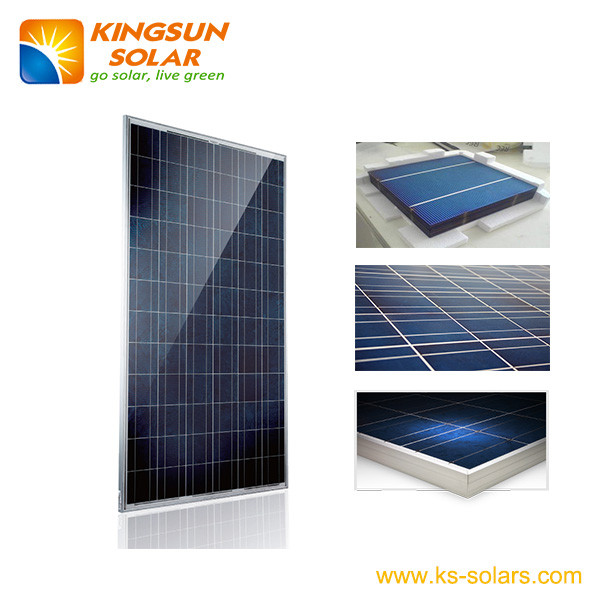

High Efficiency 300W Poly-Crystalline Solar Panels/ Modules

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (PCS)	Unit Price
200.0	US $ 0.6/

Price:US $0.6 / watt

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Sep 30, 2014 To Oct 26, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:KSP275, KSP280, KSP285, KSP290, KSP300

Material:Polycrystalline Silicon

OEM:Acceptable

Export Markets:Global

Additional Info.

Trademark:KingSun

Packing:Standard Export Packing

Standard:TUV, CE, ISO

Origin:Nanjing, Jiangsu, China

HS Code:85414020

Production Capacity:100MW/Year

Product Description

Product Advantage:
- Good for on-grid or off-grid application
- UV protection
- All weather protection
- Moisture protection
- Corrosive protection
- Strong aluminum frames to strengthen the load hold and to stand against high wind
- High transmittance low iron tempered glass with enhanced stiffness and impact resistance
- Cerificates:IEC61215 & IEC61730( TUVRheinland);CE( TUV Nord), ISO
High Efficiency 300W Poly-Crystalline Solar Panels/ Modules

Product Is Suitable For:
- Resident roof top systems

- Resident roof top systems

- Water pumping stations

- High voltage stand alone systems

- Electrification of villages in remote areas

- Air monitoring

- Medical facilities in rural areas

- Wireless Data

- Power source for summer vacation homes

- Emergency communication systems

- Telecom

- Security

- Obstruction Lighting

- Traffic

- Water quality and environmental data monitoring systems

Our Factory Product Line
High Efficiency 300W Poly-Crystalline Solar Panels/ Modules

Electrical Parameters
Model	KSP275	KSP280	KSP285	KSP290	KSP295	KSP300
Open Circuit Voltage(V)	43.2	44.3	43.6	43.7	43.7	44
Short Circuit Current(A)	8.48	8.62	8.71	8.73	8.88	8.97
Maximum Power Voltage(V)	35.6	35.7	35.8	35.9	36	36.1
Maximum Power Current(A)	7.72	7.84	7.96	8.08	8.19	8.31
Maximum Power At STC(Wp)	275	280	285	290	295	300
Nominal Operating Cell Temperature	45�2�C
Temperature Coefficients Of Isc	+0.049%/�C
Temperature Coefficients Of Voc	-0.340%/�C
Temperature Coefficients Of Pmax	-0.430%/�C
Standard Test Conditions(STC)	Irradiance 1000W/m�,Module Temperature 25�C,Air Mass(AM)=1.5
Power Production Tolerance	�3%
Mechanical Parameters
Solar Cell	72(612)Polycrystalline silicon Solar Cells 156156mm
Front Cover	3.2mm thick,Tempered Glass
Back Cover	TPT(Tedlar-PET-Tedlar)
Encapsulant	EVA(ethylene vinyl acetate)
Frame	Double-layer anodized aluminium alloy
Junction Box	IP65 rated
Cables/Connectors	4.0mm� 900mm/MC4 or compatible connectors
Dimensions	195699250mm
Weight	25Kg
Working Conditions
Maximum System Voltage	DC1000V(IEC)
Maximum Series Fuse	15A
Operating Temperature	-40�C~+85�C
Storage Temperature	-40�C~+85�C
Max.Wind Load / Max.Snow Load	2400Pa/5400Pa
Application Class	Class A
Module Area(m�)	1.94m�
Packing Configuration	462Pcs./40 ft,container
Guarranty
10 years for product defects in materials & workmanship 25 years transferrable power output warranty:10 years at 90% of the minimal rate power output,25 years at 80% of the minial rated power output
