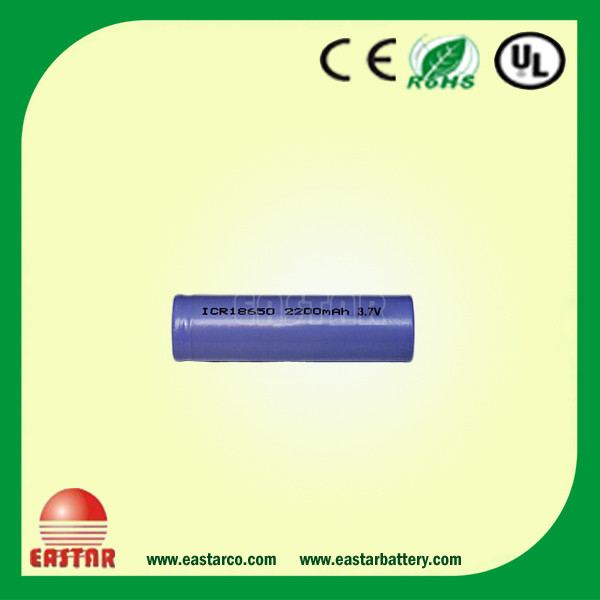

High Capacity 186502200 mAh 3.7V Rechargeable Lithium-Ion Battery Cell,

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
500.0	US $ 1.4/ Piece

Price:US $1.4 / Piece

Trade Terms: FOB, CFR, CIF, FCA

Payment Terms: L/C, T/T, D/P, Paypal, Western Union

Price Valid Time:From Aug 21, 2014 To Nov 11, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ICR18650

Type:Lithium Battery

Charger Type:Electric Charger

Nominal Voltage:3.7V

Size:18650, 18.2*64.7mm

Place of Origin:Guangdong China (Mainland)

Brand Name:Eastar

Model Number:Icr18650

Nominal Capacity:2200mAh

Weight:47 G

Color:Blue

OEM:Yes

Life Cycle:More Than 800 Times

Continuous Discharge Current:1c

Burst Discharge Current:3c

Export Markets:Global

Additional Info.

Trademark:Eastar Battery

Packing:We Can Do Packing as Customer Requirements

Standard:with CE&ROHS certification, OEM/ODM

Origin:Guangdong China (Mainland)

Production Capacity:100000 Piece/Pieces Per Month

Product Description

Packaging & Delivery

Packaging Detail: Packing details We can do packing as customer requirements. Our coomom packing ways as follow: First way: 1, standard box, 24 pieces a box 2, 20 boxes a carton, total 480 piece one carton. Scond way: 1, standard box, 120 pieces a box 2, 3 boxes a carton, total 360 piece one carton.
Delivery Detail: 15days

Specifications
14500 rechargeable lithium battery 3.7V 750 MAH
1, superior electric core
2, high real capacity
3, rechargeable, Long life cycle

Products advantage

1, High capacity

2, Excellent safety performance

3, Excellent storage performance and low self-discharge rate

4, Safety Performance:

5, short circuit test passed

6, 150C thermal shock test passed

7, 1.2m drop test passed

8, Cycle life: 800 times

9, Charging temperature: 0 to 45 degree Celsius

10, Discharging temperature: -20 to 60 degree Celsius

11, Storage temperature: -20 to 45 degree Celsius

12, PCB/PCM and battery pack available

13, Other sizes and capacities we can all accommodate

ODM/OEM are welcomed. Our engineers will design the packs special for you as your orders!

Packing details
We can do packing as customer requirements, our coomom packing ways as follow:
First way:
1, standard box, 24 pieces a box
2, 20 boxes a carton, total 480 piece one carton.
Scond way:
1, standard box, 120 pieces a box
2, 3 boxes a carton, total 360 piece one carton.

Delivery time: 15 days
Warranty: 1 year

14500 lithium ion Battery basic data

Specification	li-ion battery
Type	Lithium-ion rechargeable cell
Model	ICR18650
Nominal voltage	3.7 V
Nominal capacity	2200mAh
	discharge from 4.2V to 3.0V at 0.2C mA
Minimal capacity	2100mAh
Max charge current	2200mA 1C
Charging method	charge with constant current 1C to 4.2V, then charge with constant voltage 4.2V till charge current is less than 0.01C
Discharge cut-off voltage	3.0 V, the over-discharge detection voltage of PCM
Operating environment	Charging, 0°C ~ 45°C ; 65ą20%RH
Operating environment	Discharging, -20°C~60°C ; 65ą20%RH
Storage environment	-20°C~45°C 65ą20%RH
Storage environment	storage for a long time(>3 months) and the storage condition shall be:<35°C;65ą20%RH;3.7~3.9V
Cell Weight (Approx)	47g
Cell Dimension (Max)	according to customer demand
