Hex. Socket Head Cap Screw Socket Flat Head Cap Screw

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$0.07 - $0.09 / Piece

Min. Order (Pieces)	Unit Price
10000.0	US $ 0.09/ Piece
100000.0	US $ 0.07/ Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Mar 11, 2015 To Dec 31, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:LKYQ

Material:High Strength Steel

Type:Hexagon Head

Groove:Hexagon

Connection:Common Bolt

Head Style:Round

Standard:DIN, GB, ANSI, JIS

Grade:12.9

Sample:Free

Export Markets:Global

Additional Info.

Trademark:LK

Packing:Bulk Packing, Small Box Packing

Standard:DIN, ANSI, ISO and Non-Standard

Origin:China

HS Code:7318

Production Capacity:500 Ton/Month

Product Description

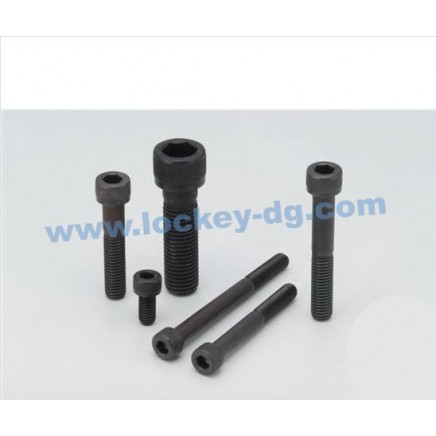

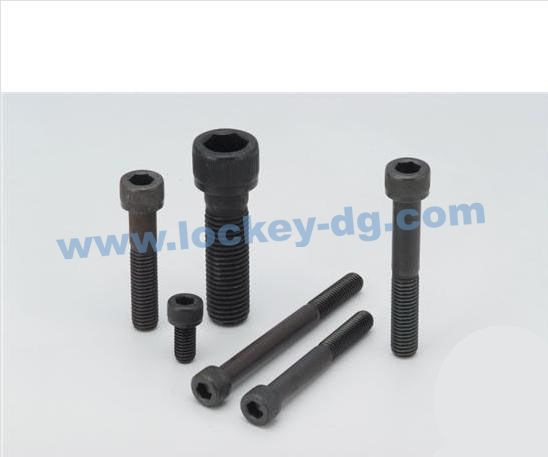

Hex. Socket Head Cap Screw Flat Socket Head Cap Screw
1> Description: Hex. Socket Head Cap Screw Flat Socket Head Cap Screw
2> Material: Steel, stainless steel
3> Surface: Zinc plated in chromium and RoHS
4> Size: M5(3/16") upto M27(1-1/8")
5> Length: Up to 500mm
6> Mechanical Properties: Class 8.8, Class 10.9, 12.9

We are the Hex. Socket head cap screw manufacture in China. We produce the socket head cap screw main include, but not only
Class 10.9 Hex. Socket head cap screw(Allen bolt)
Class 12.9 Hex. Socket head cap screw(Allen Bolt)
SS18-8 Hex. Socket head cap screw(Allen Bolt)
SS304 Hex. Socket head cap screw(Allen Bolt)
SS316 Hex. Socket head cap screw(Allen Bolt)

If you are interesting our products, we are looking forward to hear from you.

Technical Delivery Conditions
Material		Steel	Stainless steel		Non-ferrous metal
General requirements		As specified in DIN 267 part 1
Thread	Tolerance	Class 12.9: 5g / 6g; Others: 6g
	Standard	ISO 261, ISO965; DIN13 Part 12 & 15
Mechanical properties	Property class	?M39: 8.8, 10.9, 12.9 >M39: To agreement	?M20	A2-70	To agreement
				A4-70
			>M20 & ?M39	A2-50
				A4-50
			?M39	C3
			>M39	To agreement
	Standard	ISO 898 Part 1	ISO 3605, DIN267 Part 11		DIN267 Part 18
Limit deviations geometrical tolerance	Product grade	A

	Standard	ISO 4759 Part 1
Surface finish		Black Oxide	Bright		Bright
		DIN267 Part 2 shall apply with regard to surface roughness
		DIN267 Part 19 shall apply with regard to permissible surface discontinuities
		DIN267 Part 9 shall apply with regard to electropiating
		If different electroplating or other surface protection is desired, this shall be agreed upon at the time of ordering
Acceptance inspection		DIN267 Part 5 shall apply with regard to acceptance inspection
