Hex Head Screw Hex Head Bolt DIN931 DIN933

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$0.008 - $0.01 / Piece

Min. Order (Pieces)	Unit Price
2000.0	US $ 0.01/ Piece
100000.0	US $ 0.008/ Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T, Western Union

Price Valid Time:From Jan 20, 2015 To Apr 20, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:LKZA

Material:Carbon Steel

Type:Hexagon Head

Connection:Common Bolt

Head Style:Hexagonal

Standard:DIN, ANSI, GB, JIS

Application:Machinery

Finish:Blue-White Zinc Plated

Sample:Free

Export Markets:Global

Additional Info.

Trademark:LK

Packing:Bulk Packing, Small Box Packing

Standard:DIN, ANSI, ISO and Non-Standard

Origin:China

HS Code:7318

Production Capacity:500 Ton/Month

Product Description

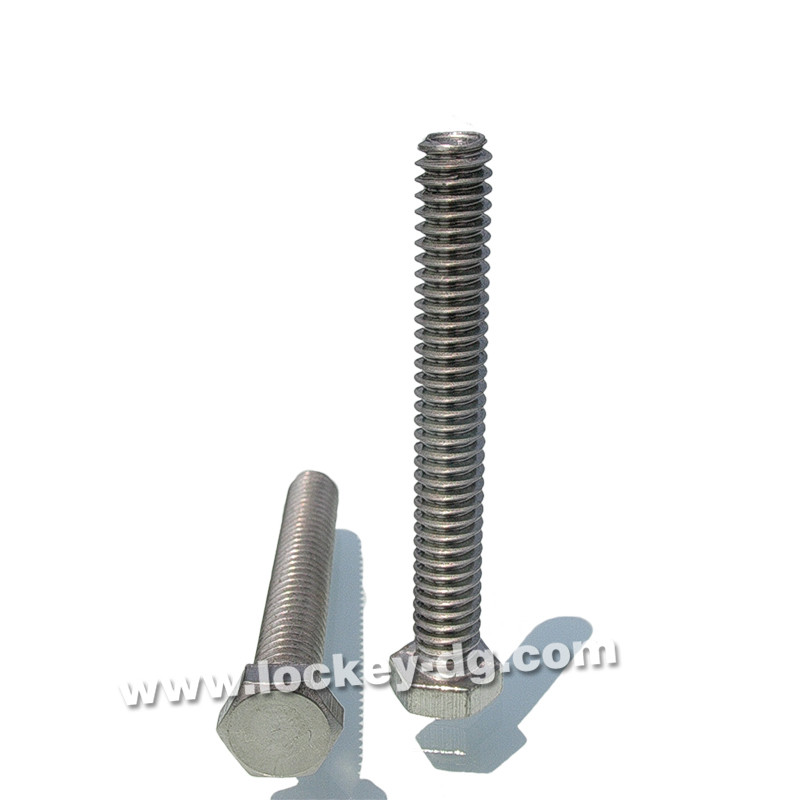

1> Description: Hex head screw
2> Material: Steel, stainless steel
3> Surface: Zinc plated, each kind of plating Passivation
4> Size: M6~M20, 1/4"~3/4"

We professionally produce bolts such as Hex head screw, carriage bolt, square head bolt etc. The product standard contains DIN, GB, ANSI, ISO, JIS. Imported equipments, materials and matrixes are used in the company. We also make high quality product which is not standard.

Please feel free to contact us if you are interesting our products. We are strongly believe will guarantee you the best quality and service for our more than 30 years professional experience.

Technical Delivery Conditions
Material		Steel	Stainless steel		Non-ferrous metal
General requirements		As specified in DIN 267 part 1
Thread	Tolerance	6g
	Standard	DIN13 Part 12 & 15
Mechanical properties	Property class	5.6 8.8 10.9	?M20	A2-70	Subject to agreement
				A4-70
			>M20	A2-50
				A4-50
				C3,C4
	Standard	ISO 898 Part 1	DIN267 Part 11		DIN267 Part 18
Limit deviations geometrical tolerance	Product grade	A for product up to size M24 and L?10d or 150mm B for product exceeding size M24 or L>10d or 150mm

	Standard	ISO 4759 Part 1
Surface finish		As processed Property class 8.8 and above: Blackened	Bright		Bright




		DIN267 Part 2 shall apply with regard to surface roughness
		DIN267 Part 19 shall apply with regard to permissible surface discontinuities
		DIN267 Part 9 shall apply with regard to electropiating
		DIN267 Part 10 shall apply with regard to hot dip galvanizing
Acceptance inspection		DIN267 Part 5 shall apply with regard to acceptance inspection
