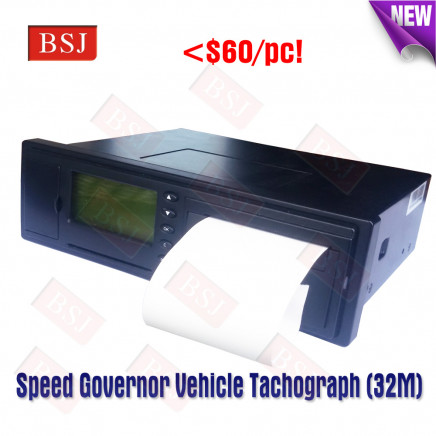

Heavy Truck Digital Tachohgraph with Speed Limiter

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 60/ Piece

Price:US $60.0 / Piece

Trade Terms: FOB, CIF, EXW

Payment Terms: L/C, T/T, Paypal, Western Union

Price Valid Time:From Mar 25, 2015 To Sep 30, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:BSJ-A8

Screen Size:2.5"

Function:Driving Data Recording, Accident Recording and Analyzing, Video Storing, Identity Recognition, Data Input, Data Communication, Display and Print, Fatigue Driving Warning, Over Speed Warning

SD Card Memory Size:8G

Type:All-in-one Multifunctional

Style:Data Recorder

Video Resolution:High Definition

Brand:Bsj

Working Voltage:9-36V

Working Current:70mA@12V

Print Voltage:9-36V

Power Consumpion:0.84W

Speed Rang:0-255km/H

Speed Accuracy:0.5km/H

CPU Chip Processor:Arm7 Cortex-M3

Main Frequency:72GB

DOT-Matrix LCD Screen:240*32

Feature:Digital Tachograph

Export Markets:Global

Additional Info.

Trademark:BSJ/Customized brand is accepted

Packing:Netural Box/Gift Box

Standard:CE, RCC, RoHS, SGS, ISO

Origin:Guangdong, China

HS Code:902910200

Production Capacity:100, 000 PCS/Month

Product Description

heavy truck digital tachograph with speed limiter

System summary
A8 can use RS2332-USB DB9 port to connect with PC to record, save vehicle's driving speed, time, mileage or some related vehicle driving's other information.

Main function
A. Display function

(1)Real time display function
A: You do not need make any operation, BSJ-A8 can show IC card code, current driving speed etc.
B: Press UP key to check real time clock (A8 can offer GMT+8's time, date, it will show YY/MM/DD/HH/MM/SS etc)

(2)Show driving record, include: RTC, driver's code and driver license number, latest 360 hours driving speed, VIN code, car plate number, car plate classification, doubtful accident data, latest 2 days driving mileage, fatigue driving record etc.

(3)Show fatigue driving and record

(4)Show vehicle information and driver file management

(5)Check and set parameter

B. USB function
Upgrade program, download accident doubtful point data, BIN format file.

C. Print function
Print paper can show content include:
Car plate number,
Car plate classification,
Driver's code,
Driver's license number,
Print time,
Parking time,
The last 15 minutes vehicle's average speed(it will record one speed per minute, it record 15 times),
Fatigue driving time (the latest 4 times fatigue driving records)

D. Cut off circuit protect function
A8 can store all data before you cut off electricity of your device.

Model	BSJ-A8
Voltage	9~36V
Current	70mA@12V
Print voltage	9~36V
Print current	390mA~1200mA
Power consumption	0.84W
Speed range	0~255km/h
Speed accuracy	0.5km/h
Size	180.1mmз152.2mmз50.1mm
Case color	Black
CPU chip processor	ARM7 Cortex-M3
Main frequency	72MHZ
External store capacity	8GB
CPU Flash Capacity	256K
Temperature	-20А~70А
Dot-matrix LCD Screen	240з32
Print format	Thermal print
External data port	RS232 USB DB9
RTC	DS1307 Chip offered
