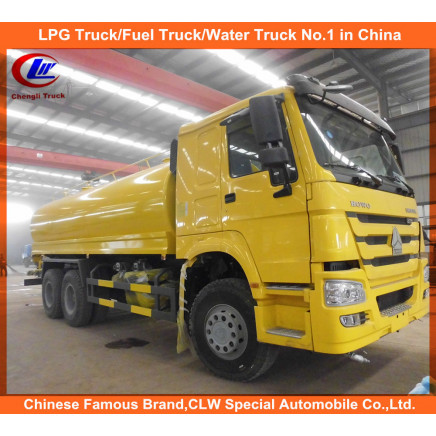

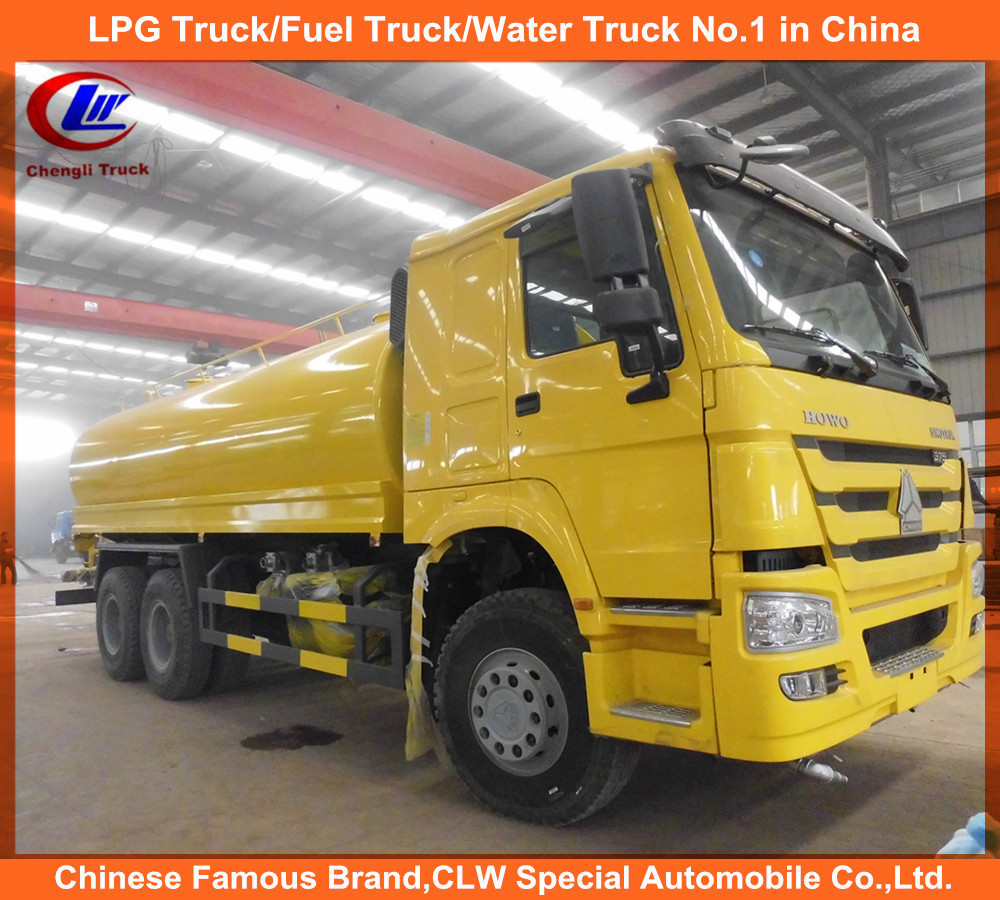

Heavy Duty Sinotruk Sino Truck HOWO Water Truck

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Heavy Duty Sinotruk Sino Truck HOWO Water Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 35000.0-39900.0/ Piece

Price:$35000.0 - $39900.0 / Piece

Trade Terms: FOB, CFR, EXW, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA

Payment Terms: T/T

Price Valid Time:From Dec 23, 2014 To Mar 23, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ5257

Volume:10001 - 15000L

Certification:ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE

Emission Standard:Euro 2

Sprinkling Area:?16m

Transmission Type:Manual

Payload:20T

Fuel:Diesel

Drive Wheel:6×4

Engine Capacity:4 - 6L

Engine Type:4 Stroke

Condition:New

Dimensions:9920*2490*3140

Watering Width:More Than 14m

Shot Range:More Than 28m

Wheelbase:4550+1350

Cab:Hw76 with Air Conditioner and Sleeper

Capacity:15cbm 20cbm 25cbm 30cbm 35cbm 40cbm

Drive Mode:LHD/Rhd

After-Sales Service Provided:Overseas Third-Party Support Available

Warranty:One Year for Three Key Parts (Engine Gear-Box Axle

Horse Power:266HP/290HP/336HP/371HP

Export Markets:Global

Additional Info.

Trademark:CLW

Packing:Naked or Waxed Before on Board by Roro

Standard:ISO, CCC

Origin:Suizhou, China

HS Code:8705909990

Production Capacity:1000set/Month

Product Description

Heavy Duty Sinotruk sino truck HOWO Water Truck dongfeng water Truck foton water truck

Water tank truck is used for watering cooling dedusting etc, and the best choice
For landscaping road maintenance fire protection
Tank material: Carbon steel(may be lined with anticorossive material), stainless steel
Tank shape: Oval, square round
Models of power supply: Transmission box side, top cover, sandwich.
Water pump: Conventional self-priming, medium pressure pump, fire fighting pump(high pressure)
The water tank truck is equipped with:
1. Front nozzle, wash road surface dust
2. Water cannon, 360 rotation and sprayer nozzle can be adjusted to the columnar and
The vaporific
3. Fire coupling, cooperate with fire hose, achieve function of emergency fire.
4. Water absorption system, equipped with special water pump and filter system
5. Rear and side sprayer nozzle, equipped with rear working system

ChengLi Special Automobile Co., Ltd which is appointed by the Development and Reform Committee of China is a famous manufacturer producing all kind of special trucks for 10 years. Labels registered CLW has roundly passed the ISO9001-2008 and the 3C(China Compulsory Certification).
Our company has independent export right and has a lot of overseas clients.
Our leading products are more than 300 kind of trucks such as Water truck, LPG truck, Fecal suction truck, Garbage truck, Refuse compactor, Sewage suction truck, Fuel tank, High-altitude operation truck, Truck with crane, Dump truck, Instructional truck, Van truck, Semi-trailer, Fire engine, Spares, Refrigerator truck, Water wagon, Tractor, High-altitude water truck, Bulk cement truck, Chemical liquid truck, Concrete mixer truck, ect.

If you are interested in our trucks, pls contact me, I will send our best quotation to you.

Contact person: Krystal Zhang
Tel: +86-15171412234

Item			unit	specification
Name				HOWO
Classis model				ZZ 5 257M4647
Actual volume			M3	20
	Total weight		kg	25000
	rated loading weight			14370
	Curb weight			10500
	truck size		mm	9920 × 2490 ×3140
	wheelbase			4550+1350
	tread	Front wheel		1939
		Back wheel		1958
	approach angle/departure angle		°	20.5/13
tire qity				11 pcs
air displacement /power			L / ps	9726 / 266
Max. speed			km / h	90
Engine			WD615.62
Fuel type			Diesel
Emission			EURO II
Transimssion			HW13710 10 forwards and 2 reverse
Front axle			HF7
Rear axle			HW1279
Steering system			ZF8098
Color			Optional
Tyre			295/80R22.5
Tyre quantity			10pcs +1 spare
Electrical system			Battery		2X12V/165Ah
			Alternator		28V-1500kw
			Starter		7.5Kw/24V
Cab			HW76 with air conditioner and sleeper, all-steel forward control, 55° Hydraulically tiltable to the front, 2 arm windscreen wiper system with speeds, laminated windscreen with casted in radio aerial, hydraulically damped adjustable drivers seat and rigid adfustable codrivers seat, with heating and ventilating system, exterior sun visor, adjustable roof flap, stereoradio/CAS stte recorder, safety belts, adjustable steering wheel, air horn, air conditioner, with 4 pointsupport fully floating suspension and shock absorbers
performance			suction ? 6m watering width ?14m shot ?28m
			Front spray and back watering, with side spray, back working table, on working table there is watering high pressure cannon (cannon spray shape can be adjustable, straight spray, heavy rain, mid rain, small rain, max shoot 28m, with watering pump, fire fighting connect head, valve, fitter and self-absorption function
accessories			One set tools, and spare parts
