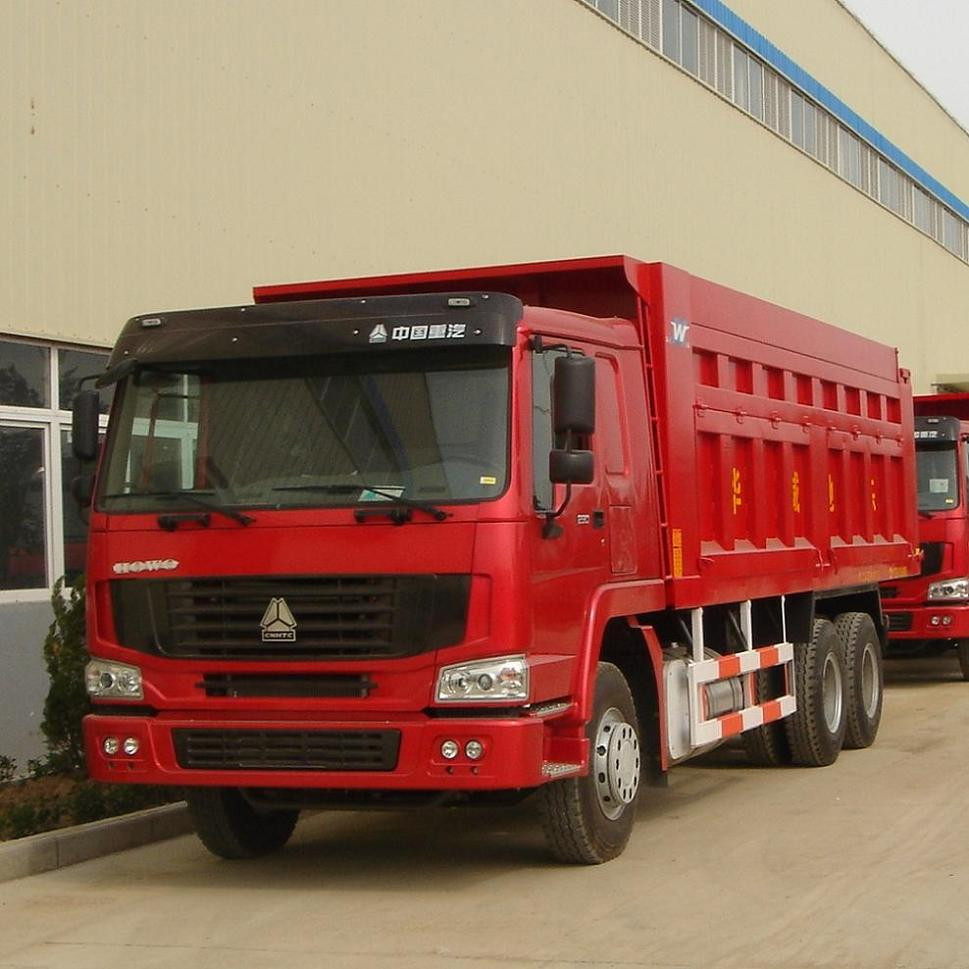

Heavy Duty Sinotruk HOWO 6X4 Dump Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$42800.0 - $43000.0 / Piece

Min. Order (Unit)	Unit Price
1.0	US $ 43000/ Piece
5.0	US $ 42800/ Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Sep 05, 2014 To Dec 05, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ3257N3847W

Transmission Type:Manual

Power:Diesel

Load Capacity:41-50t

Emission Standard:Euro 2

Drive Wheel:6×4

Engine Capacity:?8L

Seats:?5

Horsepower:351-450hp

Tire Type:ISO9001: 2008

Tire Certification:ISO

Tire Design:Tubeless

Dumping Type:Front Lifting Style

Condition:New

Truck Type:Dump Truck

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:HOWO

Packing:Nude

Origin:China

Production Capacity:15000/Year

Product Description

HW76 cabin with one sleeper and air condition,

371hp, front tipper with HYVA hydraulic system,

Dump box size: 5600x2300x1500

12R22.5 tubeless tire 11 pcs including one spare

Truck Chassis	Driving type 6x4
Cabin	HOWO 76 Standard cab, with two seats and one bed, with air condition

Vehicle Main Dimensions	Overall dimensions (L x W x H)mm		8500x2495x3300
	Wheel base (mm)		3825+1350
Weight in KGS	Tare Weight		12600
	Front axles HF9 loading capacity		9000
	Rear axles HC16 loading capacity		2x16000
	Total loading capacity		35000
Engine	Brand		SINOTRUK
	Model		WD615.47
	Type		4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)/(RPM)		371HP
	Emission standard		Euro II
Gearbox	HW19710, 10 forward & 2reverse
Clutch	Reinforced diaphragm clutch 430
Steering Gear	power steering, hydraulic steering with power assistance
Fuel tank (L)	300
Tire	12R22.5 tubeless tire 11pcs
Dump body	Dimension	Lx W x H		5600x2300x1500
	Thickness	Floor 8mm, side 6mm
Hydraulics	Tipping Type: Front tipping HYVA brand
