Heavy Duty Machinery Transport Lowboy Semi Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
2.0	US $ 18000/ Piece

Price:US $18000.0 / Piece

Trade Terms: FOB, CFR, EXW, CIF

Payment Terms: L/C, T/T, Western Union, Paypal, Money Gram

Price Valid Time:From Jan 22, 2015 To Apr 22, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:FTW9850TDP

Type:Towing Pin

Towing Pin Material:Carbon Steel

Impeller Type:Closed Type

Hook Type:Single

Universal Joint Type:Flexible Universal Joint

Brake Pad Material:Ceramic

Towing Pin Type:Mushroom Type

Towing Pin Diameter:50mm

Differential Gear Type:Gear Type

Independent Suspension Type:Trailing Arm Type

Colour:as Your Request

Size:as Your Request

Item:Machinery Transport Lowboy Semi Trailer

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:Jupiter

Packing:Nude or as Customer?s Requirement

Standard:CE, SGS, ISO, GMP

Origin:China

HS Code:87163910

Production Capacity:1000 PCS Per Year

Product Description

Heavy Duty Machinery Transport Lowboy Semi Trailer

1) Manufacturer, more than 20years professional experience.
2) CCC, SGS and ISO9001 certificate, one year guarantee term provided.
3) Any colors and logos will be available.
4) Products can be custom-made according to your design.

Dimensions: 9500*12500*13000mm
Tare Weight: 8500kg
Payload: 45000kg
Wheel track:1840mm

STANDARD SPECIFICATION OF LOWBOY SEMI TRAILER

Main Frame of Lowboy Semi Trailer: Heavy duty and extra durability designed, opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes.

1)Thickness:
You can have your own thickness.

2)Axle
Three Units German or American Style axle

3)Suspension
A couple of FUWA(Brand) mechanical 3-axle suspension, other brands are available.

4)Leaf Spring
Six sets of reliable local brand, 8 pieces leaf spring, 16X90mm, or we follow your requirements

5) King Pin
One unit of 2 Inch standard welded kingpin

6) Landing Gear
Two-speed, manually operating, heavy duty landing leg

7)Wheel Rim
Thirteen units of 8.25*22.5 rim or as your request

8)Tyre
Thirteen units of 11R22.5 Tubeless tyre or as your request

9)ABS
Available as your request

10)Spare Wheel Carrier
One set of spare wheel carrier including a riser.

11)Pneumatic Braking System
Two unit of WABCO RE 6 relay valve; Four units of T30/30 spring brake chamber; Two units of T30 brake chamber, Two unit of reliable local brand 40L air tank; Two units of reliable local brand standard coppery air-connector.

12)Electrical System
One unit of JAEGER POWAY, 24V 7-pin ISO 1185 socket; Tail lamp with turn signal, brake light & reflector, side lamp etc.
One set of DAFA(brand ) 6-pin standard Cable.

13)Painting Sand blasting processing clean rust
1. Coat of anticorrosive primer
2. Coats of finish urethane paint
3. Color as customer choice

14)Accessory
One tooling box with whole set of standard trailer tool

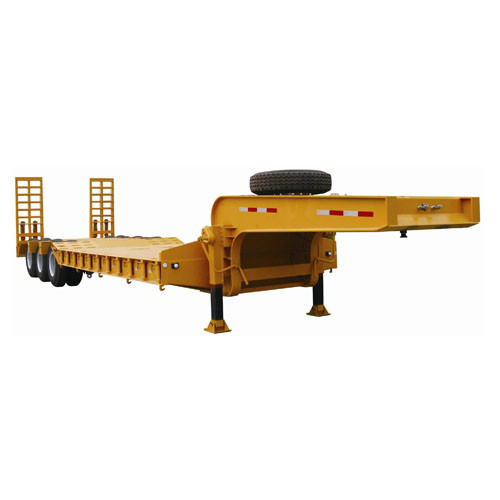

15)Pictures as below to refer

Heavy Duty Machinery Transport Lowboy Semi Trailer
