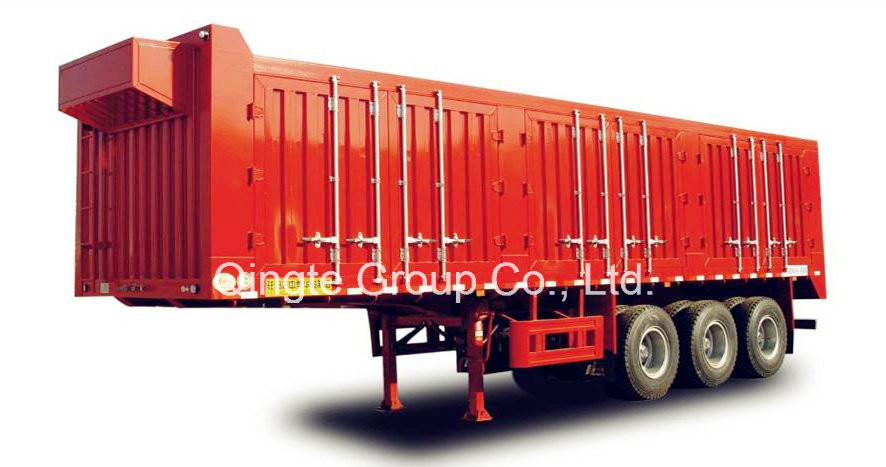

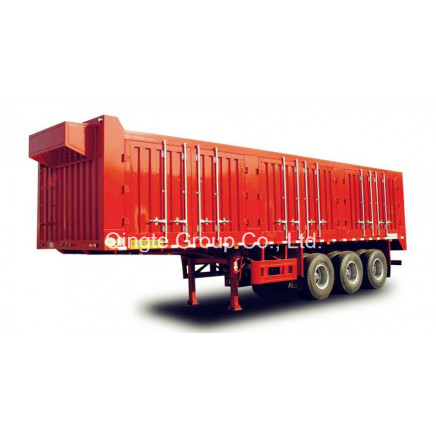

Heavy Duty Cargo Transport Semi Trailer (QDT9405XXY)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 26000/ Piece

Price:US $26000.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P

Price Valid Time:From Mar 04, 2015 To Apr 05, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QDT9405XXY

Type:Semi-Trailer

Towing Pin Material:Alloy Steel

Impeller Type:Front Semi-open Type

Hook Type:Double

Universal Joint Type:Flexible Universal Joint

Brake Pad Material:Less Metal

Towing Pin Type:Mushroom Type

Towing Pin Diameter:90mm

Differential Gear Type:Anti-slip Type

Independent Suspension Type:Cross Arm Type

Material:Steel

Scale:Heavy Duty

Certification:CE

Components:Trailer Axles

Load Capacity:50t

Model:Qdt9405xxy

Tare Weight (Kg):6700

Loading Capacity (Kg):33300

Gross Weight (Kg):40000

Dimension (Mm):11000X2550X3275

Export Markets:Global

Additional Info.

Trademark:Qingte

Packing:Nude Packing

Standard:SGS, CE

Origin:Qingdao, Shandong, China

HS Code:8716

Production Capacity:20000/Year

Product Description

Configuration of high quality
We use accessories of high quality to ensure a good performance. BPW, SAF, YUEK, JOST, WEBCO are optional. Sixteen wheels, short axles, three-line six-axles, double or triple common trailer axles are all available of reliable quality.

High standard steel material
A sturdy, durable and enforced frame of high strength steel is applied contributing to our practice-oriented, high-grade product. All of these have ensured an extremely high load-bearing performance and supply users with flexible choices from 30 tons to 120 tons.

Multi functions
External dimensions could be made according to customer's requirement, to offer you solutions for goods transporting, such as tank carrier, power generator carrier, steel slag carrier, coil transporter, high speed carrier etc...Detachable low bed semitrailer, extendable low bed semitrailer and dolly low bed semi trailer are also available. Our competent engineering team will design according to your individual request and supply you with satisfying products.

Model: QDT9405XXY

Tare Weight (kg): 6700

Loading Capacity (kg): 33300

Gross Weight (kg): 40000

Dimension (mm): 11000X2550X3275

Inner Plate size(mm): 10850X2350X1800

Wheel Base (mm): 5800+1310+1310

Overhang(Front/Rear) (mm): -/1280

Wheel Specification: 11.00R20 12PR,

12R22.5 12PR

Wheel Track (mm): 1840/1840/1840

Approach Angle/Departure Angle (° ): -/23

Plate Spring Quantity: -/7/7/7, -/4/4/4
