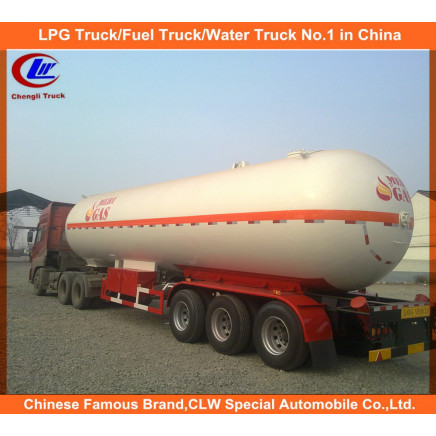

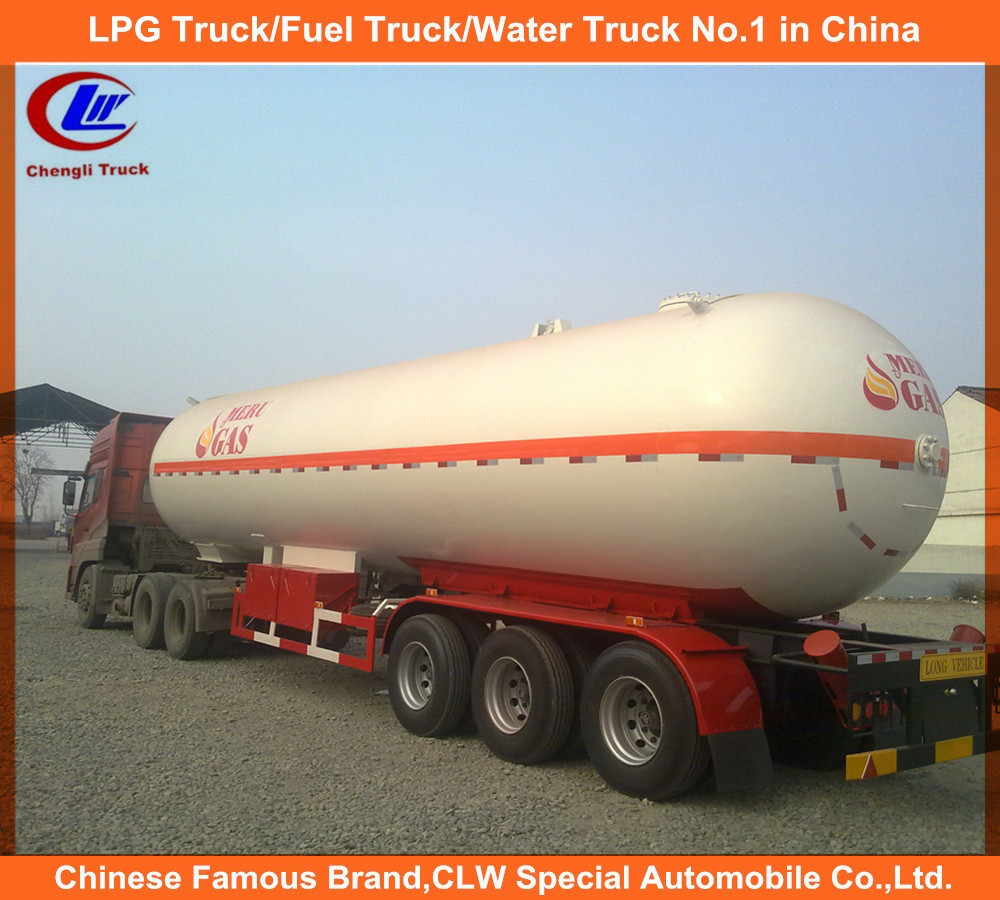

Heavy Duty Asme Standard Propane Isobutane LPG Transport Tank Truck Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 36000.0-42000.0/ Piece

Price:$36000.0 - $42000.0 / Piece

Trade Terms: FOB, CFR, EXW, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Price Valid Time:From Dec 30, 2014 To Feb 10, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CLW940GBJ14

Volume of LPG Tanker:40000L to 58600L LPG Transport Tank Trailer

Shape of End Plate:Ellipse or Round

Axle:3 Axles, BPW, Fuwa or L1 Brand

Filling Material:Propane/Propylene /Isobutane

Filling Coefficient:0.42 Ton/Cbm to 0.58 Ton/Cbm

Baffle:4-5 PCS Inside

Safety Control System:Safety Valve, Pressure Meter, Cut-off Valve

Color:as Optional for LPG Transport Tank Trailer

Tire:11r22.5 or 12r22.5

King Pin:Jost Brand, 50# or 90#

Export Markets:Global

Additional Info.

Trademark:CLW Brand

Packing:Naked Package and Waxed Before on Board

Standard:CCC, ISO 9001, TS

Origin:Hubei

HS Code:73110090

Production Capacity:800 Unit/Month

Product Description

Heavy Duty Asme Standard Propane Isobutane LPG transport Tank truck Trailer

Production notes:
1, certificate ISO9001, 3C, ASME
2 High quality, low price
3 Loading LPG tanker volume 58.5m3
4 Fuwa, L1 or BPW 3 axles.
5, Very Safety Control System: Float liquid indicator, built-in safety valve, emergency cut-off valve, ball valve and etc.

LPG Tamk Semi Trailer is also called LPG Semi -trailer truck, LPG semitrailer transport truck, is widely used in transporting kinds of LPG. It has large loading quality, safe, stable, etc features.

About our company

LPG tanker is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.

Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
LPG tanker trailer brief Introduction

We sincerely welcome you to visit our factory and provide your precious suggestion for us!

Sales Manager: Helen Jiang
Cell+86 135 5419 5719

Item			Unit	Parameter
Product				doble-bridge LPG Pressure Vessel Semi-trailer(CLW9310GYQ)
Capacity			M 3	40.5cbm to 58.6cbm
The total mass			kg	30910
Work in mass				13920
Rated contained mass				166990
Vehicle Demension			mm	11324×2500×3730
Axles				2
Wheelbase				6800+1320
Track base	front			-
	rear			1320
Front hanging/Rear hanging			mm	-/1500
Number of leaf spring piece (front / rear)				-8/8
Semi-trailer saddle maximum permissible load mass			kg	16000
Tire Size				11R22.5 tubeless tire, or 12R22.5 tubeless tire
configuration		Vessel material	Q345R,16MnIII, Q370R
		Standard configuration	12-ton BPW or FUWA, L1 brand shaft, valve cover, single-fluid two-valve boxes, legs, traction pins, liquid level gauge, pressure gauge, thermometer, emergency shut-off valve, fire extinguishers, fire star cover, anti-static grounding tape, fence, tire fenders
		Others	Storage for: LPG (propane);
			design pressure 1.77Mpa;
			design temperature 50 °C;
			filling density: 0.42T/M 3 ;
			corrosion margin: 1mm;
			tank dimension: 11058* 2332mm
		Industry Protocol	GB150-1998 "Steel Pressure Vessels," Pressure Vessel Safety technical monitoring procedures, LPG safety inspection procedure
