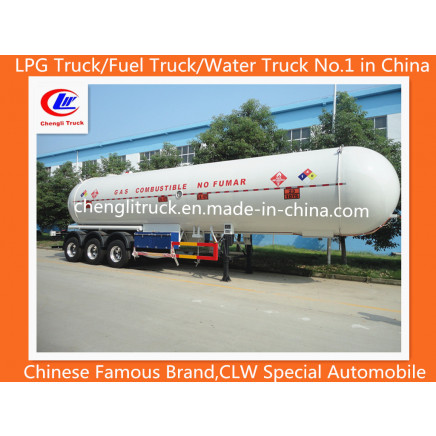

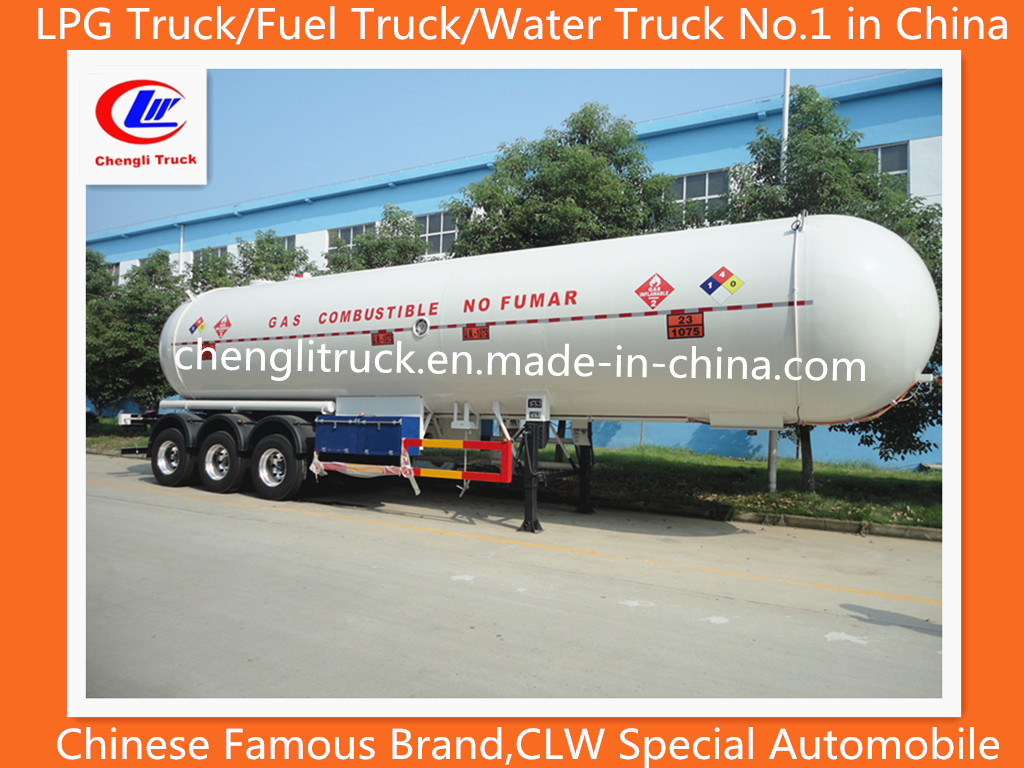

Heavy Duty 58000L 3 Axles LPG Tank Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 36000.0-42000.0/ Piece

Price:$36000.0 - $42000.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Nov 27, 2014 To Feb 10, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CLW9409GYQ

Function:Storage Pressure Vessel

Application:Liquefied Gas

Material:Carbon Steel

Pressure:1.6MPa?p<10.0MPa

Storage Medium:Flammable/Toxic

Pressure Level:Medium Pressure (1.6MPa?p<10.0MPa)

Condition:New

Volume of The Tank:58000L

Shape of End Plate:Ellipse or Round

Number of Alex:3 Axles

Filling Material:Propane/Propylene /Isobutane

Filling Coefficient:0.42

Baffle:4-5 PCS Inside

Safety Control System:Safety Valve, Pressure Meter,Ect

Color:Optional

Tire:11r22.5 12r22.5

External Dimensions:13000*2500*3990

Export Markets:Global

Additional Info.

Trademark:CLW Brand

Packing:Naked Package and Waxed Before on Board

Standard:CCC, ISO 9001, TS

Origin:Hubei

HS Code:73110090

Production Capacity:800 Unit/Month

Product Description

About our company

LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.

Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Lpg tanker trailer brief Introduction

Cheng Li produced a liquefied gas storage tanks in series, can be used to store the different nature of the liquefied petroleum gas (propane), propylene, ammonia, dimethyl ether, methanol, butadiene, butane, ethylene oxide, methylamine, etc. In low pressure liquefied gases at room temperature; Volume from 10 cubic meters --- 100 cubic optional.
Chengli pressure components of the productIion materials, size and weld quality, operation quality, installation quality, safety valves and shut off valves devices and accessories within the strict qualification, inspection, test. The tank materials on physical and chemical tests such as: Mechanical properties and chemical composition.
The tank welded joints, welding line, tank head, the pressure of the geometric location of each component through rigorous X-ray non-destructive testing and magnetic particle testing inspection.
Seal on the product, pressure, and those who can affect the operation of product safety testing various technical indicators.
A, B Class 100% ray weld inspection, II level qualified
C, D Class welds 100% magnetic particle inspection, I level qualified

Item			Unit	Parameter
Product				doble-bridge LPG Pressure Vessel Semi-trailer(CLW9310GYQ)
Capacity			M 3	40.5
The total mass			kg	30910
Work in mass				13920
Rated contained mass				166990
Vehicle Demension			mm	11324×2500×3730
Axles				2
Wheelbase				6800+1320
Track base	front			-
	rear			1320
Front hanging/Rear hanging			mm	-/1500
Number of leaf spring piece (front / rear)				-8/8
Semi-trailer saddle maximum permissible load mass			kg	16000
Tire Size				11.00-20
configuration		Vessel material	Q345R,16MnIII
		Standard configuration	12-ton BPW shaft, valve cover, single-fluid two-valve boxes, legs, traction pins, liquid level gauge, pressure gauge, thermometer, emergency shut-off valve, fire extinguishers, fire star cover, anti-static grounding tape, fence, tire fenders
		Others	Storage for: LPG (propane);
			design pressure 1.77Mpa;
			design temperature 50 °C;
			filling density: 0.43T/M 3 ;
			corrosion margin: 1mm;
			tank dimension: 11058* 2332mm
		Industry Protocol	GB150-1998 "Steel Pressure Vessels," Pressure Vessel Safety technical monitoring procedures, LPG safety inspection procedure
