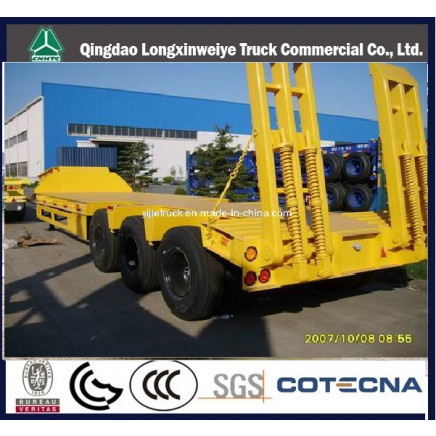

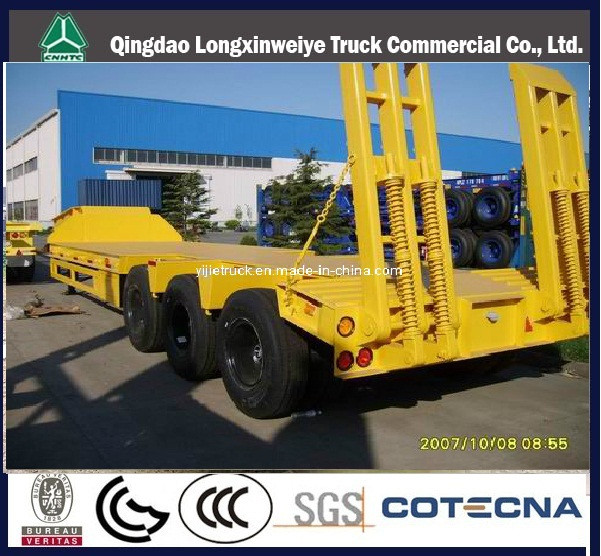

Heavy Duty 3 Axles Low Bed Transport Semi Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Unit)	Unit Price
1.0	US $ 13000.0-19000.0/

Price:$13000.0 - $19000.0 / Unit

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Oct 21, 2014 To Jan 21, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CQS9390TDP

Type:Axle

Towing Pin Material:Carbon Steel

Impeller Type:Closed Type

Hook Type:Single

Universal Joint Type:Rigid Universal Joint

Brake Pad Material:Semimetal

Towing Pin Type:Mushroom Type

Towing Pin Diameter:90mm

Differential Gear Type:Gear Type

Independent Suspension Type:Cross Arm Type

Material:Steel

Scale:Heavy Duty

Components:Trailer Axles

Load Capacity:30t

Export Markets:Global

Additional Info.

Trademark:CIMC

Packing:Nude Packing

Standard:Europe standard

Origin:Qingdao, China

Production Capacity:60000 Sets/Year

Product Description

Heavy Duty 3 Axles Low Bed Transport Semi Trailer

1) R&D method: Advanced design methods like Solidwords and AutoCAD systems are Adopted, which help to allocate track, make distance between pin and axle is Reasonable, guarantee right distribution of loading duty, and enable reliable Quality. Our order-oriented design and production meet our clients' needs reatly
2) Surface spraying: Through fine working processes including pretreatment, tire
Vehicle shot blasting, priming treatment and surface coating with name brand Paint, the outlook and anti-erosion ability can be guaranteed
3) Body structure: Main steel structure adopts 16Mn lowly alloyed steel, with 1.5 Times yield strength of plain steel, produced by powerful steel manufacturers of China. Main beams are optimized in design, with best loading capability
4) Cutting: Uses advanced decoiler and evener, hydraulic cutter, and plasma CNC
Cutter to guarantee quality
5) The use of carbon-dioxide arc welder guarantees welding intensity and outlook
6) Main beam welding: Uses the imported Carlig arc-submerged welder to guarantee Loading capacity and anti-impulse ability of the entire vehicle

Heavy Duty 3 Axles Low Bed Transport Semi Trailer
Tare Weight	About10T
Dimension	13000×3000×1600mm (adjustable)
Working size	9000mm3000mm1000mm
Loading Capacity	40T
Axle	There Units of FUWA(brand) 13 Ton axle
Rim	8.25-20 China Brand
Tire	11R20 Ttriangle Brand
Suspension	mechanical suspension
Spring leaf	90(Width)mm×13(Thickness)mm×10(Layer)
King pin	2.0 or 3.5inch bolts type or Welding type
Support leg	China brand FUWA 28Tons (Double speed)
Ladder	Mechanical OR Hydraulic foldable ladder ,L 3000 mm, W 1000 mm.
Main beam	Height: 500mm, upper plate thickness is 14mm, middle plate thickness is 12 mm, down plate thickness is 16mm; Material is Q345 Carbon Steel.The floor is 3mm ,Material is Q235 carbon steel.
Side beam	35mm channel steel
Brake chamber	6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks
ABS	Optional
Valve	WABCO valve
Light	LED light
Electrical System	One unit 24V 7-pin ISO 1185 socket; two sets of reliable, local brand standard rear light, turn light, rear reflector, side light, side reflector etc. One set of 6-core standard Cable
Tool box	One piece, 1m×0.5m×0.5m(Size can be chosen freely)(equipped with 1 unit tyre spanner, 1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paints.
