Heavy Duty 3 Axle 58000liters LPG Tank Semi Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 38000.0-41800.0/ Piece

Price:$38000.0 - $41800.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Jan 15, 2015 To Feb 10, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CLW9403GYQ

Function:Storage Pressure Vessel

Application:Liquefied Gas

Material:Carbon Steel

Pressure:1.6MPa?p<10.0MPa

Storage Medium:Flammable/Toxic

Pressure Level:Medium Pressure (1.6MPa?p<10.0MPa)

Condition:New

Volume of LPG Gas Tanker:40000L to 58600L

LPG Gas Tank Shape of End Plate:Ellipse or Round

Axle:3 Axles, BPW, Fuwa or L1 Brand

LPG Tanker Filling Material:Propane/Propylene /Isobutane

LPG Tank Filling Coefficient:0.42ton/Cbm to 0.58ton/Cbm

Baffle:4-5 PCS Inside

Safety Control System:Safety Valve, Pressure Meter, Cut-off Valve

Color:as Optional

Tire:11r22.5 or 12r22.5 Tubeless

King Pin:Jost Brand, 50# or 90#

Export Markets:Global

Additional Info.

Trademark:CLW Brand

Packing:Naked Package and Waxed Before on Board

Standard:CCC, ISO 9001, TS, ASME, ADR

Origin:Hubei

HS Code:73110090

Production Capacity:800 Unit/Month

Product Description

3 Axle LPG Semi Trailer 3 Axle LPG Transport Semi Trailer 3 Axle LPG Tank Semi Trailer 3 Axle LPG Semi Trailer
1, certificate ISO9001, 3C, ASME
2 High quality, low price
3 Loading LPG tanker volume 40cbm to 58.5cbm
4 Fuwa, L1 or BPW 3 axles.
5, Very Safety Control System: Float liquid indicator, built-in safety valve, emergency cut-off valve, ball valve and etc.

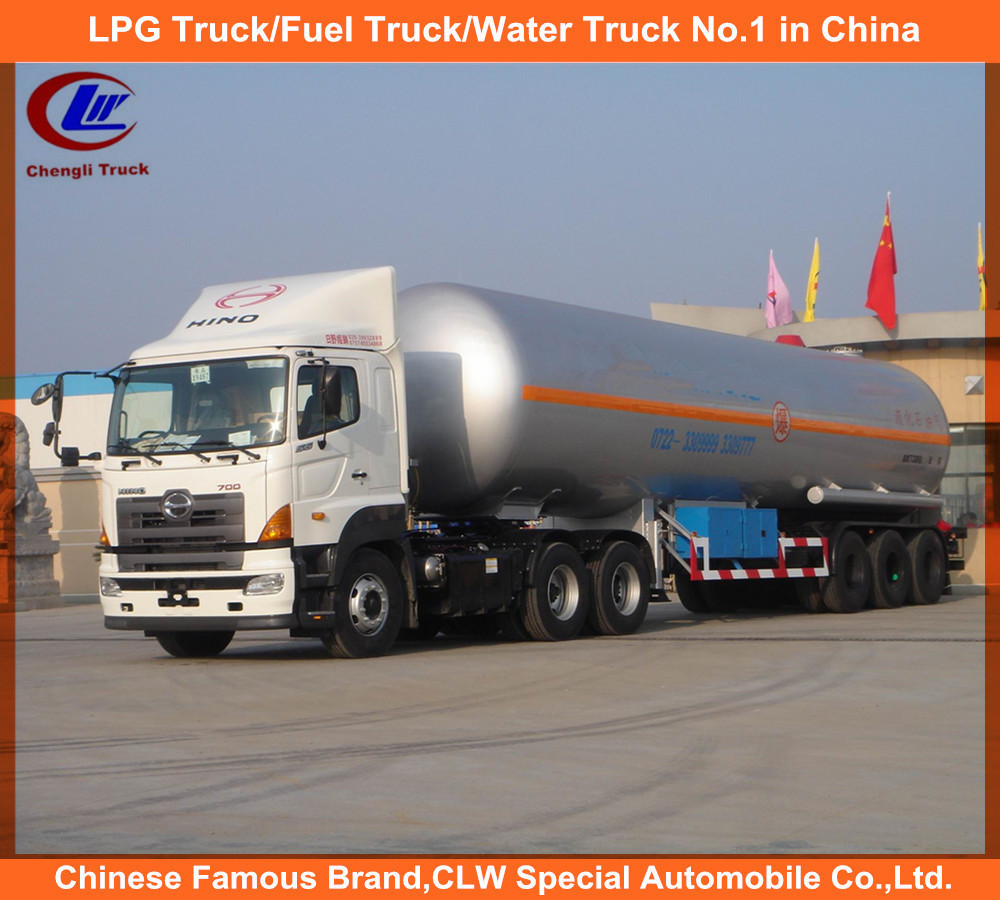

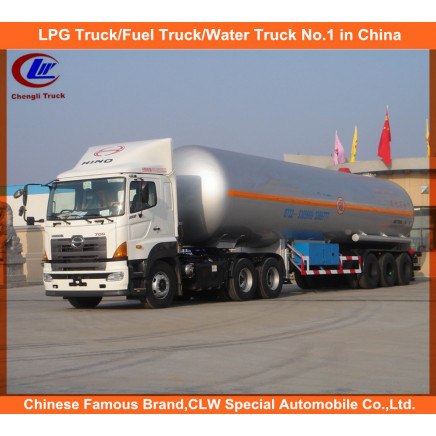

LPG Tank Semi Trailer is also called LPG Semi -trailer truck, LPG semitrailer transport truck, is widely used in transporting kinds of LPG. It has large loading quality, safe, stable, etc features.

About our company

LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.

Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

If you are interested in our trucks, pls contact me, I will send our best quotation to you.

Contact person: Krystal Zhang
Tel: +86-15171412234

Dimension
Tare Weight	1 543 0KGS
Pay Load	2 457 0KGS
Overall Length	1 30 00mm
Overall Width	2 50 0mm
Photo for reference, finial product can be made according to exact requirements
Tank
Transporting Media		Dimethylmethane, Liquid Ammonia, Liquid SO2, LPG,Butane
Shape		Round Shape
Total Volume ( m3 )		5 8.5 CBM
Tanker Body Steel Sheet		Q235A/14mm
End plate		Q235A14mm, by punching
Parts for Tank
Manhole cover		3 sets of 500mm/Q235 manhole fixed on top of Tank, with breather valve
Unloading valve		2-3 sets of DN80 fixed at button of Tank
Pipeline at button of tank		4"seamless steel tube/Q235
Labeling system		Oil Type Indication
Anti-static electricity system		pulling, wire carrier, sheet copper (6 sheet-standard layout)
Other Parts
Ladder		1 unit at front of Tank
Guard on top of Tank		Zinc galvanized –guard-net
Oil hose box		Circular single hole tube, 1 unit on each side
Oil hose		2 unit, 3" x 6m size in black rubber
Side guard		cross bar-structure
Rear button guard		Fixed type
Work tank deck		Box type
Fire extinguisher box		2 unit at the back of each side
Mud guard		Steel structure in trapezoid form
Lights and wire		24V, 7 coils with lights for parking, reverse, instruction, head lamp and end lamp
Chassis
Main Beams		Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes
Axle		3 axle
		BPW brand FUWA brand
Landing Gear		JOST Two-speed, manual operating, heavy duty landing gear
King Pin		JOST 2"standard bolt-in king pin
Suspension		German design mechanical suspension
Pneumatic Braking System		WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
Wheel rim		8.25R22.5 wheel rim
Tire		11R22.5 tubeless tire with one spare tire
Painting		Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
