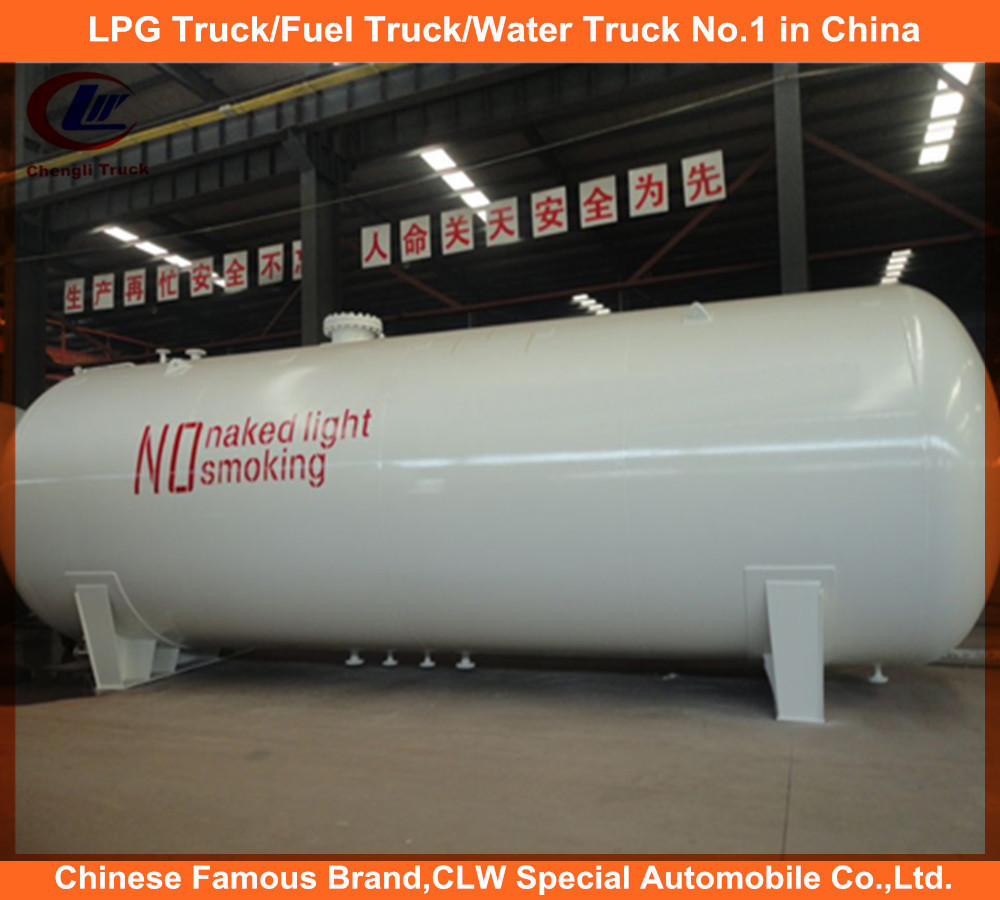

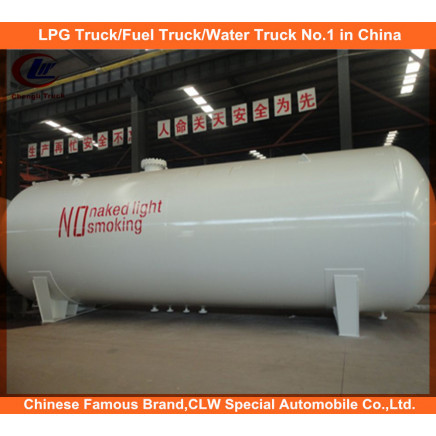

Heavy Duty 100cbm Glassed Lined Pressure Vessel

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 29900.0-32900.0/ Piece

Price:$29900.0 - $32900.0 / Piece

Trade Terms: FOB, CFR, EXW, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Price Valid Time:From Dec 15, 2014 To Mar 15, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CLWP14004

Function:Storage Pressure Vessel

Application:Liquefied Gas

Material:Carbon Steel

Pressure:1.6MPa?p<10.0MPa

Storage Medium:Flammable/Toxic

Pressure Level:Medium Pressure (1.6MPa?p<10.0MPa)

Condition:New

Volume:20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 100cbm

Loading Medium:Gas, Oil, Petroleum, Propane, Pentane Tank

Mechanical Property Test:Tensile, Strength, Impact Test for Butanetank

Designed Pressure:1.77MPa

Corrosion Allowance:1mm

Medium Density:420kg/M3

Safety Parts:Pentane Tank Discharging Valve, Manholes Cover, D

Shape:Round Shape or Ellipse

NDT:Mt Ut Rt 100% Perform for Pentane Tank

R&D:CAD and Cae Technology

Export Markets:Global

Additional Info.

Trademark:CLW

Packing:RO-RO Bulk Naked Contaienr

Standard:ISO9001, CCC

Origin:Hubei

HS Code:8901101010

Production Capacity:1000 Set Per Year

Product Description

100CBM Glass Lined LPG Pressure Vessel
1. LPG pressure vessel
2. For gas, oil, petroleum use
3. Anti-corrosion, anti-acid

Chengli Special Automobile Co., Ltd
1. We are a group company with one years quality guarantee.
2. We have advanced technology and equipments, mature experience.
3. We are leading manufacturer in China, the price of our trucks are competitive.
4. We have modern management system, the delivery time are on time.
5. We exports many trucks over the world. We have professional sales team.

Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
13. Pressure Vessel

If you are interested in our trucks, pls contact me, I will send our best quotation to you.

Contact person: Krystal Zhang
Tel: +86-15171412234

	Volume (cbm)	DN (mm)	Thickness (mm)		Quality(kg)		Overall Dimension(mm)
	Volume (cbm)	DN (mm)	Shell	Head	Tank	Filling	Overall Dimension(mm)
Filling Medium liquid amonia Pressure 2.05MPa Corrosion Allowance2mm Medium Density520kg/m2	20	2100	16	16	6400	9880	6162x2132x2710
	25	2100	16	16	7760	12350	7762x2132x2710
	32	2400	16	16	8920	15808	7516x2432x3010
	50	2400	16	16	13100	24700	11516x2432x3010
	50	2800	20	20	14470	24700	8620x2840x3420
	80	2800	20	20	20980	39520	13520x2840x3420
	80	3200	22	22	21710	39520	10524x3244x3830
	100	2800	20	20	26010	49400	16740x2840x3420
	100	3200	22	22	26190	49400	13024x3244x3830
Filling Medium Dimethylether Pressure 1.15MPa Corrosion Allowance1.5mm Medium Density580kg/m2	50	2700	10	12	8620	27550	9174x2724x3310
	65	2700	10	12	10480	35815	11824x2724x3310
	80	2700	10	12	12280	44080	14454x2724x3310
	80	3200	12	12	13080	44080	10504x3224x3810
	100	3200	12	12	15560	55100	13004x3224x3810
	120	3400	12	14	17940	66120	13808x3424x4010
Material of tank and main pressure parts			Q345R/Q370R
Standard			GB150 TSG R0004-2009
Safety valve of selection fitting			Safety valve, column magnetic reversible level meter, pressure gauge, thermometer, cut-off valve
