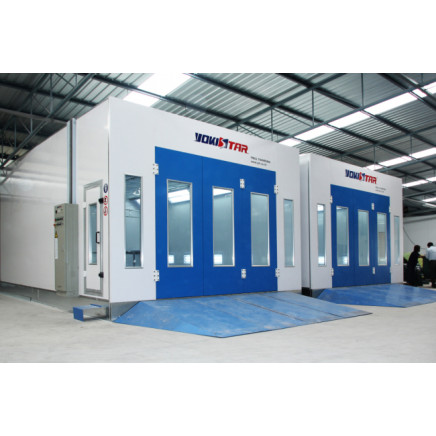

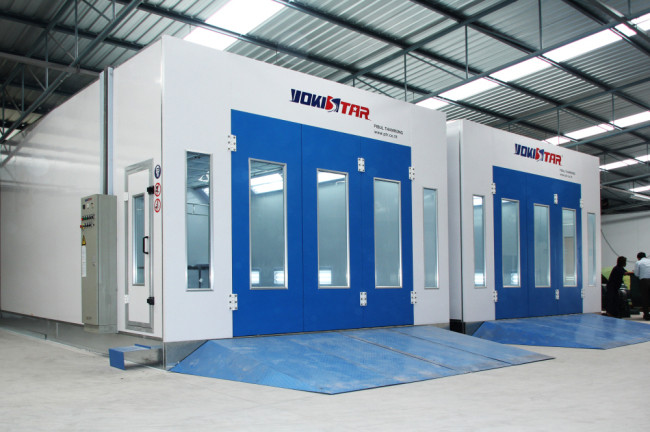

Heated Paint Booth Downdraft Vehicle Spray Booth

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Set

Trade Terms:FOB, CFR, CIF, EXW

Payment Terms:L/C, T/T, Cash

Trademark:YOKISTAR

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:YS-30

Certification:CE

Airflow Direction:Full Downdraft Airflow Way

Heating Mode:Diesel

Paint Mist Treatment:Dry-type

Condition:New

Ventilation:Full Downdraft Airflow Way

Air Intake:2X4kw Double-Intake Centrifugal Fans

Air Exhaust:1X5.5kw Double-Intake Centrifugal Fan

Heating:Riello G20 Diesel Burner

Voltage:1X220V, 3X380V, Your Special Voltages Are Accepted

Optional Colour:White, Blue, Orange and Red

Port:Huangpu Port or by Your Order

Main Product:Spray Booth, Prep Station, Infrared Curing System

Export Markets:Global

Additional Info.

Trademark:YOKISTAR

Packing:Bubble Film Packing for Sea Transportation in Bulk

Standard:20?GP can load 1 set, 40?GP 2 sets, 40`HQ 3 sets

Origin:Guangzhou, China

HS Code:84198990

Production Capacity:120units/Month

Product Description

Model:YS-30
Inside dimention:6900*3900*2650mm L*W*H
Any Size Requirements Can Be Met.
Vulgarized, full-fledged and marketable

A. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products.
B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.

Warranty
The goods are guaranteed for 24 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.

YOKISTAR Products

High quality and advanced technology are applied in YOKISTAR product ranges, involving automotive spray booth, bus and truck spray booth, prep station, mixing room, bench spray booth, open face spray booth and infrared curing lamp.

1, With CE
2, We Can design all different types of t.he spray booth,
3, The delivery time of the standard spray booth is within 15working days

	YS-30
	Practical Booth
Room body	Standard room body
Wall panel	50mm, EPS wall panel
Main door	Folding door, 3 folds, 3000в2600 mm(WвH), with aluminum alloy cover frame, colour : blue.
Basement	Galvanized steel assemble, 300mm high, quadrate steel support, 5 rows of grilles made by flat bar and twisted steel, then galvanized. 2 ramps, external setting, 750в2000mm/pc.
Intake air system	2в4KW double-intake centrifugal fans for intake air, model YDW4.5L1, air capacity: 25000m3/h.
Exhaust air system	1в5.5KW double-intake centrifugal fan for exhaust air, model YDW4.5S, air capacity: 15500m3/h.
Damper actuates	electric damper actuates from spraying to baking cycle,electric damper for exhaust air
Heating system	RIELLO G20 diesel burner, stainless steel heat exchanger, Max. heating productivity: 20000kcal/h.
Filter system	Intake air pre-filter,ceiling filter,fibreglass filter,activated carbon filter

Lighting system	Ceiling lights: 8unitsx4pcs=32pcsx36W
Lighting system	Side lights: 8unitsx2pcs=16pcsx30W
Control system	spraying,heat spraying,baking,time setting,lighting switch,failure indicator,thermostat,power supply switch,emergency stop,hour meter.All motors are full voltage start.
Total power	15.5KW
