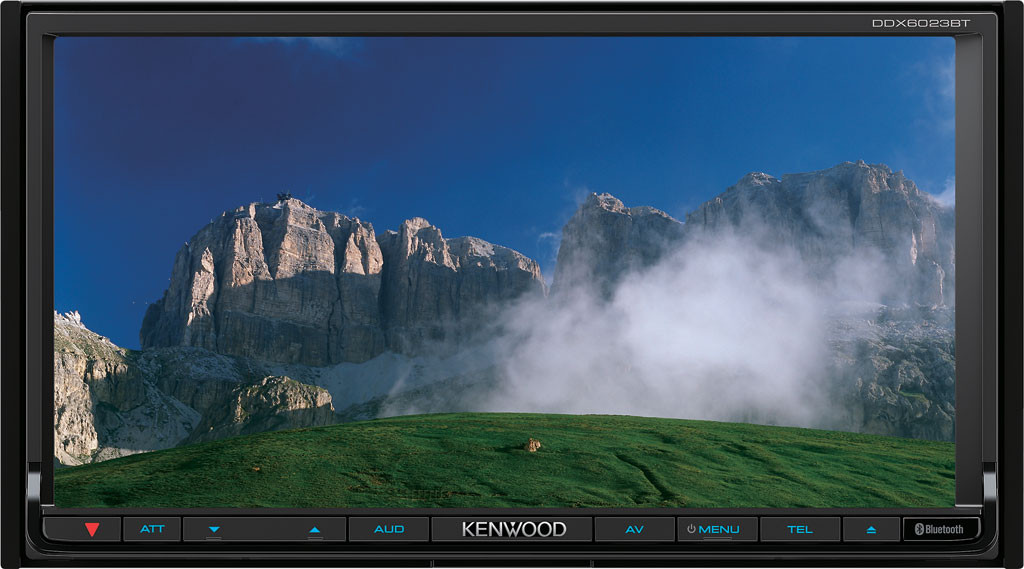

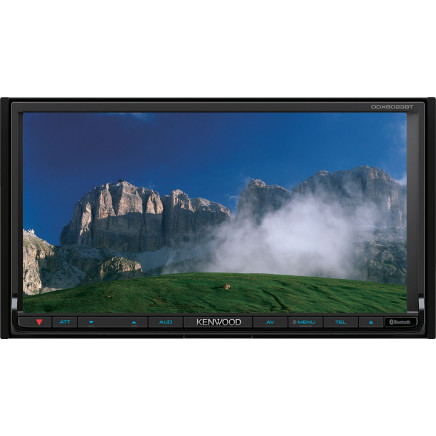

HD Kenwood GPS Navigation Box with 3G Module

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB

Payment Terms:T/T, Western Union

Trademark:Lsailt

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:LLT-KW3001

Type:GPS Navigator

Use:Automotive

Operating Principle:Interferometric Type

Port Number:Multiplex Multi-purpose Channel

Model:Integration Type

Screen Size:7"

Carrier Frequency:Dual-Frequency

Brand:Kenwood

Frequency:664MHz+336MHz DSP/800MHz

Main Chip Model:Sirf Atlas V/Msb2531

Memory:128MB/256MB

Storage Space:128MB(Can Expand to 8GB)

Operating System:Wince6.0 Core

Resolution:800*480(Selection by Resistor)

Sound Output:Dual Channel CD Stereo Sound

Operating Voltage:DC 9-16V

Tracking Sensitivity:~161dBm

Positioning Accuracy:10m, 2D RMS, 5m, Waas Enable

Export Markets:Global

Additional Info.

Trademark:Lsailt

Packing:Standard Export Box

Standard:CCC, CE

Origin:Shenzhen

Production Capacity:50000PCS

Product Description

Kenwood special navigation module(HD)

Brand: Lsailt

Module number: LLT-KW3001

Installation advantages

1) Nondestructive installation design, which does not damage to the wires of original car; Special interface cable, plug-up installation without wire cut;

2) Choose installation functions freely(Bluetooth optional);

3) Technology is reliable, take the original agreement;

4) After the upgrade, it still retains all the functions of the original host, even if navigation goes wrong, does not affect the function of the use of the original car;

5) After-sales service is convenient, replace the adapter module directly, compare with special machine, it's simple, less risk, safety and reliable
6) Choose beautiful interface by yourself;

7) Achieve handwritten navigation, and control the navigation by touching it. Compare with the original navigation module, it's more convenient and flexible.

Product accessories

Mainframe	1(standard configuration)
Dedicated wire	1(standard configuration)
Antenna	1(standard configuration)
Specification	1(standard configuration)
certification	1(standard configuration)
Warranty card	1(standard configuration)
Microphone	1(optional configuration)
Speaker	1(optional configuration)
Map card	1(optional configuration)
Mute dedicated line	1(optional configuration)
Product parameters

Frequency:	664MHZ+336MHZ DSP/800MHZ
Main chip model:	Sirf Atlas V/MSB2531
Memory:	128MB/256MB
Storage space:	128MB(can expand to 8GB)
Navigation software storage:	SD card
Operating system:	WINCE6.0 CORE
Supported audio and video formats:	MP3/PCM/WMA/ Mp4/mpeg/mpg/asf/wmv/mov etc.
Support video type:	Mp4/mpeg/mpg/asf/wmv/mov etc.
Video output format:	Composite Video(CVBS,Y/C,YPbPr)/ Analog RGB
Video output voltage:	1.0Vpp/75?
Resolution:	800*480(selection by resistor)
Sound output:	Dual channel CD stereo sound
Operating temperature:	~40蚓 to +85蚓
Storage temperature:	~40蚓 to +100蚓
Operating voltage:	DC 9-16V
Tracking sensitivity:	~161dBm
Positioning accuracy:	10m, 2D RMS,5m, 2D RMS, WAAS enable
GPS Antenna type:	External active ceramic antenna

For models:DDX-5036/630bt/4038/7036/8036 etc. all machine with NAVI interface . (800X480))
Statement:All brands on this website are belong to original company, if do not want to use this website, please note in time and delete.
