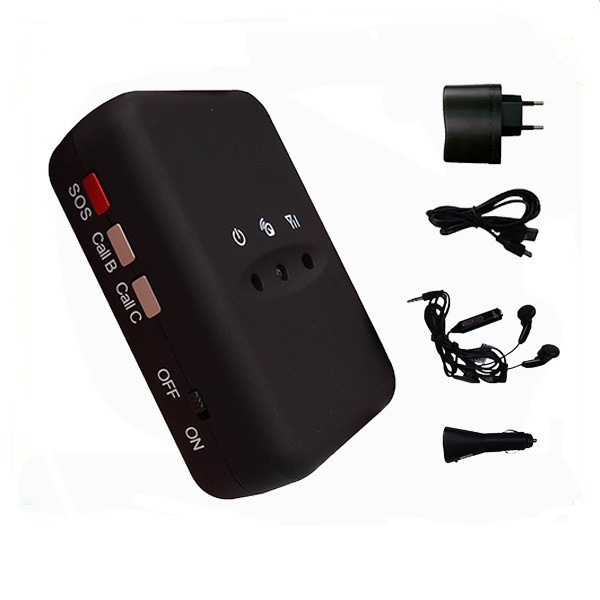

Hand Held Use GPS Personal Potable Tracker PT30

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:100 Pieces

Trade Terms:FOB, CFR, CIF

Payment Terms:T/T, Paypal, Western Union

Trademark:Topshine (supported OEM/ODM)

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:PT30

Type:GPS Tracker

Use:Automotive&Hand Held

Operating Principle:Mixed Type

Port Number:Multichannel

Model:Set-real Type

Screen Size:No

Carrier Frequency:Dual-Frequency

Chip:Ublox7

Brand:Topshine

Certification:CE+RoHS

Export Markets:Global

Additional Info.

Trademark:Topshine (supported OEM/ODM)

Packing:Neutal Color or White Box 22*16.5*5.5cm

Standard:CE, RoHS

Origin:Guangzhou, Guangdong

Production Capacity:10, 000sets/Per Month

Product Description

Hand Held Use GPS Personal Potable Tracker PT30

PT30 provides an easy way to track your targets and provides peace of mind by showing you with your mobile phone or PC the location of your targets via SMS or GPRS.

Applications
* People tracking & security, like the Kids, the Elderly, the tourists
* Assets tracking & security
* Pets tracking & Security

Product Features
* No installation, mini size, easy taken
* Track by SMS/GPRS (TCP/UDP)
* Track on Demand
* Real Time tracking via the web-platform
* Track by time Interval
* Two-way conversation
* SOS panic button
* Built-in backup 950mAh battery, normal working, it can work 12 hours, sleep mode, can work 24 hours.
* Geo-fence Alarm
* Built-in sensor for power saving & GPRS flow saving mode (sleep mode)
* Speeding Alarm
* GOOGLE map URL for location via SMS, which shows you location on map via mobile phone.
* Built-in 2MB memory & position logging capacity up to 10, 000+waypoints even no GPRS signal
* Get the physical address name via SMS.
* Three buttons for making phone call and/ or sending message

Items	Specifications
Dimension	775125mm
Weight	96g
Charging Voltage	DC 4.5V~5.5V/400mA(Mini USB port)
SIM card type	3V
Power consumption	Active mode(peak) < 1.0A Active mode(avg.) < 300mA
Operating Temperature	-20degree~+ 75degree
Humidity	Up to 75% non-condensing
External Antenna	Connected via 50? coax connector
External SIM Card	Connected via SIM card connector
Button	1 SOS and 1 power on/off
Microphone	Optional
Transmit Power	Class 4(2W) for E-GSM 900 and 850 Class 1(1W) for DCS 1800 Class 1(1W) for PCS 1900
Sensitivity	-104dBm minimum for E-GSM 900 AND 850 -102dBm minimum for DCS 1800 -102dBm minimum for PCS 1900
GPS Chip	Latest GPS SIRF-Star III chipset
Speech Codec	Triple rate Codec Half rate_ETS 06.20 Full rate_ETS 06.10 Enhance full rate_ETS 06.50/06.06/06.08
GPRS	Multi-slot Class 8(4Rx, 1Tx., 5slot Max.) Support all 4 coding schemes(CS-1,CS-2,CS-3 and CS-4) Maximum download speed is 85.6kbps Maximum upload speed is 21.4kbps
I/O	3 panic button 1 MIC port 1 USB port
