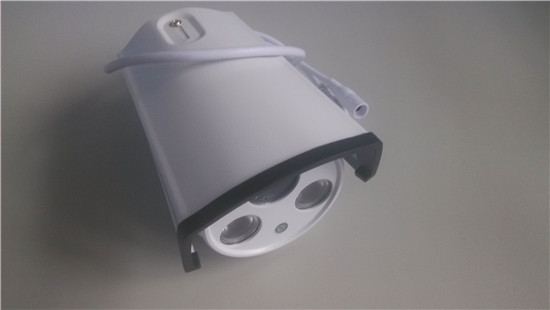

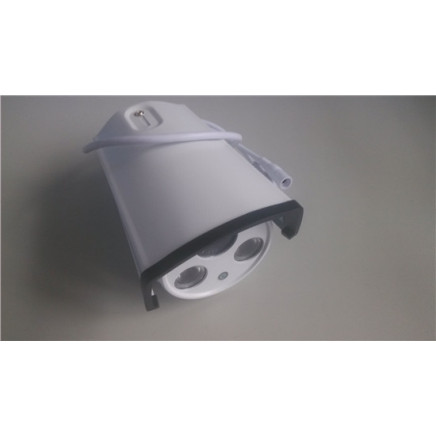

H. 264 Video Compression IP Camera with Array LED Mobile Monitoring 40m Wired IR

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:200 Pieces

Trade Terms:FOB, CFR, CIF, DAT, FAS, DDP, DAP

Payment Terms:T/T

Trademark:Fortune Mount International Ltd

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:IPC-AP613E

Technology:Infrared

Style:Bullet Camera

Type:IP Camera

Sensor:CMOS

HDMI Format:960P

Kind:Autofocus Lens

Certification:CE, FCC, RoHS

Feature:Waterproof / Weatherproof, High Definition, Vandal-proof, Auto BLC

Effective Distance:?30m

Sensor Size:1/3 inch

Remote Control:With Remote Control

Image Sensor:Hi 3518c+Ar0130

IR Length:40m

Lens:4mm,6mm,8mm

Ethernet:10/100m Ethernet, RJ45 Port

Onvif2.0:Support

Network Transmission:P2p Penetrate Automatic Forwa

Export Markets:Global

Additional Info.

Trademark:Fortune Mount International Ltd

Packing:655mm*435mm*450mm; 30PCS /Carton

Standard:CE, FCC

Origin:Shenzhen, China

Production Capacity:50000 PCS/Year

Product Description

Application

Bank,The factory,The parking lot,Square,Shopping center,The airport,The bus station,The supermarket,Prison,Office Building,The meeting,Park,Chemical,
Oil,Mine,Community.
This product is a research and development of standing in the customer's point of view, can improve the safety of living environment, to create a comfortable living environment. we insists on the principle of "customer first", making our products more satisfactory to our customers' needs, listening to them more patiently, providing them prompt and superior service and technical support.

Features

40M wired IR IP camera,
RJ45, 12V DC output,
Support IE,mobilephone and CMS view
Support NVR
Support network protocol:RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/ONVIF ect
Support one channel audio input, one channel audio output
Remote view and management by IE and client software (CMS)

SPECIFICATIONS
Product Type	IP Camera
Image Sensor	Hi 3518E+OV9712	Hi 3518E+AR0130	HI3516C+AR0330
Effective Pixels	720P 1280×720	960P 1280×960	1080P 1280x1080
Video Compression	H.264
Video frame rate	25FPS
Video bit rate	128Kbps~8Mbps
safety performance	safety
Synchronization	Internal Synchronization
SNR	44DB
Minimum illumination	0Lux(IR ON)
Privacy	PrivacySupports four block area block
Exposure Contro	Automatic
White Balance	Automatic
Day and night function	With IR-CUT
IR Length	40m
Lens	4mm,6mm,8mm
Detection and alarm	E-mail alerts, alarm client
Ethernet	10/100M Ethernet, RJ45 port
Network protocol	Standard HTTP, TCP / IP, ICMP.RTSP, RTP, UDP, RTCP, SMTP,FTP, DHCP, DNS, PPPO
Network transmission	P2P penetrate automatic forwarding
Power Supply	DC12V±10%
Working Environment	-10°C~+60°C, Less than 90% RH

Safe operation:

Be sure of power supply at DC12V±1V.
     Connect cables according to instruction,wrong con nection may
        Cause malfunction and/or damage tothe cam era.
     do not allow the camera to be subjected tostrong impacts or
        shocks the camera could be damaged by improper handing or storage
     Do not install at extreme warm or cold place.
        (Recommended operation:-10ºC-50ºC)
