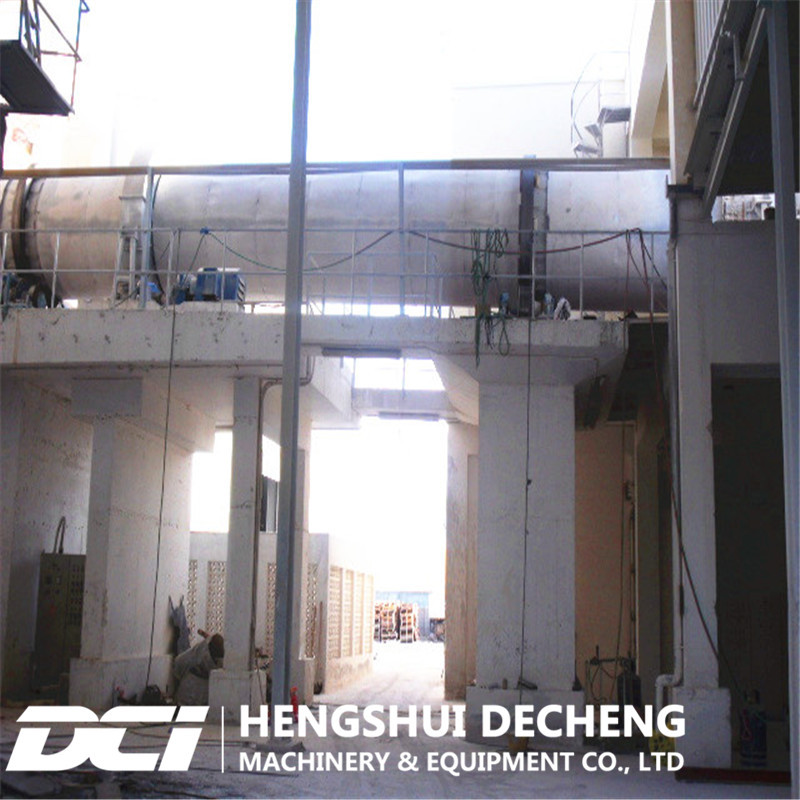

Gypsum Board and Gyspum Powder Production Line

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Sets)	Unit Price
1.0	US $ 300000.0-2000000.0/ Set

Price:$300000.0 - $2000000.0 / Set

Trade Terms: FOB, CFR, CIF, DAT, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P, Western Union

Price Valid Time:From Mar 04, 2014 To Aug 20, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:GP039

Certification:ISO, CE, SGS

Export Markets:North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:DCI

Packing:Seaworthy Packing

Standard:ISO9001

Origin:China

HS Code:847480901

Production Capacity:3 Sets

Product Description

Description of gypsum board and gyspum powder production line:

1. Annual output:
2million to 30 million sqm(based on thickness of 9.5mm gypsum board)

2. Working time: 24hours/day and 300 working days/year

3. Raw material: Gypsum powder, shielding paper, modified starch, foaming agent, glue

4. Fuel: Natural gas, diesel, heavy oil or coal

5. Product quality and specification:
1) The product is in compliance with National Standard GB/T9775-2008
2) Product specification:
Length: 2400mm~3600mm
Width: 1200mm or 1220mm
Thickness: 8mm-20mm

6. Main process:
1)Raw material blending;
2)Shaping;
3)Wet board/panel conveying;
4)Drying;
5)Dry board/panel conveying;
6)Finished product stacking and storage.

7. Main technology:
The production line adopts special designed hot air stove heating system

8. Annual consumption of raw materials:
Gypsum powder: 102000mt/year
Shielding paper: 6750mt/year
Modified starch: 600mt/year
Foaming agent: 120mt/year
Glue: 75mt/year

Gypsum Board and Gyspum Powder Production Line
