GSM GPRS GPS Vehicle GPS Tracking System Support Fuel Collector and GPS Navigation (OX-ET-801B)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (sample)	Unit Price
1.0	US $ 135/ Piece

Price:US $135.0 / Piece

Trade Terms: EXW

Payment Terms: L/C, T/T, Paypal, Money Gram, Western Union

Price Valid Time:From Jul 25, 2014 To Oct 25, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OX-ET-801B

Type:GPS Tracker

Use:Automotive

Screen Size:4.3"

Certification:CE; FCC

Working Temperature:-30° C~+75° C

Weight:N. W 0.34kg

Sensitivity:Tracking -159dBm Cold St

Channels:20

Frequency:L1 1575.42MHz, C/a Code

Warranty:1 Year

GPS Chip:Srf Star Iii Gsc3f/Lp-7979

Unit Size:122mm*79mm*44mm

Update Rate:1Hz

Export Markets:Global

Additional Info.

Trademark:OEM, ODM

Packing:Gift Box

Standard:CE, FCC; ROHS

Origin:China(Shenzhen)

Production Capacity:5000PCS/Month

Product Description

I) Product description

The tracking terminals of ET801B are powerful solution for tracking system. They have not only most of basic tracking functions but also many extended interface and plugs to connect with camera, handle set, LCD message screen, TTS (voice converter), fuel collector, temperature sensor, navigation screens, LED display banner and so on.

Functions:

1) GSM/GPRS 900/1800 or 850/1900 MHz
2) Remote positioning and monitoring
3) Tracking by time or distance
4) Listening in/ talking
5) Fuel control
6) SOS /Anti-steel/Over speed/Towing/parking/power alarm/ low voltage alarm
7) Area and fencing management
8) Mileage statistics
9) Inquiry SIM balance
10) Intelligent self-testing
11) Compatible existing car alarm

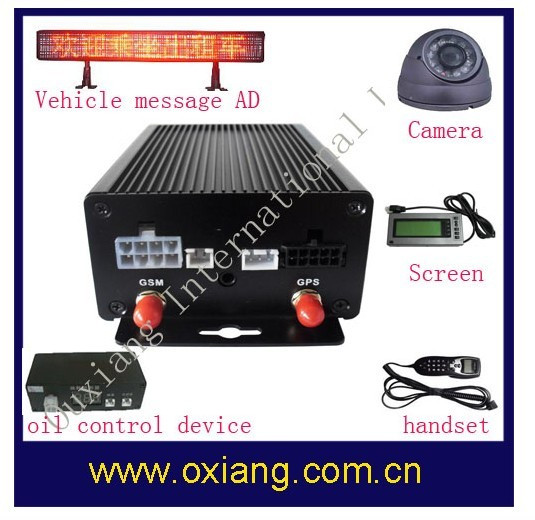

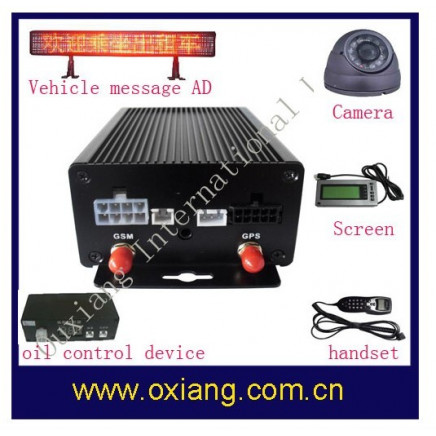

II) Basic functions & accesseries

Standard accesseries:

U GPS antenna,
U GSM antenna
U emergency button,
U microphone,
U vibration sensor,
U relay and harness.

II) Extension Accessories

1) Camera: ET-801 could work with 4 Max camera to take pictures.User could operate with tracking system software.Further more, when there's alarm , it will take the picture automatically and send back to server.

2) Handset : The handsetis a car telephone when it connected with 801B.Driver can sure it have a phone talk and sending orreceiving message.Further more,the people who in the central control room can contact with driver through it by SMS or call.

3)Fuel Sensor: Data Collector is used to get the digital information from the sensors which installed in the vehicle.And the 801B passed the information to the sever,then we can read the these from computer and store them. Now it widely used to fuel remaining and temperature.

4)Navigation Screens: Car Navigation plug is a wonderful part.It almost have all functions which
normal car navigation has.Further more,it connect with the ET801B has the function of phone talk /SMS.

5) LED bar:It is a very intelligent message - driver - system in car.It can be edit to any message the owner wants to display.It may be warm regards,a reminder or a love message,advertisement and so on.

System	Components	Application	Mode	Running cost
Solution I	Tracker, Cell phone	private cars	SMS
Solution II	Tracker, modem, pc, software	small groups about 50 vehciles	SMS
Solution III	Tracker, modem, pc, software	small groups about 50 vehciles	SMS/GPRS
Solution IV	Tracker, server, software	big group more than 1000, like TAXI, BUS	GPRS
Solution V	Tracker, server, software	large group, all kinds of vehciles	GPRS

	I	II(SA)	III(SB)	IV(CS)	V(BS)
System	Tracker cell phone	Tracker+PC+M ODEM	Tracker+PC+ MODEM	Tracker Internet server + client software	Tracker Internet sever
Application	signal car	group <50 vehicles	group 50 to 100 vehicles	group 500 to 5000	group 2000 to 8000
Locate	SMS feedback coordinate s and speed	Real-time on map	Real-time on map	Real-time on map	Real-time on map
Map	no	GOOGLE map/MAPINFO	GOOGLE map/MAPINF O	GOOGLE map	GOOGLE map/MAPINFO
Tracking	minutes	minutes	real-time	real-time	real-time
Remote control	cell phone	cell phone/pc	cell phone/pc	cell phone/pc	cell phone/pc
Data	SMS	SMS	SMS/GPRS	GPRS	GPRS
Listening in	Yes	Yes	Yes	Yes	Yes
Cut off	Yes	Yes	Yes	Yes	Yes
Anti-thief Alarm	Yes	Yes	Yes	Yes	Yes
SOS	Yes	Yes	Yes	Yes	Yes
Towing	Yes	Yes	Yes	Yes	Yes
Parking Time alert	Yes	Yes	Yes	Yes	Yes
Over speed	Yes	Yes	Yes	Yes	Yes
Power alarm	Yes	Yes	Yes	Yes	Yes
Empty /load	No	No	No	Yes	Yes
Management	No	Yes	Yes	Yes	Yes
Mileage	No	No	No	Yes	Yes
History Trace	No	No	No	Yes	Yes
GEO fence	No	No	No	Yes	Yes
