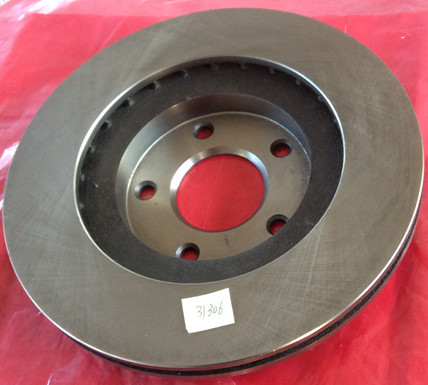

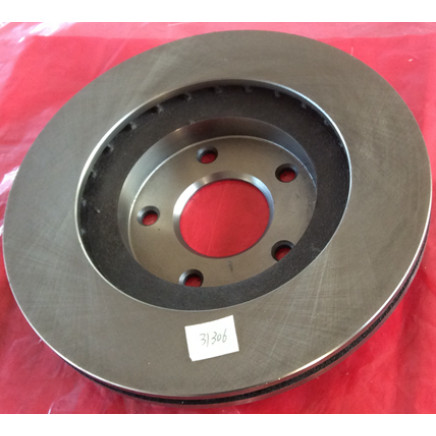

Gray Iron Ht250/G3000 Material Brakding Rotor, Disc Brake of 31306/40206-Al500/

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$8.0 - $40.0 / Piece

Min. Order (Pieces)	Unit Price
100.0	US $ 8/ Piece
200.0	US $ 40/ Piece

Trade Terms: FOB

Payment Terms: L/C, T/T

Price Valid Time:From Jun 26, 2015 To Sep 26, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:31306/40206-AL500

Type:Brake Discs

Material:Iron

Position:Front

Certification:ISO9001

Classification:Disc

Drum Brakes Classification:Brake Drum

Main Market:Global

Size:296mm*49.9mm

Hardness:170~210

Total Carbon:3.0%~3.3%

Silicon:1.9%~2.2%

Manganese:0.7%~1.2%

Phosphorus:0.12%Max

Sulfur:0.12%Max

Export Markets:Global

Additional Info.

Trademark:luzao

Packing:Plastic Bag and Carton

Standard:ISO

Origin:Zouping, Shandong China Mainland

HS Code:870830999

Production Capacity:300t/Month

Product Description

Specification:

1. Various automobile brake disc
2. HT250/G3000
3. High quality, stable performance and competitive price

About our products:
Brake Disc, braking disc, brake rotor, auto car brake

OE No.: 40206-AL500/ Aimco No.: 31306
Position: Front Axle
Height: 49.9mm
Outer Diameter: 296mm
Centering Hole Dia: 68mm
Pitch circle diameter: 114.3mm
Brake disc thickness: 24mm
Minimum thickness: 22mm
Number of holes: 5
Solid or vented: V
Packing: Neutral or Color, as customer's request
Delivery Detail: 20-30 days after order
Certificate: ISO9001
HS: 87083099
Brand name: Luzao
MOQ: 100~300 PCS
Warranty: 1~2years
Export Markets: Global/Worldwide
Brake disc Specifications:
1) Material: Gray iron HT250/G3000
2) Long service life & stable performance
3) 100% crucial dimension inspection and Balancing
4) 100% qualification
5) Low noise standard for casting is HT250, Standard for machining is SAE-j431

Key Specifications
Item	Brake Disc, braking disc,brake rotor,auto car brake
OE No.	40206-AL500
AIMCO NO.	31306
Position	Front axle
Size	296*49.9mm
Height	49.9mm
Outer Diameter	296mm
Centering Hole Dia	68mm
Pitch circle diameter	114.3mm
Brake disc thickness	24mm
Minimum thickness	22mm
Number of holes	5
Solid or vented	V
Hardness	170~210
Chemical composite	C:3.0-3.3% Si:1.9-2.2% Mn:0.7-1.2% P:<0.12% S<0.12%
Material	Gray iron HT250/G3000
Packing	Neutral package or color, as customer's request

Place of Origin	Zouping,Shandong,China Mainland
Payment terms	T/T or L/C
MOQ	100~300 PCS
Lead Time	20-30 days
Warranty	1~2years
Brand name	Luzao
Certificate	ISO 9001
HS Code	87083099
Export Markets	Global/Worldwide
