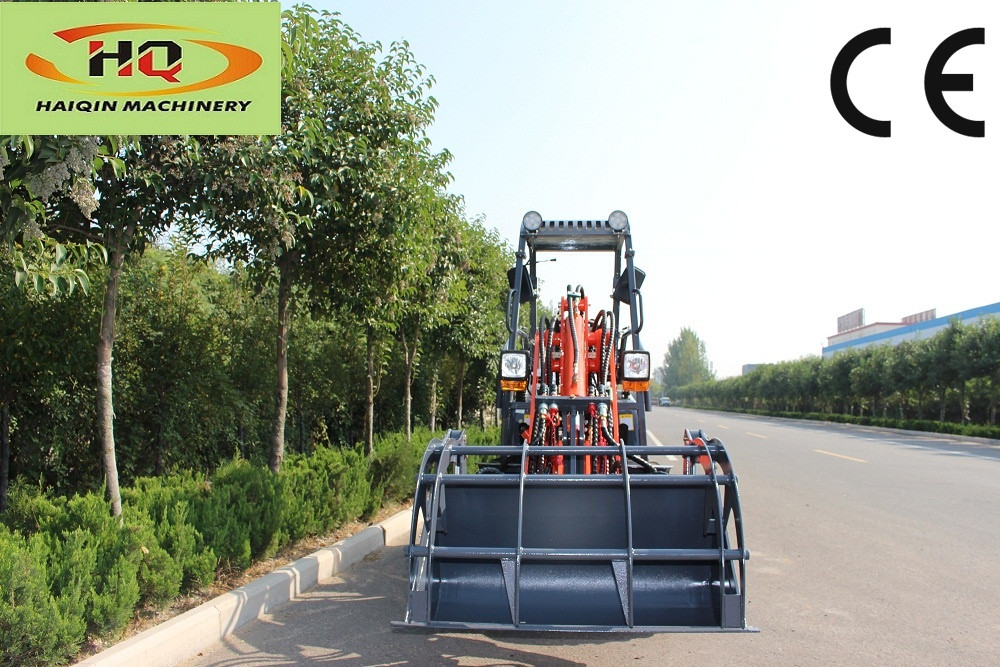

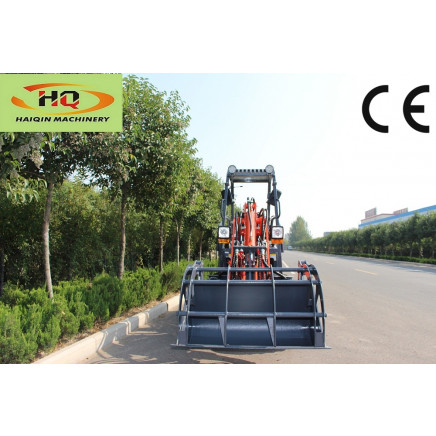

Grapple Bucket New Mini Loader with CE (HQ908)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 8000.0-12000.0/ Piece

Price:$8000.0 - $12000.0 / Piece

Trade Terms: FOB, CFR, CIF, FCA, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Oct 28, 2014 To Nov 09, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:HQ908

Type:Wheel Excavator

Usage:Earth Moving

Bucket:Shovel

Transmission:Hydraulic Transmission

Drive Type:Internal Combustion Drive

Bucket Capacity:0.5~1.0m³

Size:Small-Scale

Certification:CE, ISO9001: 2000, SGS

Condition:New

Product Name:Hq908 Mini Loader

Operating Weight:1490kg

Engine:Perkins or Kipor

Load Capacity:800kg

Widh:950mm / 1110mm

Export Markets:Global

Additional Info.

Trademark:Haiqin

Packing:3 Units in a 20 Container

Standard:CE, ISO, SGS

Origin:Shandong, China

HS Code:84295100

Production Capacity:8000 Units / Year

Product Description

1. Technical parameters of HQ908 Mini Loader:
(1) Perkins 403D-11 engine(Euro 3)-----Made in Britain.
(2)Propel pump, variable pump: Heron-----Made in Italy.
(3) Working pump, gear pump: SALAMI-----Made in Italy
(4)Operating valve, hydraulic control------Made in Italy
(5) Hydraulic steering unit: White-------Made in USA.
(6) Electric center unit: HED----------Made in USA.
(7) Enhanced working device.
(8) High-quality cooling system.
(9) Agricultural 26*12-12 wider tyre and standard bucket.
(10) Hydraulic Quick hitch

2, Standard configuration:
Original Perkins Euroiii Engine, Original Italy Hydrostatic System, American Steering Pump, E-Mark, Standard Bucket, Hydraulic Quick Hitch, High quality Seat, Adjustable Steering Wheel, 220 V Engine Heater, Lock for Lifting and Steering Cylinder, Tipping Cabin, Floating, Electric Joystick, Disc-Brake, LED Working Light, Easy damaged Spare Parts, English operation manual etc.

3, Optional configuration:
Cabin, Varta Anti-free Battery, E4 Light, Extra Hydraulic Line, Agricultural Tyre etc.

4, Haiqin Machinery is a professional manufacture and supplier of every kinds of mini loader, wheel loader, farm machinery, agricultural machinery in China. All of our machines get CE, SGS, Rops&Fops certificate. Now our machines can be found
Working in more than 30 countries, like Sweden, Germany, Finland, Norway, Denmark, Poland, Australia, Canada etc.
· Delivery time: 20-25 days after deposit.
· Payment term: T/T 30% in advance.
· Packing: 3 units in one 20 container. Triangle wood and 10mm wire fixed.
· Warranty time: 15 months, We have spare parts service center in Germany and Sweden.
· Min order: 1 unit

Contact Us--Service for you in 24 hours!

Engine	model	Perkins 403D-11 or Kipor KD388
	type	3 cylinder, watercooled
	rated power	18.5kw
	rated speed	2800r/min
	displacement	1.1L
	max.torque	67Nm
Performance	drive pump type	closed piston pump
	total weight	1490kg
	Tipping loads in bucket(kg)
	lift frame horizontal/machine stright	850
	lift frame horizontal/machine articulated	550
	rated bucket capacity	0.35M3 - 0.5 M3
	overall size	3650×950/1110×2250mm
	travel speed	0-12km/h
	max.breakout force	12Kn
	battery	43Ah
	rated voltage	12v
	steering type	articulated hydraulic steering
	drive system	hydrostatic motor
	drive type	4 wheel drive(4WD)
	transmission model	HST
	transmission type	CVT
	drive axle model	hydrostatic drive axle
	max.grade ability	20°
	optional tyre	7.00-12
	optional tyre	26×12.00-12 or 27*8.5-15
	fuel tank capacity	32L
	hydraulic oil tank capacity	40L
