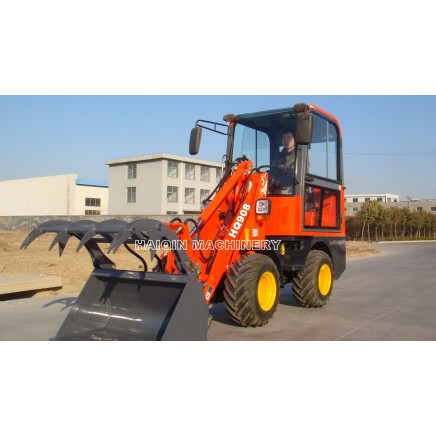

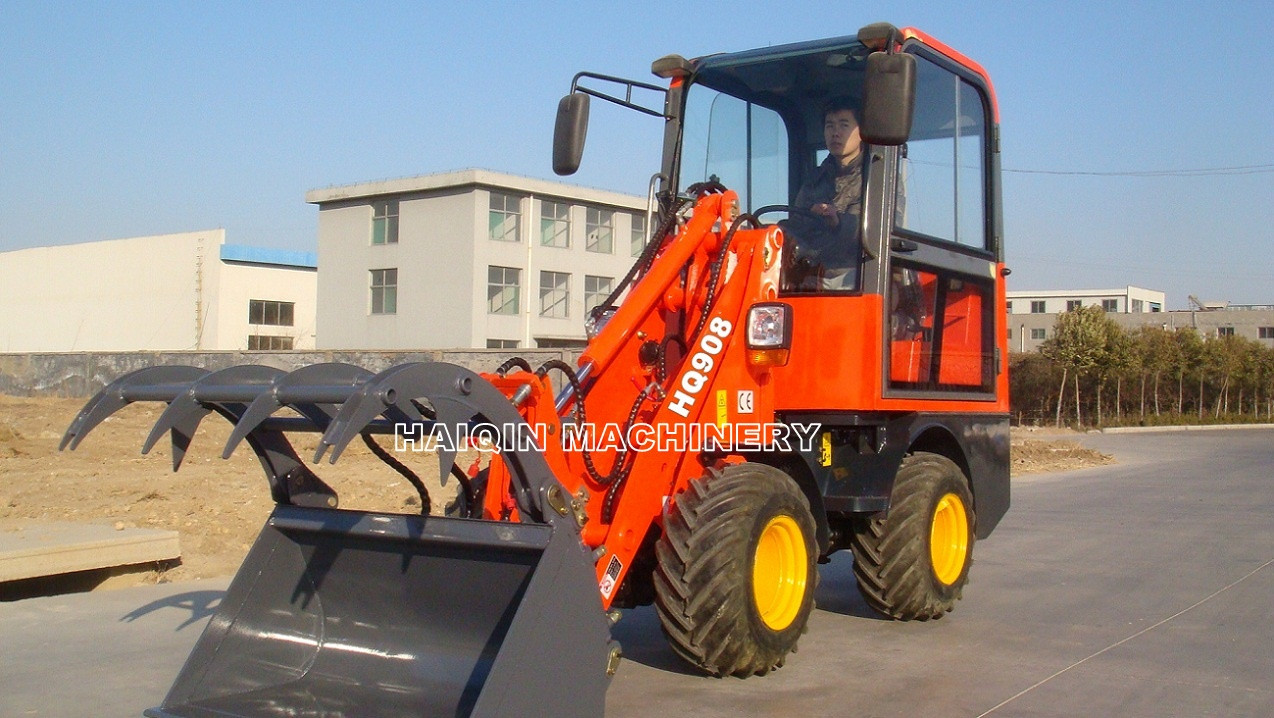

Grapple Bucket CE Mini Loader (HQ908) with Perkins Engine

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 8000.0-12000.0/ Piece

Price:$8000.0 - $12000.0 / Piece

Trade Terms: FOB, CFR, CIF, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Mar 10, 2015 To Nov 16, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:HQ908

Type:Small Loader

Usage:Universal Type

Scraper Type:Front End Shovel

Transmission:Hydraulic Transmission

Walking Mode:Wheeled

Load and Unload Method:Front Discharge

Engine Power:18.5kw

Certification:CE, ISO9001: 2000, SGS,Rops&Fops

Condition:New

Color:According to Customers Requirments

Engine:Perkins

Operating Weight:1490kg

Max Loading Weight:800kg

Width:950mm/1110mm

Export Markets:Global

Additional Info.

Trademark:Haiqin

Packing:3 or 4 Units in One 20 Feet Container

Standard:CE, ISO, SGS, Rops&Fops

Origin:Shandong, China

HS Code:84295100

Production Capacity:6000 Units / Year

Product Description

Advantage of HQ908 mini loader:

1, Engine: Perkins 403D-11.
Power system: Uses the Perkins 403D-11 engine, the Perkins engine independent fuel direct injection system, low fuel consumption, mechanical speed, low noise, strong power, low smoke emission, stable performance, good power to weight ratio, small volume, compact structure, beautiful appearance, convenient installation, easy maintenance, Euro three, EPA professional certification, more than 4000 global technology support service outlets.

2, The transmission system:
Drive pumps adopt Italy imports original closed variable plunger pump.

3, Control system:
Forward and backward with the handle shifting, the stepless speed change, the initial soft and smooth, no sense of shock; Working system adopts imported from Italy valve, a floating (float) function, easy operation, sensitive.

4. American Eston Pump

5. Farm or Garden multi-function use easily

6. With Agricultural Tyre

Engine	model	Perkins 403D-11
	type	3 cylinder, watercooled
	rated power	18.5kw
	rated speed	2800r/min
	displacement	1.1L
	max.torque	67Nm
Performance	drive pump type	closed piston pump
	total weight	1490kg
	Tipping loads in bucket(kg)
	lift frame horizontal/machine stright	850
	lift frame horizontal/machine articulated	550
	rated bucket capacity	0.35M3 - 0.5 M3
	overall size	3650×950/1110×2250mm
	travel speed	0-12km/h
	max.breakout force	12Kn
	battery	43Ah
	rated voltage	12v
	steering type	articulated hydraulic steering
	drive system	hydrostatic motor
	drive type	4 wheel drive(4WD)
	transmission model	HST
	transmission type	CVT
	drive axle model	hydrostatic drive axle
	max.grade ability	20°
	optional tyre	7.00-12
	optional tyre	26×12.00-12 or 27*8.5-15
	fuel tank capacity	32L
	hydraulic oil tank capacity	40L
