GPS Vehicle Tracking System (VT310N)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$61.0 - $72.0 / Set

Min. Order (Sets)	Unit Price
1.0	US $ 72/ Set
100.0	US $ 61/ Set

Trade Terms: FOB

Payment Terms: T/T, Paypal, Western Union

Price Valid Time:From May 16, 2014 To Aug 16, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:VT310N

Type:GPS Tracker

Use:Automotive

Export Markets:Global

Additional Info.

Trademark:Neutral

Packing:Neutral Color Box

Standard:Quad-band

Origin:China

Production Capacity:10, 000/Month

Product Description

VT310N is a professional level GPS vehicle tracker focus on positioning and vehicle security. VT310N can support detecting engine off/on, controlling door/windows/engine, can equip fuel consumption detection, temperature detection, geo-fencing, SOS alert, over speed alert, with build-in motion sensor for power saving, with build-in memory to store GPS position info when no GPS signal and resend automatically when GPS signal recover. It has abundant ports for additional applications and tracking solutions especially suitable for fleet management.

Functions & Features:
1. Tracking via SMS or GPRS (TCP/UDP)
2. Current location report
3. Get actual address name via SMS or website
4. Get position GoogleMap link via SMS
5. Tracking by distance or time interval
6. Data logger function with 4MB memory.
7. Built-in motion sensor for power saving
8. SOS panic button
9. Geo-fencing control
10. Internal backup battery
11. Over-Speed alert
12. Suddenly acceleration/brake alert
13. Engine cut-off to stop the car in safe condition
14. Monitoring voice(optional)
15. Alert when VT310N enters/exits GPS blind area
16. Alert when VT310N is power failure
17. I/O: 5 digital inputs, 2 analog inputs, and 5 outputs
18. Mileage report
19. Monitor fuel consumption for Fleet management(optional)
20. Monitor temperature(optional)

Application:
Suit for Vehicle security / Fleet management

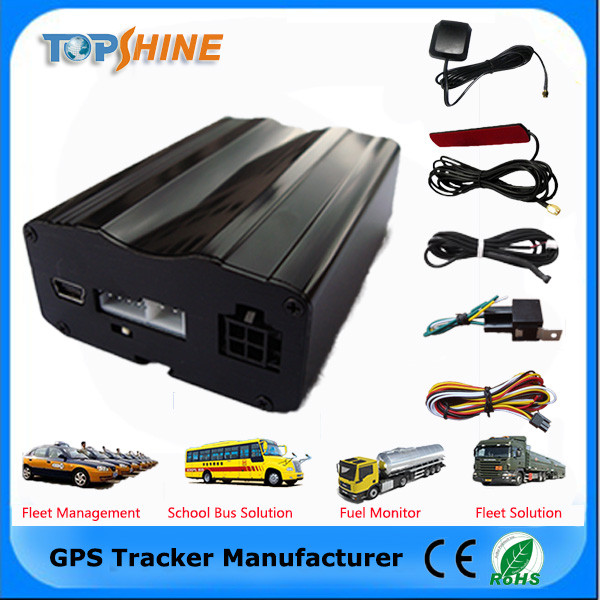

Complete Set:
Standard Package:
Main unit
GSM antenna
GPS antenna
Wire harness
Relay

Optional Accessories:
Special USB cable
Fuel sensor
Microphone
Active RFID kit
Passive RFID kit

Technical Parameters:
Power Supply	+9V - +35V / 1.5A
Backup Battery	850mAh
Dimension	104mm x 62mm x 24mm
Installation Dimension	104mm x 83mm x 24mm
Weight	150g
Operating temperature	-20° to 65° C
Humidity	5% to 95% Non-condensing
Frequency	GSM 900/1800/1900Mhz or GSM 850/900/1800/1900Mhz
GPS Module	latest GPS SIRF-Star III chipset
GPS Sensitivity	-158Db
GPS Frequency	L1, 1575.42 MHz
C/A Code	1.023 MHz chip rate
Channels	20 channel all-in-view tracking
Position Accuracy	10 meters, 2D RMS
Velocity Accuracy	0.1 m/s
Time Accuracy	1 us synchronized to GPS time
Default datum	WGS-84
Reacquisition	0.1 sec., average
Hot start	1 sec., average
Warm start	38 sec., average
Cold start	42 sec., average
Altitude Limit	18,000 meters (60,000 feet) max.
Velocity Limit	515 meters/second (1000 knots) max.
LED	2 LED lights to show GPS/GSM working status.
Flash Memory	4MB
Interface	5 digital inputs, 3 negative and 2 positive triggering; 2 analog inputs; 5 outputs.

Packing Measures:
Neutral	Dimension (mm)	Weight (KG)	Capacity
Box	225x160x55	0.65	1 set
Carton	470x340x310	14	20 sets
