GPS Tracking Unit with Remotely Stop Car, 2MB Memory Card, Sos Panic Button, OEM/ODM Supported, CE/RoHS

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF

Payment Terms:T/T, Paypal, Western Union

Trademark:Topshine (supported OEM/ODM)

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:VT200

Type:GPS Tracker

Use:Automotive

Size:75*54*25mm

Weight:123G

Input Voltage:DC 9V~36V/1.5A

GPS Chip:Lastest Sirf-Stariiichipset

Operating Temperature:5%~95%

GPS Sensitivity:-159dB

Positioning Accuracy:10 Meters,2d RMS

Export Markets:Global

Additional Info.

Trademark:Topshine (supported OEM/ODM)

Packing:Neutal Color or White Box 22*16.5*5.5cm

Standard:CE, RoHS

Origin:Guangzhou, Guangdong

Production Capacity:10, 000sets/Per Month

Product Description

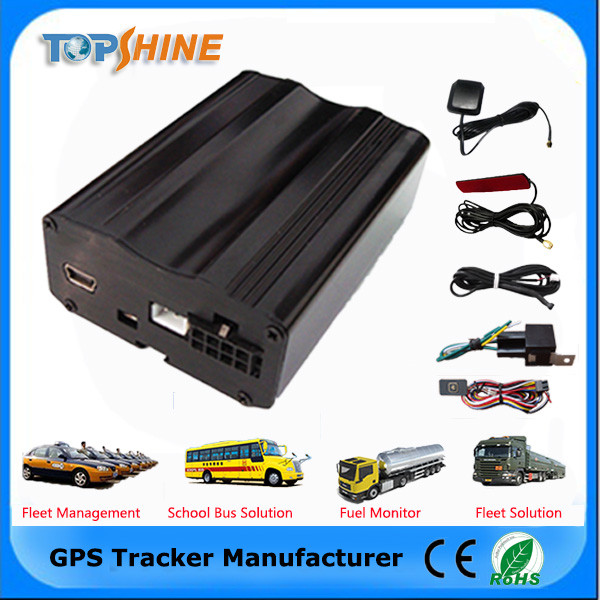

Mini GPS Tracker VT200

Product overview

VT200 is a GPS/GSM/GPRS tracking device which is specially developed and designed for vehicle real-time tracking and security. With superior GPS and GPRS modules, VT200 has good sensitivity and stable performance. Especially, VT200 is well designed to work with our web-based tracking system, which is suitable for a company to establish a tracking server to provide real-time tracking solutions to their customers or manage their fleet.

Applications

* Vehicle Real Time Tracking
* Car Security/Anti-Hijack
* Fleet Management

Product Features

* Tracking by SMS/GPRS (TCP/UDP)* Tracking by time/distance interval
* Real time tracking via the web-platform
* Get position location via call/SMS
* Get location physical name via SMS & from the web-platform
* Google Map link for location via SMS, it shows your location on map via mobile phone
* SOS Panic button
* Mileage calculation with longitude and latitude via SMS; View mileage data via GPS web-based tracking centre system
* Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
* Built-in 2MB memory & position logging capacity up to 10, 000+waypoints even no GPRS signal
* Engine on/off detection
* Remote Engine cut off to stop the car in safe condition
* Built-in backup 650 mAh battery
* Wiretapping/remote listening
* Crash alarm (optional)
* Can equip with RFID kit for driver identification and auto Arm/Disarm functions (movement/towed alert, ignition alert, auto cut off engine etc) (Optional)
* I/O: 2 Inputs, 2 Outputs, 1 Analog Input
* Analog input for Temperature & Fuel sensor detecting/monitoring (optional)
* More Alarm functions:
Over speed alert
Geo-fence alert
Power failure/low power alert
SOS alert

Items	Specifications
Dimension	755425mm
Weight	123g
Input voltage	DC 9V~24V/1.5A
Back-up Battery	650mAh/3.7V
Power Consumption	65mA standby current
Operating Temperature	-20°C~55°C
Humidity	5%~95%
Battery Work Time	33 hours in power-saving and 8 hours in normal mode
LED	2 LED lights to show GPS, GSM status
Button	1 SOS and 1 power on/off
Microphone	Default
Memory	2M Byte
Sensor	Motion sensor
GSM Frequency	GSM 850/900/1800/1900MHz
GPS Chip	Latest GPS SIRF-Star III Chipset
GPS Sensitivity	-159dB
Positioning Accuracy	10meters, 2D RMS
I/O	2 Input1 Analog Input Detection 2 Output 1 USB prot
