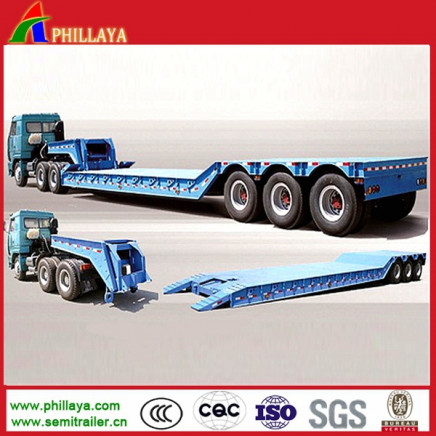

Gooseneck Detachable Low Bed Front Loading Hydraulic Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 135000.0-193000.0/ Piece

Price:$135000.0 - $193000.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Jul 23, 2015 To Dec 31, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:PLY9425CXX

Type:Semi Trailer

Load Capacity:120-500tons

Certification:ISO9001, CCC, ISO/TS16949, SGS

Wheel Base:1310mm

Tread:1820mm

Grade:Medium Duty

Towing Pin Material:Carbon Steel

Impeller Type:10PCS

Hook Type:Double

Universal Joint Type:24V

Brake Pad Material:American

Towing Pin Type:Boltable

Towing Pin Diameter:2? and 3.5?

Differential Gear Type:Auto

Independent Suspension Type:Mechanic Suspenion

Connecting Type:Semi-trailer

Shape:Flatbed

Axle Number:Chooseable

Tire Number:Chooseable

Self-dumping:Not Self-dumping

ABS Anti-lock Braking System:ABS Anti-lock Braking System

Material:Steel

Condition:New

Color:by Clients? Needs

Paint:Anti-Rust

Logo:by Clients? Needs

Custom-Made:Available

Quality Standards:CCC ISO BV SGS

Place of Oringin:Qingdao Shandong

Trade Mark:Phillaya

Lead Time:15 Working Days

Guarantee Term:1 Year, Mainbeam Lifetime Promise

Production Ability:150 Units Per Month

Export Markets:Global

Additional Info.

Trademark:Phillaya

Packing:Containers, Bulk Ship, Road

Standard:CCC ISO

Origin:Shandong, China

HS Code:871639900

Production Capacity:150 Units Per Month

Product Description

Gooseneck Detachable Low Bed Front Loading Hydraulic Trailer

BRIEF INTRODUCTION TO OUR FACTORY

Phillaya international trading Co., Ltd, a special vehicle manufacturing corporation with the professional experience more than 15 years, certified by the Chinese government manufacture,Majored in semi trailer, special vehicle manufacture, our products are mainly exported to Philippine, Bangladesh, Thailand, Myanmar, Vietnam, Nigeria, Russia, Mongolia, Congo, Kenya, Tanzania, etc...More than 20 countries

Main Description on the 4+6 Hydraulic Gooseneck Modular Semi Trailer
Tech Parameter- Per 2 Rows Line-Axle Modular
Centerline Tare Weight	3.5T
Rated Capacity	45T
Suspension	Stroke hydraulic + / - 300 mm
Basic module width	3.000 mm
Angle of rotation axis	±55°
The control system	Integrated into the central frame
Air cylinders
Oil tank
Hydraulic system	Safety valves
Main beam Material	AH60,40Cr
Main Parts	Combinable heavy module 4 line-axles	Combinable heavy module 6 line-axles
Outside Dimension	6000mm3000mm1750+300mm	9000mm3000+300mm
Axles / Tires	8 axles / 32 Tires	12 axles / 48 Tires
Total Dimension	15000mm+3700mm+700mm 3000mm1750+300mm
Tire Size	215/75 R 17,5
Wheelbase	1500mm
Modules Connections	Sidebattle for different combinations. Axle units mounted on the frame by bolting
Equipment for Modular Combinations
Diesel Power Plant	22 KW
Hydraulic Pump	30 1/ min
Standard Shaft	3000mm long, flexible coupling ring, diameter 50 mm
Operating head	2 file combination
Wireless RemoteControl	Handheld operator panel / Transmitter - 1 piece
Hydraulic bolted connector	3 pcs
Braking system	Dual line braking system with automatic air brake and ABS
Operating panel	1 pc with leveling system
Alarm panel	2 pairs
Flashing light	2 pcs
Tool Box	1 set of standard tools
Hydraulic Gooseneck
Rated capacity	35T
Pin	3.5-inch swivel pin
Control system	Integrated dual-control system
Connectors	Hydraulic and pneumatic
Taps	3 - 4 pcs

SERVICE

1.3C&ISO Agreement, 1 Year Guarantee Term, Main-beam Lifetime Promise.
2. Small Order Can Be Accepted.
3. Any Color & Logo Available
4. The Product Dimension + Specifications Can Be Designed As Your Needs

DEALING PROCESS

1. Send us inquiries on your desired product / mdel through our contact information.
2. We shall reply you within 12 hours.
3. Negotiations on your needed configuration.
4. Configuration on the tech data.
5. Sign contract.
6.30% down payment or LC issuing.
7. Production
8. Manufacturig process updated news.
9. Production completement.
10. Shipment
11. Custom Clearance
12. A/S service for 1 year.

CONTACT:
MsJane Liu
Mob: +86 185 5320 5205
www.phillaya.com
Qingdao Phillaya International Co. Ltd
More Than 10 Years Manufacturing Experience, Factory Direct Sale
