Good Quality Wall Side Cargo Semi Trailer

More Views

Good Quality Wall Side Cargo Semi Trailer

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
2.0	US $ 14000/ Piece

Price:US $14000.0 / Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, Paypal, Money Gram, Western Union

Price Valid Time:From Feb 05, 2015 To Apr 04, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:FTW9900TD

Type:Axle

Towing Pin Material:Alloy Steel

Impeller Type:Rear Semi-open Type

Hook Type:Double

Universal Joint Type:Rigid Universal Joint

Brake Pad Material:Ceramic

Towing Pin Type:Mushroom Type

Towing Pin Diameter:90mm

Differential Gear Type:Anti-slip Type

Independent Suspension Type:Multi-link Type

Payload:60t

Item:Cargo Semi Trailer

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:JUPITER

Packing:Nude

Standard:CCC; ISO9001

Origin:China

HS Code:87163910

Production Capacity:500 Units/Month

Product Description

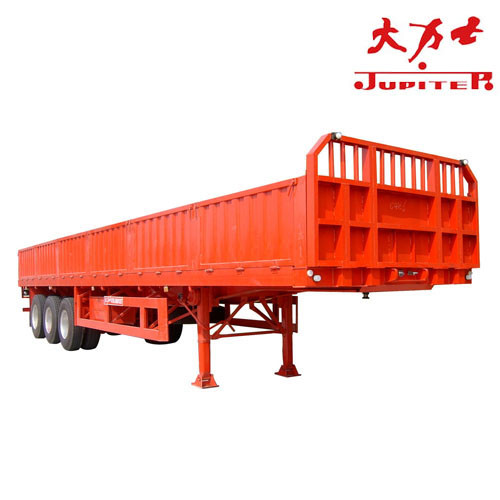

Good Quality Wall Side Cargo Semi Trailer

Trailer Type trailer
Dimension(LxWxH)(mm) 12410 x 2480 x 2690
Breast Dimension(LxWxH)(mm) 12150 x 2330 x 600
Axles number 3

Wheelbase 7200+1305+1305
Spring Leaf(Front/Rear) 7/ 7/ 7, 8/ 8/ 8
Quantity of TYRE 12

Wheel Span(mm) 1820/ 1820/ 1820
TYRE Size 10.00-20, 11.00-20, 11.00R20
MAX Total Mass(kg) 39700
Capacity Load(kg) 31000

Tare(kg) 8700
The MAX weight acting at the King pin(kg) 15750
Kingpin Setting/Rear Setting(mm) / 1600

Other specifications as below:

Brake System		ABS (optional )
Brake Air Chamber		Four double and two single chamber
Usage		Suitable for the mid/long distance transportation of the mid/heavy duty and bulk cargo.
Other Descriptions		The whole body adopts steel with good quality, and be manufactured by advanced skills and strict producing managerial processes. The frame is wearing structure, webs made from manganese plates from 400mm to 550mm high welded the upper and lower flangeplates together, and the beam runs through the longitudinal beam makes the two parts a very strong unit by automatic submerged arc welding. Frame using peen-forming processing.
Characteristics		The platform is step-wise, and the section of the two longitudinal beams appears a "I" shape makes the chassis a very strong unit with a high stiffness and intensity. The step-wise design ensures the stableness of the transportation.

Additional Information
