Good Quality Linking Spray Booth

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 set

Trade Terms:FOB

Payment Terms:T/T

Trademark:BZB

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:BZB-8300

Type:Powder Coating Booth

Certification:CE

Substrate:Steel

Brand:Bzb

Coating:Painting

Airflow Direction:Fully Undershot-type

Heating Mode:Diesel

Paint Mist Treatment:Dry-type

Condition:New

Color:as Require

Voltage:as Require

Export Markets:Global

Additional Info.

Trademark:BZB

Packing:Polyfoam and Carton

Standard:CE ISO9001: 2000

Origin:Guangzhou, China

HS Code:84198990

Production Capacity:500sets/Year

Product Description

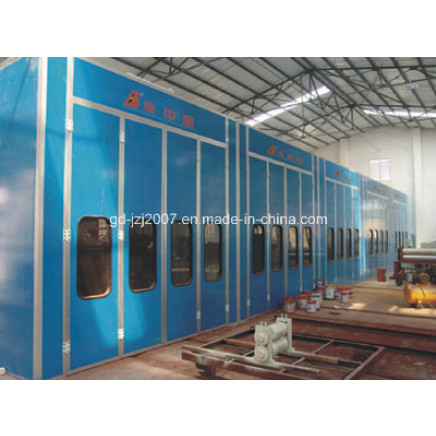

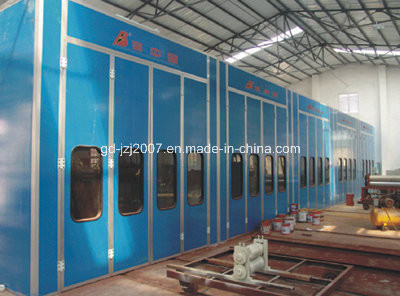

From BZB spray booth factory, Our engineers have over ten years experience in designing the paint booth. The below is a photos of linking spray booth for large garage shops. Please do not hestitate to contact us if you are interested.

BZB-8300 MODEL
External Size (mm)		7000x5560x3430
Internal Size (mm)		6900x4000x2800
Cabin System	1. Wallboard	EPS (epispastics polystyrene)Colorful Steel Skin Boards, 50mm Thick, Compound Construction, Anti-flame and Heat-Insulation, Handiwork door, Galvanied Steel Roof Panel
	4. Basement:	Two Grid& Three Embossed Plate, Galvanized Steel Sheet Construction, Two Ramps
Air Circulation System	Inlet Fan		Capacity: 12000m 3 /h
			Power: 4kw/set
			Quantity: 2set

	Air Volume: 24000m 3 /h; Air Speed: 0.35m/h
Air Purification system	Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 ? m. Ceiling Filter Capture Granules Bigger than 5? m. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. TSP? 1.4mg/m3
Heating System	1. Burner		Italy Riello Brand, G20 Diesel Burner, 180000Kcal/h.
	2. Heat Energy Converters		Stainless Steel, Argon Arc Welding. The Heat Exchange Rare 85%
	Max Temp: 80centi degree, Heating Time: 5-7min, Fuel Consumption: 4-6kg/vehicle, 10N Damp Motor
Lighting System	Ceiling Light: 32 pcs 36w Philips Lamp; Bottom Light: 16 pcs 36w Philips Lamp, 900Lux
Electric Controlling System	Micro Computer Programe Controlling, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm
