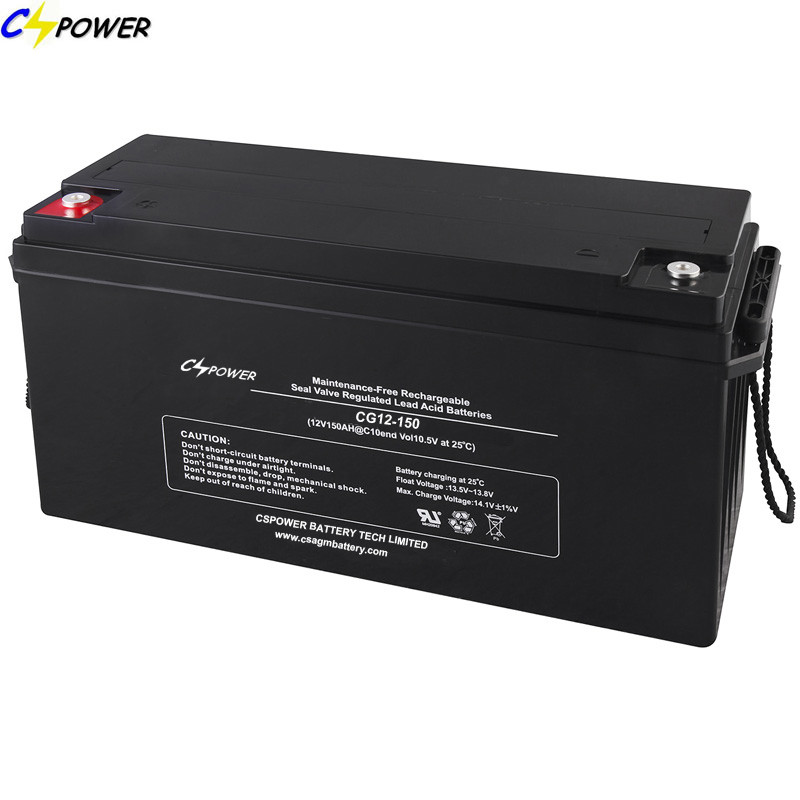

Solar Gel Battery for Solar Syterm 12V150ahPerformance CharacteristicsNominal Voltage --------------12VNumber of cell ------------------6Design Life -----------------------20 yearsWarranty---------------------------3 yearsDelivery time-------------------5~7 daysNominal Capacity 77oF(25oC)10 hour rate (15.0A, 10.8V) --------------150Ah5 hour rate (26.4A, 10.5V) ---------------132Ah1 hour rate (93A, 9.6V)-------------------- 93AhInternal ResistanceFully Charged battery 77oF(25oC) -----------5.8mOhmsSelf-Discharge2% of capacity declined per month at 20oC(average)Operating Temperature RangeDischarge: -20~60oCCharge: -10~60oCStorage: -20~60oCMax. Discharge Current 77oF(25oC)--------- 750A(5s)Short Circuit Current------------------------------- 2600ACharge Methods: Constant Voltage Charge 77oF(25oC)Cycle use -------------------------------------------14.4-14.7VMaximum charging current -------------------45.0ATemperature compensation: -20mV/oCStandby use --------------------------------13.5-13.8VCharacteristicsCSPOWER GEL battery is manufactured with special sheet separator and colloidal or foamed silica.The batteries use silica gel to immobilize the electrolyte inside the battery.The proven silica gel technology improves battery cycle life and performance at extremely cold ambient temperatures.The deep discharge cycles is increased by 50% as compared with the AGM battery.And it shows some distinctive advantages over flooded battery or AGM battery,Such as super thermal stability, high deep discharge capability, good recovery fromDeep discharge, even if the battery is left discharged for three days, it will recoverTo 100% of capacity. With the above-mentioned advantages, the gel battery hasLong service life, specially suitable for motive power applications, such as golf trailer,Sruubber, folklift, etc. The deep discharge cycles increased 50% as compared withThe AGM battery.Advantages:1. The colloid battery namely electrolyte liquid contains gaseous silicon dioxide, which shows a gel state characterized by no flow consistency, no leakage and no acid/ liquid dividing layer, allowing the polar plate perform consistently. The battery uses excess electrolytes to avoid drying up of the batter, overcharging, and heat loss. The battery can be put in multiple positions without worry of leakage.2. Sealed free maintenance design, non spillable and water proof.3. Longer usage life of cycle 15-20 years.4. Extremely low discharge rate.5. Extremely good discharge recovery ability6. Gas compound efficiency higher than 99%;7. Efficiently prevents heat loss.8. Adapts well in different temperature and charge and discharge conditions. It has a long cycle and trickle life even in cases of improper use.ApplicationSolar & Wind power systems,Fire & security systems,Uninterruptible power supplies;Golf cart, Electric vehicle;Electric powered bicycle and wheelchairs;Marine equipment;Communication equipment;Power tools;Telecommunication systems;Urgent light systems;Measurement systems, etc.
