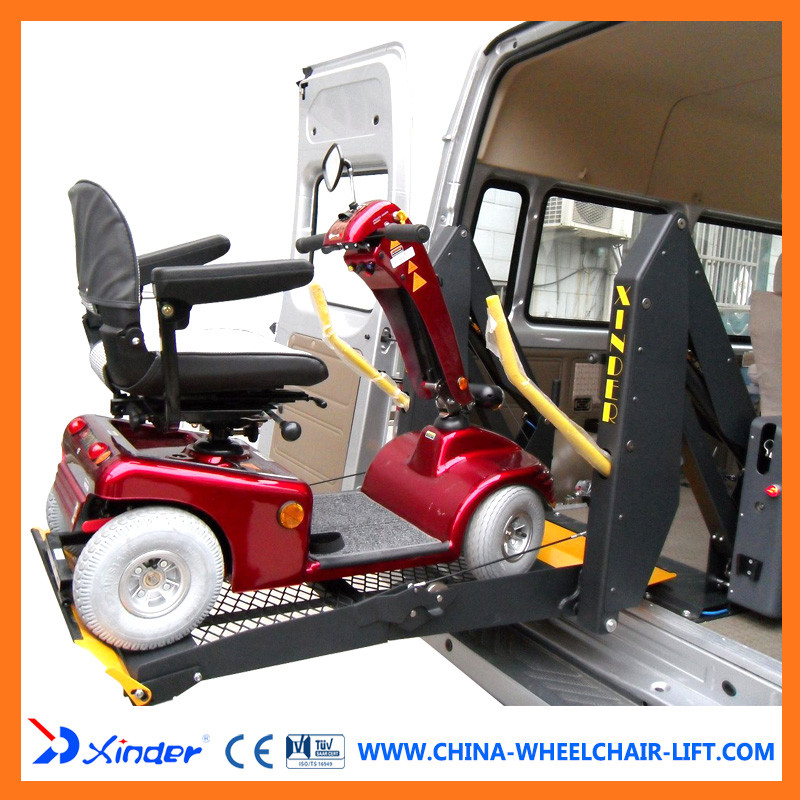

Good Quality Dual Arm Wheelchair Elevator Lift for Car

Good Quality Dual Arm Wheelchair Elevator Lift for Car

More Views

Good Quality Dual Arm Wheelchair Elevator Lift for Car

Be the first to review this product

More than 10 available

Availability: In stock

Price:
Min. order:1 Piece
Trade Terms:FOB, CIF, DDP, EXW
Payment Terms:T/T, Paypal, Western Union
Trademark:xinder
Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now
OR
Good Quality Dual Arm Wheelchair Elevator Lift for Car

Also available at

Login or Signup to View Links.
  • Description
  • Additional Information
  • Reviews
Description

Details

Basic Info.

Model NO.:WL-D
Type:One Cylinder Hydraulic Lift
Lifting Capacity:350kg
Driving Type:Hydraulic
Certification:CE
Driving Motor Number of Mechanical Lift:1
Condition:New
Brand:Xinder
Design:Single Post
Model:Wl-D-880s
Max Lifting Height:880mm
Safety Capacity:350 Kg
Plaftform Dimension:1150*720/1250*820mm
Certificate:CE
Volt:24V or 12V
Operation:Electric and Hydraulic Control
Own Weight:135kg
Packing Size:1240*600*1400mm
Gross Weight:185kg
Export Markets:Global

Additional Info.

Trademark:xinder
Packing:Wooden Case
Standard:1150*720/1250*820mm
Origin:China
HS Code:8428909090
Production Capacity:1000 Sets/Month

Product Description

ADVANTAGES

¨ Exclusive split-platform design allows clear access to the vehicle's interior
¨ Powerful hydraulic pump ensure smooth, stable operation for heavy wheelchairs and scooters
¨ All-steel frame features convenient handrails for increased comfort and security
¨ Stable, non-skid platform with automatic inboard and outboard rollstops accommodates most wheelchairs and scooters
¨ Pre-lubricated bearings at all major pivot points offer long-term durability
¨ High gloss, polyester powder coat finish resists corrosion
¨ Built in manual backup system

ModelWL-D- 880-1150WL-D- 880S-1150WL-D- 880U-1150WL-D- 880-1250WL-D- 880S-1250WL-D- 880U-1250
Platform Size  (A×B)720×1150720×1150720×1150820×1250820×1250820×1250
Overall Width (C)1135 mm1135 mm1135 mm1235 mm1235 mm1235 mm
Overall Height (D)1225 mm1225 mm1130 mm1225 mm1225 mm1130 mm
Overall Length (E)440 mm440 mm500 mm440 mm440 mm500 mm
Max Lifting Height(F)880 mm880 mm880 mm880 mm880 mm880 mm
Rated VoltageDC12/24VDC12/24VDC12/24VDC12/24VDC12/24VDC12/24V
Max Working Pressure14 MPa14 MPa14 MPa14 MPa14 MPa14 MPa
Loading Capacity350 Kg350 Kg350 Kg350 Kg350 Kg350 Kg
Own Weight135 Kg135 Kg135 Kg135 Kg135 Kg135 Kg
