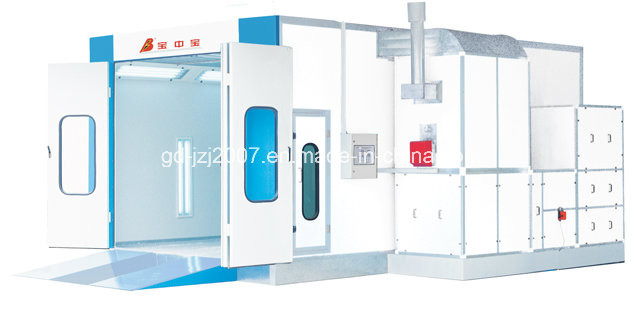

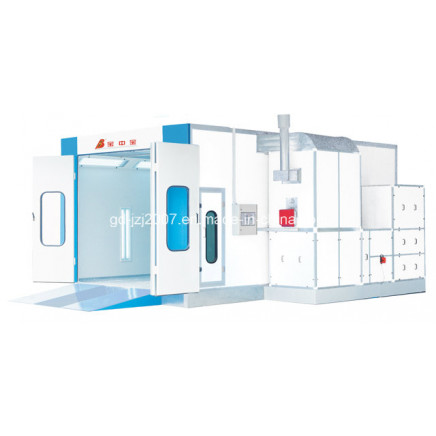

Good Quality Car Paint Booth

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 set

Trade Terms:FOB

Payment Terms:T/T

Trademark:BZB

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:BZB-8500

Type:Powder Coating Booth

Certification:CE

Substrate:Steel

Brand:Bzb

Coating:Painting

Airflow Direction:Fully Undershot-type

Heating Mode:Diesel

Paint Mist Treatment:Dry-type

Condition:New

Color:as Require

Voltage:as Require

Export Markets:Global

Additional Info.

Trademark:BZB

Packing:Polyfoam and Carton

Standard:CE ISO9001: 2000

Origin:Guangzhou, China

HS Code:84198990

Production Capacity:500sets/Year

Product Description

BZB8500

External Size (mm) 7040x5500x3450

Internal Size (mm) 6900x4000x2650

Cabin System 1. Wallboard EPS (epispastics polystyrene)Colorful Steel Skin Boards, 70mm Thick, Tongue & Groove Style, Compound Construction, Aluminum-alloy Frame, Anti-flame and Heat-Insulation

Full Grid, Adjustable Height, Galvanized Steel Sheet Construction, Three Embossed Steel Ramps.

Inhaling Ventilator Model: YDW 4.5L Exhaust Ventilator Model: YDW 5.6M

Blower capacity: 14000m3/h Blower capacity: 21000m3/h

Pressure: 800Pa Pressure: 800Pa

Rolling speed: 940rpm Rolling speed: 900rpm

Power: 4kw Power: 7.5kw

Quantity: 2 sets Quantity: 1set

Air Volume: 28000m3/h; Air Speed: 0.4m/s

Air Purification System Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 ?m. Ceiling Filter Capture Granules Bigger than 5?m. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. Air Pressure Balance Gauge, TSP?1.4mg/m

Heating System 1. Burner Italy Riello Brand, RG5S Diesel Burner, 260000Kcal/h, 20N Damp Motor

2. Heat Energy Converters Stainless Steel, Argon Arc Welding, The Heat Exchange Rate 85%

Max Temp: 80. C, Heating Time: 4-5min(20-60. C), Fuel Consumption: 4-5kg/vehicle

Light System Ceiling Light: 32 PCS 36w Philips Lamp; Bottom Light: 16 PCS 36w Philips Lamp, 1000 Lux

Electric controlling system Micro Computer Programe Controlling, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm

Environmental Conversation System Multi-Layer Fiberglasss Filter
