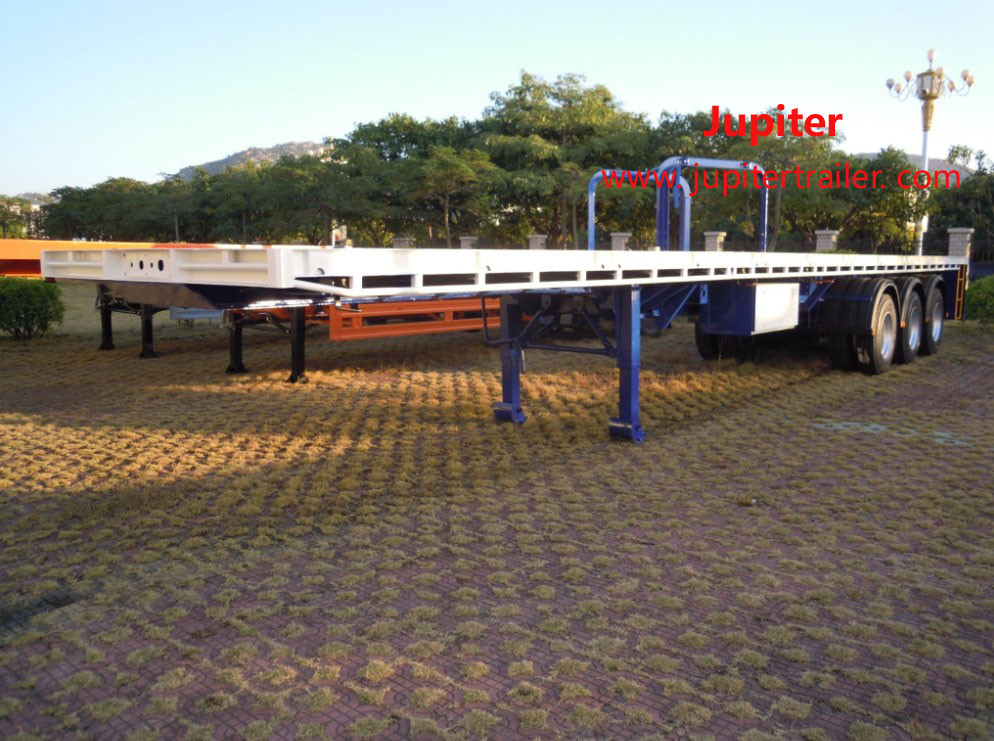

Good Quality 45ft to 68ft Extendable Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF

Payment Terms:L/C, T/T, Paypal, Money Gram, Western Union

Trademark:Jupiter

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:FTW2015

Type:Towing Pin

Towing Pin Material:Carbon Steel

Impeller Type:Closed Type

Hook Type:Single

Universal Joint Type:Flexible Universal Joint

Brake Pad Material:Semimetal

Towing Pin Type:Mushroom Type

Towing Pin Diameter:50mm

Differential Gear Type:Gear Type

Independent Suspension Type:Trailing Arm Type

Size:as Your Requirements

Colour:as Your Requirements

Use:Container Holding

Custom Made:Available

Export Markets:North America, South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:Jupiter

Packing:Nude

Standard:CE, SGS, ISO, GMP

Origin:China

HS Code:87163910

Production Capacity:20 Units/Month

Product Description

We are a subsidiary of RHE Indusrtrial Group Co., Ltd in China, which have been in semi trailer line more than 20 years, have win the great reputation both from the domestic and the international market.

1. High tensile steel for mainbeam
2. Light in tare weight
3. For carrying machinery, equipment or containers
4. We can both offer SKD and complete trailer
5. K-Hitch trailer accessories

Professional manufacturer, Good qualityand good service! Welcome to contact us!

No.	Assembly Name	Composition	Specifications	Optional
1	Chassis	Main beam	Q345Steel;The height of the beam is 500mm;
		Main beam	Upper plate;18mm;Middle plate is 12mm;Down plate is 20mm.
		Cross beam	14# channel steel
		Side beam	25# channel steel
		King Pin	2"or 3.5"traction pin	Optional JOST
		Dimensions(LWH)	1300030001100-1300mm
		Floor	4mm diamond steel plate
		Fence	1.5m steel plate 600mm height, fence 1000mm+20mm top
		Ladder	60T Heavy duty Mechanical ladder(optional hydraulic ladder
2	Suspension	Suspension type	Common mechanical	Air Suspension
2	Suspension	Steel Spring	2010/10/10
3	Running system	Alex	Axle number is 3 , Axle brand is Fuwa	Optional BPW
		Wheel Rim	9.0-22.5 steel wheel rim
		Tire	Spe:12R22.5; Number of Tire:12 pieces
4	Brake system	Brake Chamber	6 big chamber	WEBCO
		Brake Valve	KTL Brand/WEBCO
		Brake system	Dual Line Brake system	Optional ABS
5	Other	Tool box	2 set standard tool box
		Light	Tail lamp with turn signal ,brake light & reflector, side lamp etc.
		Painting	1 coat of anticorrosive prime, twice coats of final paint.
		Spare Tire Carriers	2 pieces
		Leading gear	28T Manual operating, Heavy duty landing gear	Optional JOST
6	Weight	Tare Weight	11700Kg
		Loading Capacity	As your request
		Axle weight load	13T	Optional 16T
