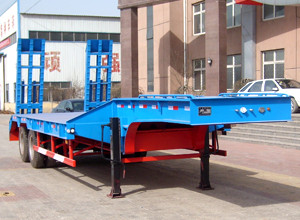

Good Quality 100 Ton Transport Heavy Machinery Low Bed Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:10 Pieces

Trade Terms:FOB, CFR, CIF

Payment Terms:L/C, T/T, Paypal, Money Gram, Western Union

Trademark:RHE

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:FTW9400TD

Type:Towing Pin

Towing Pin Material:Carbon Steel

Impeller Type:Closed Type

Hook Type:Single

Universal Joint Type:Flexible Universal Joint

Brake Pad Material:Ceramic

Towing Pin Type:Mushroom Type

Towing Pin Diameter:50mm

Differential Gear Type:Gear Type

Independent Suspension Type:Trailing Arm Type

Size:as Your Requirements

Colour:as Your Request

Use:Machine Carrier

Custom Made:Available

Export Markets:North America, South America, Southeast Asia, Africa, Oceania, Eastern Asia

Additional Info.

Trademark:RHE

Packing:Nude or as Customer?s Requirement

Standard:ISO

Origin:China

HS Code:87163910

Production Capacity:1000PCS Per Year

Product Description

Tare Weight
6800kg--9820kg

Loading Capacity
30T--60T

Axle Weight Load
13T/16T

Specification:

Axle number
Three

Axle specs.
FUWA or BPW Brand

Suspension
Common mechanical suspension

Wheel
11.00R22.5/12.00R22.5 Vacunnm tire /Triangle or Double Cone Brand

King Pin
JOST 2.0" or 3.5" traction pin

Dimensions
(LxWxH)
12450× 2500× 1490mm, 13000*2490*1450/1575/2770mm, 14850*2480*1770mm

13000X3000X1660mm, 16000X2800X1770mm

Support legs
28Tons (Tongyada Brand)/Jost D200T

Rim
8.25× 22.5/9.00*22.5 Vacunnm tire Zhengxing Brand

Wheelbase
7180/6680/6260+1310+1310mm,

Steel Spring
10/10/10 pieces per axles

Twist Locks
4 pieces(can be choose)

Tire:

Number of Tire
12pieces or can be choose freely

Spare Tire Carriers
2/4 pieces

Frame: (specs. And materials)

The material of
Main beam
The height of the beam is500mm, upper plate is 14mm, down plate is 16mm, middle plate is 8mm.

Platform plate
3mm Diamond Plate

Brake:

Brake
Kemi Brand of China

Brake Chamber
Four double and two single chamber( TKL brand )

ABS system
Without

Electrical:

Voltage
24V

Receptacle
7 ways(7 wire harness)

Light color:

Side marker lamp
Orange

Rear lamp
Red

Turn signal lamp
Orange

Professional manufactuuer more than 20 years' experience, good quality and service, welcome to contact us!

Loading weight	100, 000 kg
Departure angle	16
Axle brand	FUWA Brand axle
Axle number	3
Wheelbase	8, 580+1, 310+1, 310 mm
Suspension system	mechanical suspension
Steel spring	10/10/10/10 leaf spring suspension
Main beam	Beam height 500 mm
	Upper plate 16 mm
	Down plate 18 mm
	middle plate 10 mm
Platform plate	5 mm diamond plate
Tire type and quantity	Radial tire 11.00R20 x 12 units
Ladder	with ladder
Tration pin	2" or 3.5"
Landing gear	Standard 28T
Brake system	Dual line braking ystem
Brake air chamber	Two double and two single chamber
Spare wheel bracket	2 pieces
Painting	One coat anti-rust prime, two coats final paint
Light	Tail lamp with turn singal, brake light& reflector, side lamp, etc
