Fuwa Axles Gooseneck Heavy Duty Truck Lowbed Semi Trailer Air Suspension Stainless Steel

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Fuwa Axles Gooseneck Heavy Duty Truck Lowbed Semi Trailer Air Suspension Stainless Steel

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 13600/ Piece

Price:US $13600.0 / Piece

Trade Terms: FOB

Payment Terms: L/C, T/T

Price Valid Time:From Jul 27, 2015 To Oct 10, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:PLY9400TDP

Type:Truck Trailer

Load Capacity:80T

Certification:ISO9001, CCC, SGS

Wheel Base:7000-8000mm

Tread:1820mm

Grade:Heavy Duty

Towing Pin Material:Carbon Steel

Impeller Type:Closed Type

Hook Type:Double

Brake Pad Material:Ceramic

Towing Pin Type:Cross Type

Towing Pin Diameter:50mm

Differential Gear Type:Anti-slip Type

Independent Suspension Type:Cross Arm Type

Connecting Type:Semi-trailer

Shape:Low Bed Type

Axle Number:3

Tire Number:12

Self-dumping:Not Self-dumping

ABS Anti-lock Braking System:ABS Anti-lock Braking System

Material:Iron

Condition:New

Color & Logo:as Customized

Paint:Anti-Rust

Brand:Phillaya

Export Market:Global

Export Markets:Global

Additional Info.

Trademark:phillaya

Packing:Containers, Bulk Ship, Road

Standard:CCC ISO BV SGS

Origin:Shandong Province

HS Code:871639900

Production Capacity:150 Sets Per Month

Product Description

specifications:

FUWA axles gooseneck heavy duty truck lowbed semi trailer air suspension stainless steel

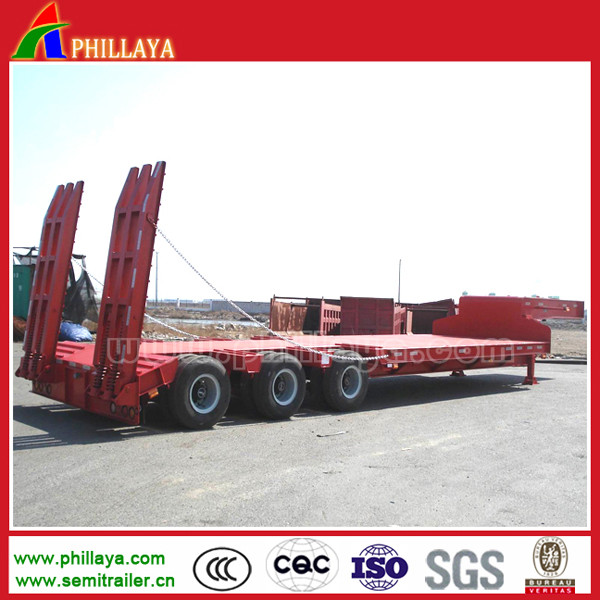

About Lowbed semi trailer:

The low bed semi trailer can be availed from us in excellent range by our valuable customers.the offered trailer is manufactured by utilizing supreme grade metal and other raw materials with the help of cutting edge technology under the supervision
of our professional team.
The provided trailer is ideal for transporting huge and heavy weight materials from one place to another in proper covered stores,to meet the extensive needs of the clients.
we offer this semi bed trailer in various specifications at affordable price.

3 axles lowbed semi trailer (30-80t series)
brand name	phillaya
model number	PLY9400TDP
place of origin	shangdong province, china
color	any color will be availacble
rated load	30-80 tons
tare weight	9900 kg
wheel base	1310 (mm)
tyre specifications	10.00r20
no. of the tyres	12
axle brand	13tonnage x fuwa brand
no. of the axles	3
pieces of leaf-spring	10
suspension	heavy duty leaf spring
front/rear overhang	1950 mm
floor	3mm management plate
tool box	1 box of standard tools
spare tire carrier	2 sets
main beam material	q345b/st52-3 manganese plates, automatic submerged arc, main-beam height 500mm, lower flange: 20mm upper flange: 20mm mid web: 12mm
brake air chamber	four double and two single chamber
outside dimensions (lxwxh)	13500x2500x1500 (mm) (other dimension optional)
electrical system	24v, 7core socket, lights according to european standards.
usage	for heavy duty machine, as transformer, crane, excavator transportation.
brake system	dual lines braking system with automatic air chambers
color and logo	depends on the buyer's requirement.
the traction pin	2' & 3.5' inter-changeable
pin height	according to the height of the tractor saddle.
