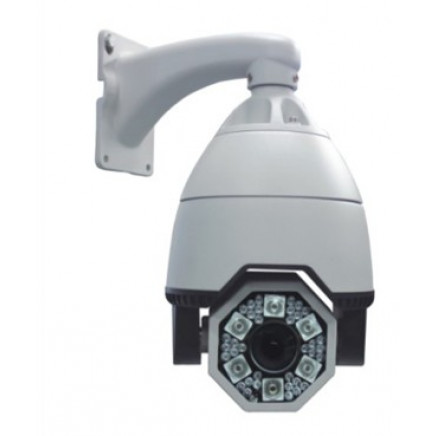

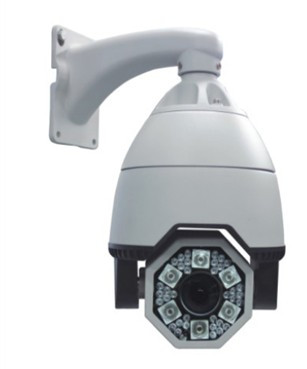

Full-Screen OSD High Speed PTZ Dome Camera (JED89-27-150)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:2 Pieces

Trade Terms:FOB, EXW

Payment Terms:T/T

Trademark:OEM/TOYANI

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:JED89-27-150

Technology:Pan / Tilt / Zoom

Style:Dome Camera

Type:CCTV Camera

Sensor:CCD

Horizontal Resolution:650tvl

Kind:Autofocus Lens

Feature:Waterproof / Weatherproof

Image Sensor:1/3" Sony CCD

Focus Length:4.8mm~105.6mm

Communications:Pelc D, Pelco P

OSD:Full -Screen Menu

Material:Aluminum Shell, Waterproof IP66

Export Markets:Global

Additional Info.

Trademark:OEM/TOYANI

Origin:China

HS Code:8525801390

Production Capacity:5000PCS / Week

Product Description

Feature:

> Horizontal 360 ° , continuous rotation, no blind spot, automatic tracking smart dome camera series.
> Double Case protect Camera device, continuing work temperature lower than 50. º C
> Use high quality components, high & minute sub-step into TV, long life conductive slip ring, high-quality belts, stable operation, high reliability.
> Adopted domestic the most advanced "zoom and optics sync" way control IR lamp, in effect solve "electric to rch" domino effect, original creation intelligent control IR lamp on and off, utilize IR light-source in reason
> Design special camera, IR lamp sub-depot separate system, no sphere case glisten, fogging malady
> Constant voltage constant current circuit design, ensure IR lamp work in long time, long life. IR lamp life lasting to above 20000hours
> Low Power, IR effective distance 150 meters
> Optional temperature control system, suitable for working in high or low temperature environment, Science, beautiful and fixedness structure.
> Triple lighting protection technology, effectively raising the speed dome mine and anti-jamming capability.

Model No.	JeD89-27-150
CCD	1/3 ? CCD SONY Effio
Signal mode	PAL/NTSC
Horizontal resolution	650TVL
Effective Pixel	PAL: 976(H)× 582(V) NTSC: 976(H)× 494(V)
Minimum illumination	Color to B/W, color 0.01Lux, B/W 0.001Lux
S/N radio	? 60dB
Backlight compensation	On/Off/ Strong light inhibition
White balance	Auto/Manual
Electronic shutter	PAL: 1/50~1/10000seconds NTSC: 1/60~1/12000seconds
Focus length	4.8mm~105.6mm
Optical focus	27X
Focus	Auto/manual, take high-performance DSP to realize complete digital and ultra-high speed focus function
presets	256
Pattern Track	4 groups, each can record 200 actions
Tour Track	Every group have 16 presets can join cruise, can setting the presets' residence time
Other Scan	Support horizontal scan , deuce area scan , scan random
Rotation Range	horizontal 360° unlimited rotation, vertical 180° , auto reversal
Rotation Speed	Horizontal and vertical: minimum 0.01° /s, maximum 300° /s (Can automatically adjust the multiples according to the Lens zoom)
Communications	PELCO D, PELCO P
Special function	AWB, MASK, DNR, Strong light inhibition
OSD	Full-screen menu
Temperature	Built-in
IR Lamp Distance	150m , Auto-Switch the IR distance according to the focus of camera or force to turn on/off the IR lamps through software
Power Supply	DC12V/4A
Mater	Aluminum shell , waterproof IP66
Work Environment	-10° C--70° C(Select temperature control accessories), < 95%RH
