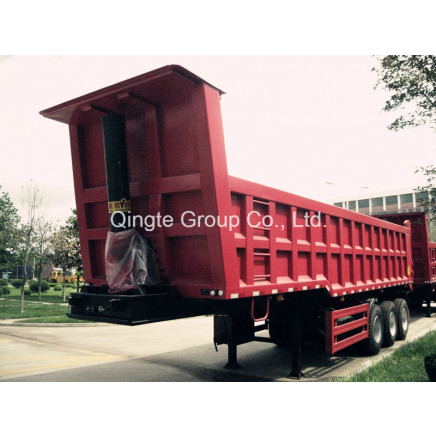

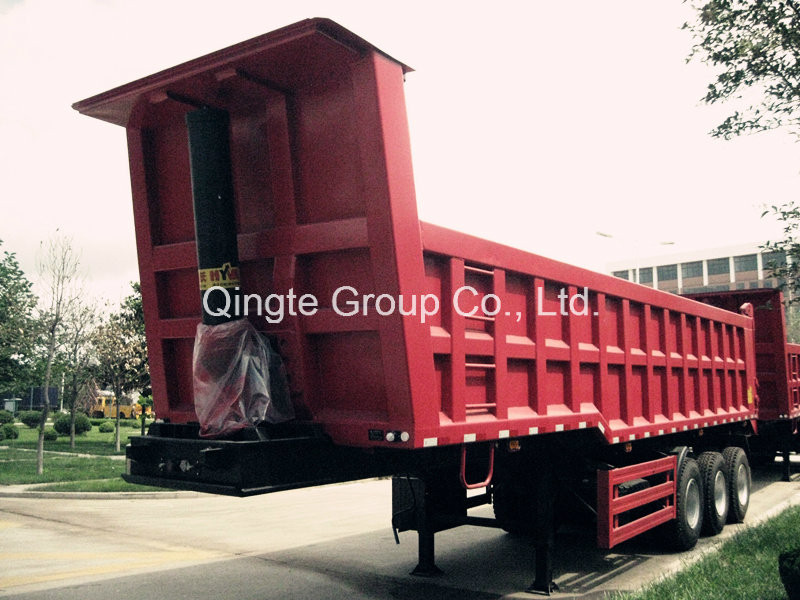

Front Lifting Tipper Truck, Dump Truck (QDT9400ZHX)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 30000.0-40000.0/ Piece

Price:$30000.0 - $40000.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, CPT, FCA, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Feb 05, 2015 To Apr 30, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QDT9400ZHX

Type:Semi-Trailer

Towing Pin Material:Alloy Steel

Impeller Type:Closed Type

Hook Type:Double

Universal Joint Type:Rigid Universal Joint

Brake Pad Material:Less Metal

Towing Pin Type:3.5"

Towing Pin Diameter:90mm

Differential Gear Type:Gear Type

Independent Suspension Type:Steel Saf Suspension

Inner Size of Box:9800X2500X1800

Capacity:80t

I-Beam Height:500mm

I-Beam:18/8/8/18 Dual Web Plate,

Box Plate Thickness:Bottom10mm, Side 8mm

Axles:Yuke 16t, 3PCS, Wheel Track 2000mm,

Tires:Double Coin 13r22.5, 13PCS

Tool Box:1PC 740mm

Suspension:Saf Type (Leaf Spring: 13leaves X14mm Thickness

Kingpin:3.5inch

Export Markets:Global

Additional Info.

Trademark:Qingte

Packing:Nude Packing

Standard:SGS, CE

Origin:Qingdao, Shandong, China

HS Code:8716

Production Capacity:20000/Year

Product Description

Specification:
Inner size of box: 9800x2500x1800, Capacity: 80Tones
I-beam height: 500mm,
I-beam: 18/8/8/18 dual web plate,
Box plate thickness: Bottom10mm, side 8mm
Axles: Yuke 16T, 3pcs, wheel track 2000mm,
Tires: Double Coin 13R22.5, 13pcs
Tool Box: 1pc 740mm
Spare tire bracket: 2pcs,
Brake Valves: WABCO,
Suspension: SAF type (Leaf spring: 13leaves x14mm thickness for each x100width),
ABS: WABCO,
Kingpin: 3.5inch,
Landing gear: SAF-Holland 30T single-move,
Hydraulic System: HYVA brand(cylinder size: 214-5-8130),

We can also make the trailer frame lightly with high strength steel T700, same capacity, but the tare weight of semi-trailer will be reduced about 1Ton. We can supply the completed semi-trailers in SKD type and load trailer frames, spares etc. By containers, which will help you to decrease the cost of sea freight and is convenient to the shipping time, and also we will instruct you to weld and assemble the semi-trailers. We can design and produce as your requirement.

Pls don't hesitate to contact with me if you need the semi-trailers (flatbed, skeleton, low-bed, drop side, stake, port special, bitumen tank, diesel tank. My contact information are as following:

Contact Person: Mr. Chen Feng(Manager of African Market)
Cellphone: +86-13964262856
